AV-1MCL Sanitary Butterfly Valves with Tri-clamp Ends, SS Lever Handle

Availability : In stock

Specification:

Reference No. : AV-1MC-SL

Sizes available: 1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max. working pressure: 145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″.

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

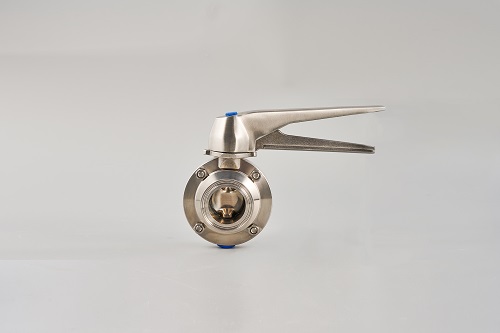

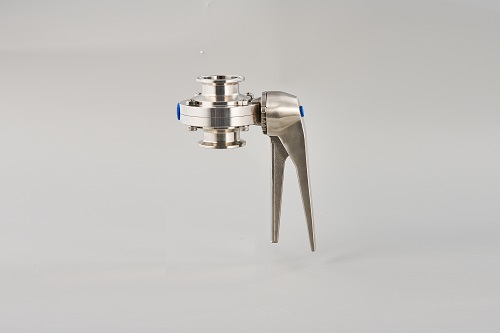

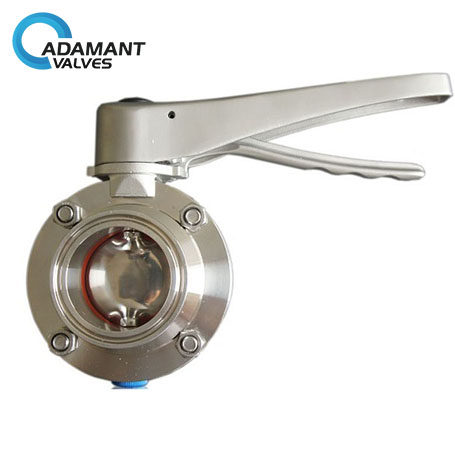

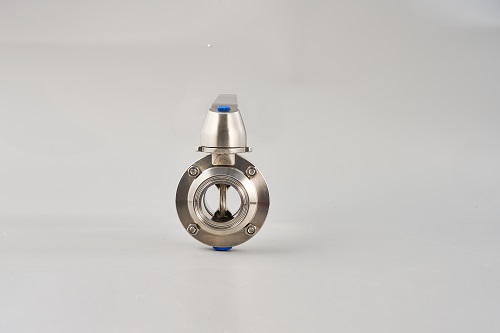

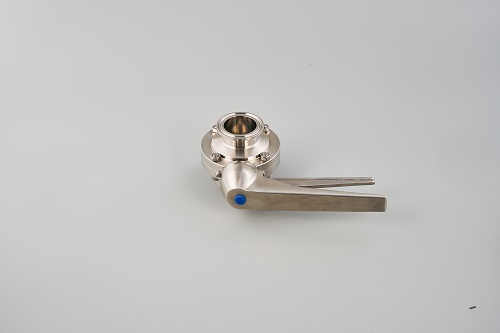

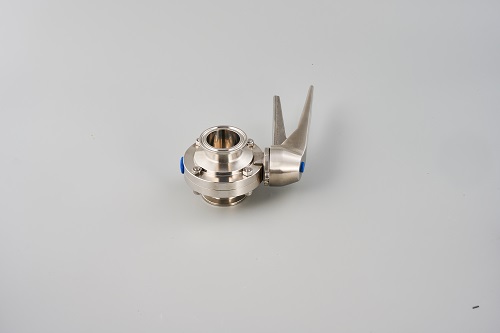

Operation: SS Lever Handle as the product photo shows

End connections: tri-clamp / tri-clamp.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

SKU: AV-1MCL Category:

Reference Price: $157-473

Sanitary Tri-clamp Butterfly Valves Application

AV-1MCL series is a manual type sanitary butterfly valve with tri-clamp / tri-clamp ends, which is widely used in process piping systems for isolation and control. AV-1MC-SL butterfly valve operates manually by SS Lever Handle.

Sanitary Tri-clamp Butterfly Valves Specification

Reference No. : AV-1MC-SL

Sizes available: 1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max. working pressure: 145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″.

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

Operation: SS Lever Handle as the product photo shows

End connections: Butt-welded/Tri-clamp/Thread/Flange

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.



Sanitary Tri-clamp Butterfly Valves Options

  • Valve body and disc material can be AISI 304 or AISI 316L, 304L, and 316 materials are available upon request.
  • The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
  • End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.
  • Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

4-position pull handle multi-position handle with plastic cover multi-position handle in pure stainless steel

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

stainless steel actuator aluminum actuator electric actuator

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

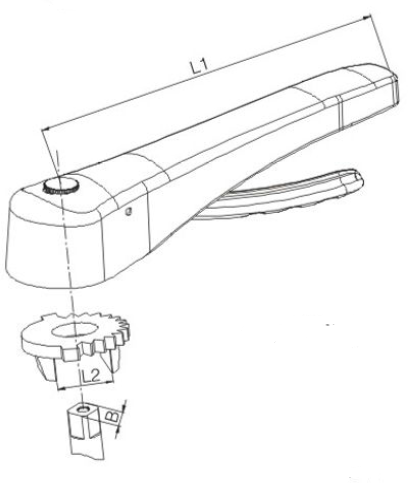

valve SIZE L1 L2 B
0.5″-1.5″ 164 20.2 8
2″-3″ 164 22.2 10
3.5″-4″ 164 22.2 11

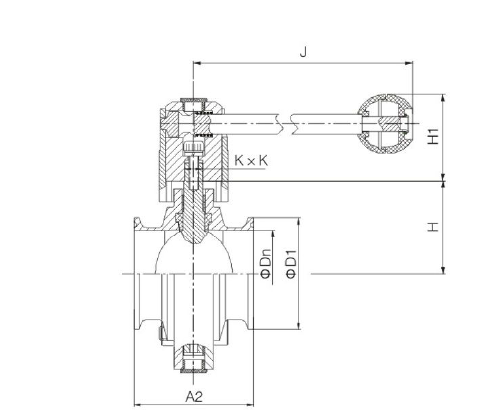

valve SIZE Dn D J H H1 H2 A2
1/2″ 9.7 25.4 126 40 43.5 172.5 66
3/4 16.1 25.4 126 40 43.5 172.5 66
1″ 224 50.5 126 40 43.5 172.5 66
1 1/4″ 28.8 50.5 126 40 43.5 172.5 66
1 1/2″ 35.1 50.5 126 44.5 43.5 1725 70
φ45 41 64 126 46.5 43.5 172.5 74
φ48 45 64 126 48.5 43.5 172.5 76
2″ 47.8 64 133 52.5 47.5 1725 76
φ57 53 77.5 144 54 47.5 172.5 76
2 1/2″ 59.5 77.5 144 59 47.5 172.5 80
3″ 72.2 91 144 65.5 47.5 1725 84
3.5″ 85 106 144 72 50 172.5 86
4″ large 97.6 119 144 79 50 172.5 104
4″small 97.6 119 160 81 50 172.5 104
108 104 119 160 82.5 50 172.5 106
114.3 110.3 130 160 82.5 52.5 248 106
133 127 144.5 257 94.5 52.5 248 122
6″ 146.8 167 257 110 52.5 285 146
159 153 183 257 110 52.5 285 146
8″ 197.6 217.4 397 145 52.5 306 166
219 211 233.5 397 145 52.5 306 166
10″ 247.2 268 397 174 52.5 306 167



Technical Parameters
Steel material Product wetted steel parts AISI 304 or 316L

(1.4301 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM All seal materials comply with FDA 21CFR117.2600
Options VMQ / Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)

VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature 150°C (302°F), Max. 20 min
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line, or others upon request.
