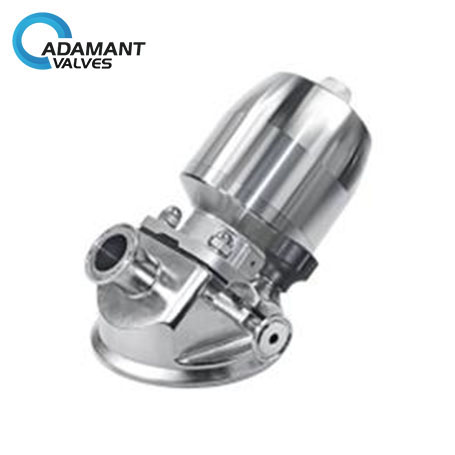

AV-10BP Sanitary Tank Bottom Diaphragm Valve

Availability : In stock

Technical Specification:

  •          Size:1”-4” DN25-DN100
  •          Max. pressure: 116psi (8bar)
  •          Control air pressure: 70-116 (5-8bar)
  •          Highest temperature range: Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
  •          Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
  •          Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  •          Pneumatic connection: G1/8″ (BSP)
  •          Finish: <32Ra (<0.8 µm) Other finishes available upon request
SKU: AV-10BP Category:

Sanitary Tank Bottom Diaphragm Valve Application

AV-10BP sanitary tank bottom valve is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries. This series includes tank bottom diaphragm valves, tank bottom seat valves, elbow-type tank bottom valves, etc.

Sanitary Tank Bottom Diaphragm Valve Materials

Product wetted steel parts: AISI 316L
Other steel parts: AISI 304

FDA Seal: EPDM+PTFE
Optional: EPDM/Silicone/FPM(Viton), all seals complying with FDA 21CFR177.2600.

Sanitary Tank Bottom Diaphragm Valve Design Standard:

  •          Tightly structured, the valve can be installed in a small space.
  •          Discharge materials without blind angle and residual leakage.
  •          Various standards: DIN, ISO/IDF, BS/RJT, etc.
  •          End connections: Sanitary Clamp, Flanged, or others upon request.
  •          Both manual and pneumatic operations available as customers require.
  •          Pneumatic head with or without C-top and position sensor.

Sanitary Tank Bottom Diaphragm Valve Technical Specification:

  •          Size:1”-4” DN25-DN100
  •          Max. pressure: 116psi (8bar)
  •          Control air pressure: 70-116 (5-8bar)
  •          Highest temperature range: Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
  •                                   Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
  •          Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  •          Pneumatic connection: G1/8″ (BSP)
  •          Finish: <32Ra (<0.8 µm) Other finishes available upon request



Technical Parameter

Steel Material Product wetted steel parts AISI 316L Provided with the material inspection report
Other steel parts AISI 304
Seal Material Standard EPDM +PTFE All seal materials comply with FDA 21CFR177.2600
Option EPDM, FPM, Silicone
Pressure Working Pressure 0-145psi (0-10bar)
Supply pressure for air actuator Min.- Max.: 5~8bar (70-116 PSI)
Temperature Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)

Plastic  actuator: -12° F to 266° F (-20°C to 130°C)

Surface Treatment Inside surface treatment Ra 16-32 µ in (0.4-0.8 µm)
Outside surface treatment Sandblast or mirror
Connection End connections: Sanitary Clamp, Flanged, or others upon request
Pneumatic head Normally closed (NC)-Air to open and spring to close;
Normally open (NO)-Air to close and spring to open;
Air to Air (AA)-Air to open, air to close.
