AV-21TB Threaded Brass Globe Valve

root — Mon, 25 Apr 2022 08:06:12 +0000

Threaded Brass Globe Valve Description

Threaded Brass Globe Valve is a flow regulating part in the pipeline system that pushes the valve disc to move vertically along the centerline of the valve seat through the rotation of the handwheel. During working hours, the friction between the disc and the sealing surface of the valve body is small, the opening and closing torque are small, and it is wear-resistant. The opening height is generally 1/4 of the diameter of the valve seat. There is only one sealing surface for easy maintenance, and the medium flows in one direction.

Threaded Brass Globe Valve Specification

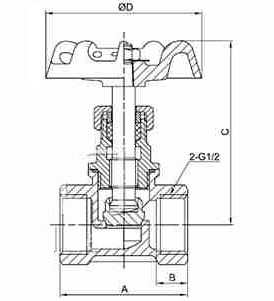

DN	A	B	C	D
15	45	11	65	54
20	51	11	71	60
25	64	15	82	72
32	75	16	95	80
40	82	17	109	100
50	100	19	122	110

Threaded Brass Globe Valve Applications

Threaded Brass Globe Valve is widely used in central air conditioning and HVAC systems.

AV-21FB Flanged Brass Globe Valve

root — Mon, 25 Apr 2022 07:58:26 +0000

Flanged Brass Globe Valve Description

Flanged Brass Globe Valve is a flow regulating part in the pipeline system that pushes the valve disc to move vertically along the centerline of the valve seat through the rotation of the handwheel. During working hours, the friction between the disc and the sealing surface of the valve body is small, the opening and closing torque are small, and it is wear-resistant. The opening height is generally 1/4 of the diameter of the valve seat. There is only one sealing surface for easy maintenance, and the medium flows in one direction.

Flanged Brass Globe Valve Specification

DN	A	E	C	D
15	79	90	81	78
20	89	100	85	78
25	93	110	98	108
32	110	134	125	108
40	132	140	136	108
50	172	153	173	146

Flanged Brass Globe Valve Applications

Flanged Brass Globe Valve is widely used in central air conditioning and HVAC systems.

AV-21DT Diaphragm Type Pneumatic Globe Valve with Positioner

root — Thu, 25 Nov 2021 07:36:22 +0000

Diaphragm Type Pneumatic Globe Valve with positioner Description

Diaphragm type pneumatic globe valves with positioner are pneumatic proportional valves, flow control design devices for the dairy and food processing industries, beverage production, pharmaceutical, and fine chemical industries. The most important applications are pressure control, flow control, liquid level, etc.

The pneumatic control valve is the position of the conical valve core. The valve (PD) that realizes flow regulation through the positioner control can also realize the self-adjusting position and flow (PID) function by using the intelligent process controller.

Diaphragm Type Pneumatic Globe Valve with positioner Specifications

Size:	DN25-DN100 to 1″-4″
Material:	ASTM304/316L, 1.4301/1.4404
Working temperature:	-10℃ to +120℃ (EPDM)
Working pressure:	10bar 145PSI
Compressed air:	4-7bar
Voltage:	24V DC ±10%
Analog signal input and output:	4…20 mA 0…10V
Certification:	3-A-53-06; PED-97/23/EC; FDA177.2600; EEX DII BT4

Diaphragm Type Pneumatic Globe Valve with positioner Applications

It is used for the dairy and food processing industries, beverage production, pharmaceutical, and fine chemical industries.

The post AV-21DT Diaphragm Type Pneumatic Globe Valve with Positioner appeared first on Adamant Valves.

AV-21FG Flanged Globe Valve

root — Fri, 03 Sep 2021 06:43:18 +0000

Flanged Globe Valve Description

Flange globe valve is a forced sealing valve, so when the valve is closed, pressure must be applied to the disc to force the sealing surface to not leak. When the medium enters the valve from below the disc, the resistance that the operating force needs to overcome is the friction force of the valve stem and the packing and the thrust generated by the pressure of the medium.

In recent years, since the emergence of self-sealing valves, the flow direction of the flanged globe valve has changed from above the valve disc to enter the valve cavity. At this time, under the action of medium pressure, the force of closing the valve is small, while the force of opening the valve is large. The diameter of the rod can be reduced accordingly. At the same time, under the action of the medium, this type of valve is also tighter.

Flanged Globe Valve Specifications

Size	1/2”-8”, DN15 – DN200
Nominal pressure	PN1.6-6.4, Class 150/300,10k/20k
Strength test pressure	PT1.5PN
High-pressure seal pressure test	1.1PN
Applicable temperature	-40 ~ 180 ℃
Material	CF8, CF8M

Flanged Globe Valve Applications

Flanged Globe Valve is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, and many other automated machinery and equipment. It featured water hammer protection and noise-free, reliable sealing performance.

The post AV-21FG Flanged Globe Valve appeared first on Adamant Valves.

AV-21MF Sanitary Manual Female Globe Valve

root — Fri, 03 Sep 2021 06:40:42 +0000

Sanitary Manual Female Globe Valve Description

A globe valve is a linear motion valve used to stop, start, and regulate fluid flow. The globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

Sanitary Manual Female Globe Valve Specifications

Size	1/2”-2”, DN8 – DN50
Nominal pressure	PN1 .6, 2.5, 4.0, 6.4 MPa
Strength test pressure	PT2.4, 3.8, 6.0, 9.6 MPa
High pressure seal pressure test	1.8,2.8,4.4,7.1MPa
Applicable temperature	-40 ~ 180 ℃
Material	CF8, CF8M

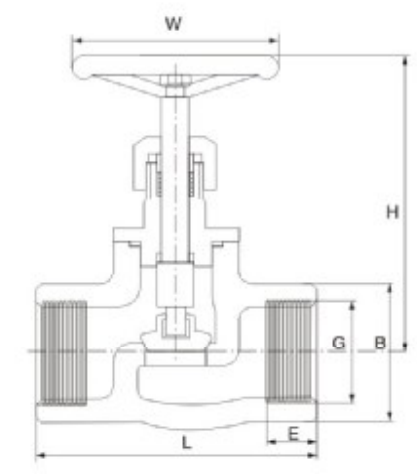

DN	G	L	E	B	H	W
8	1/4”	65/68	15	23	80	70
10	3/8”	65/68	15	26	80	70
15	1/2”	65/65	16	31	88	70
20	3/4”	70/75	18	38	95	70
25	1”	80/90	20	46	110	80
32	1	90/105	21.5	56	123	100
40	1	100/120	23	63	135	100
50	2”	120/140	24.5	76	150	100

Sanitary Manual Female Globe Valve Applications

Sanitary Manual Female Globe Valve is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, and many other automated machinery and equipment. It featured water hammer protection, noise-free, reliable sealing performance.

The post AV-21MF Sanitary Manual Female Globe Valve appeared first on Adamant Valves.

AV-21TG Three-Way Globe Valve With Tri-clamp Ends, Pneumatic Type

root — Thu, 13 May 2021 07:45:35 +0000

Three-way Globe Valve Description

Three-way Globe Valve is mainly used in flow regulation control and reversing valves. This valve is in contact with the medium only in stainless steel and PTFE, with a maximum temperature of 180 ° C and a pressure resistance of up to 20 bar. It can also be used in a vacuum environment. The valve body is designed according to the dead angle, the surface roughness can reach Ra0.4μm, and the valve core seal adopts the embedded design, so it can be used in a wide range of industries, such as pharmaceutical, food and beverage, brewing, chemical, and other industrial fields.

Three-way Globe Valve Specifications

Specifications: 1/2″-4″, DN10-DN80
Material: CF8/304, CF8M/316
Connection standard: thread, clamp, flange, BSP, BSP, NPT, DIN
Working pressure: 8bar (standard) 10bar (optional)
Working temperature: 120 ° C (standard) 180 ° C (optional)

Three-way Globe Valve Applications

Three-way Globe Valve can be used in a wide range of industries, such as pharmaceutical, food and beverage, brewing, chemical, and other industrial fields.

The post AV-21TG Three-Way Globe Valve With Tri-clamp Ends, Pneumatic Type appeared first on Adamant Valves.

AV-21YG High Performance Y Type Globe Valve with Insulation Jacket, Worm Gear Operator, Flanged

root — Thu, 02 Jul 2020 03:21:50 +0000

High-Performance Y Type Globe Valve Description:

The insulation jacket is welded between the two flanges of the valve, and two connection ports of the insulation jacket are provided on the side and bottom of the valve. The DC insulation globe valve is especially suitable for pipelines in the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing. It is used in the pipelines of the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing.

High-Performance Y Type Globe Valve Specifications:

Size	DN15-DN150
Working temperature	<550°C
Working pressure	0.6-6 Mpa
Body material	304/316L
Sealing material	PTFE
Connection	Flange

DN	L	D	D1	D2	D3	B1	f0	B	D6	3-G	Z-Φd	H	H1	D0
15	170	105	75	55	35	8	4	16	51	3/8	4-Φ14	250	262	120
20	190	115	85	65	42	8	4	16	58	3/8	4-Φ14	292	308	140
25	210	135	100	78	50	8	4	18	66	3/8	4-Φ18	340	375	160
32	230	145	110	85	60	8	4	18	76	1/2	4-Φ18	338	375	160
40	260	160	125	100	72	8	4	20	88	1/2	4-Φ18	360	386	160
50	300	180	145	120	94	8	4	22	110	1/2	8-Φ18	410	450	240
65	340	195	160	135	105	8	4	22	121	1/2	8-Φ18	440	485	240
80	380	230	190	160	128	11	4.5	24	150	1/2	8-Φ23	540	600	280
100	430	270	220	188	154	11	4.5	28	176	1/2	8-Φ25	560	625	320
125	490	300	250	218	182	11	4.5	30	204	1/2	8-Φ25	625	737	360
150	550	330	280	248	212	11	4.5	32	204	1/2	12-Φ25	720	790	360

High-Performance Y Type Globe Valve Options:

End connection can be butt-welded or sanitary tri-clamp, and others are available upon request.

High-Performance Y Type Globe Valve Applications:

Insulation globe valves are mainly used in petroleum, chemical, metallurgy, pharmaceutical, and other systems to transport high-viscosity media that will solidify at room temperature.

The post AV-21YG High Performance Y Type Globe Valve with Insulation Jacket, Worm Gear Operator, Flanged appeared first on Adamant Valves.

AV-21MG Sanitary Manual 2-Way Globe Valve With Welded End, Manual Type

root — Fri, 28 Feb 2020 03:30:28 +0000

Sanitary Manual 2-way Globe Valve Description

A sanitary globe valve is a linear motion valve used to stop, start, and regulate fluid flow. The sanitary globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

Sanitary Manual 2-way Globe Valve Specifications

Size	1/2”-3”, DN15 – DN80
Working temperature	130°C or 180°C
Working pressure	≤8 bar or ≤10 bar
Body material	CF8/304, CF8M/316
Sealing material	PTFE
Connection	Tri-Clamp, threaded, flange, welded
Finishing	Ra≤0.8 μm

D	J	L	H
25.4	87.2	130	275
31.8	114	140	295
38.1	114	150	295
50.8	138	175	360
63.5	138	210	386
76.2	138	210	390

Sanitary Manual 2-way Globe Valve Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T-type or L-type ball core to choose from

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double-acting—air to open, air to close

Sanitary Manual 2-way Globe Valve Applications

The stop valve is a general switch in the automatic control system. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, and many other automated machinery and equipment. It featured water hammer protection and noise-free, reliable sealing performance.

The post AV-21MG Sanitary Manual 2-Way Globe Valve With Welded End, Manual Type appeared first on Adamant Valves.

AV-21PG Sanitary Pneumatic 2-way Globe Valve With Tri-clamp End

root — Fri, 28 Feb 2020 03:01:16 +0000

Sanitary Pneumatic 2-way Globe Valve Description:

A globe valve is a linear motion valve used to stop, start, and regulate the fluid flow. The globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

Sanitary Pneumatic 2-way Globe Valve Specifications

Size	1/2”-3”, DN15 – DN80
Working temperature	130°C or 180°C
Working pressure	≤8 bar or ≤10 bar
Body material	CF8/304, CF8M/316
Sealing material	PTFE
Connection	Tri-Clamp, threaded, flange, welded
Finishing	Ra≤0.8 μm

D	D1	Q	L	H1
25.4	50.5	100	130	275
31.8	50.5	100	140	295
38.1	50.5	100	150	295
50.8	64	135	175	360
63.5	77.5	135	210	386
76.2	91	135	210	390

Sanitary Pneumatic 2-way Globe Valve Options:

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double-acting—air to open, air to close

Sanitary Pneumatic 2-way Globe Valve Applications

The stop valve is a general switch in the automatic control system. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment and many other automated machinery and equipment. It featured with water hammer protection, noise-free, reliable sealing performance.

The post AV-21PG Sanitary Pneumatic 2-way Globe Valve With Tri-clamp End appeared first on Adamant Valves.
