Size 1/4”-1”
Working temperature -10°C ~ 150°C
Working pressure 0-10 bar
Body material 316L
Sealing material PTFE
Connection Tri-Clamp
Finishing Ra≤1.6 μm (outside surface)

Ra≤0.8 μm (inside surface)

The post AV-21MG1 Sanitary Manual 4-way 1-port Plug Valve with Tri-clamp appeared first on Adamant Valves.

]]> Sanitary Manual 4-way 1-port Plug Valve Description

A plug valve is a closing piece or a plunger-shaped rotary valve. By rotating 90 degrees, the passage opening on the valve plug is communicated with or separated from the passage opening on the valve body to open or close. 4-Way Plug Valves are designed for throttling and diverting applications. The transfer style plug can be arranged to divert flow into a variety of flow combinations.

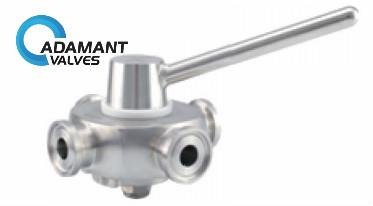

4 way 2 port plug valve

Sanitary Manual 4-way 1-port Plug Valve Specifications

Size 1/4”-1”
Working temperature -10°C ~ 150°C
Working pressure 0-10 bar
Body material 316L
Sealing material PTFE
Connection Tri-Clamp
Finishing Ra≤1.6 μm (outside surface)

Ra≤0.8 μm (inside surface)

plug valve

A B H L1 L2
4.57 25 63 137.4 80
7.75 25 63 137.4 80
9.4 25 63 137.4 80

Sanitary Manual 4-way 1-port Plug Valve Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

available handles

Sanitary Manual 4-way 1-port Plug Valve Applications

4-way plug valves are mainly used in chromatography systems for manual and quick replacement of sample and buffer tubing.

The post AV-21MG1 Sanitary Manual 4-way 1-port Plug Valve with Tri-clamp appeared first on Adamant Valves.

]]> https://www.adamantvalves.com/sanitary-manual-4-way-1-port-plug-valve-with-tri-clamp.html/feed 0 AV-21MG2 Sanitary Manual 4-way 2-port Plug Valve with Tri-clamp https://www.adamantvalves.com/sanitary-manual-4-way-2-port-plug-valve-with-tri-clamp.html https://www.adamantvalves.com/sanitary-manual-4-way-2-port-plug-valve-with-tri-clamp.html#respond Fri, 28 Feb 2020 03:41:40 +0000 https://www.adamantvalves.com/?post_type=product&p=8743 Specifications:

Size 1/4”-1”
Working temperature -10°C ~ 150°C
Working pressure 0-10 bar
Body material 316L
Sealing material PTFE
Connection Tri-Clamp
Finishing Ra≤1.6 μm (outside surface)

Ra≤0.8 μm (inside surface)

The post AV-21MG2 Sanitary Manual 4-way 2-port Plug Valve with Tri-clamp appeared first on Adamant Valves.

]]> Sanitary Manual 4-way 2-port Plug Valve Description

A plug valve is a closing piece or a plunger-shaped rotary valve. By rotating 90 degrees, the passage opening on the valve plug is communicated with or separated from the passage opening on the valve body to open or close. 4-Way Plug Valves are designed for throttling and diverting applications. The transfer style plug can be arranged to divert flow into a variety of flow combinations.

Sanitary Manual 4-way 2-port Plug Valve Specifications

Size 1/4”-1”
Working temperature -10°C ~ 150°C
Working pressure 0-10 bar
Body material 316L
Sealing material PTFE
Connection Tri-Clamp
Finishing Ra≤1.6 μm (outside surface)

Ra≤0.8 μm (inside surface)

plug valve

plug valves A B H L1 L2
4.57 25 63 137.4 80
7.75 25 63 137.4 80
9.4 25 63 137.4 80
22.1 50.4 107 224 150

Sanitary Manual 4-way 2-port Plug Valve Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Available Handles

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Sanitary Manual 4-way 2-port Plug Valve Applications

4-way plug valves are mainly used in chromatography systems for manual and quick replacement of sample and buffer tubing.

The post AV-21MG2 Sanitary Manual 4-way 2-port Plug Valve with Tri-clamp appeared first on Adamant Valves.

]]> https://www.adamantvalves.com/sanitary-manual-4-way-2-port-plug-valve-with-tri-clamp.html/feed 0 AV-19N3 Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type https://www.adamantvalves.com/sanitary-3-way-plug-valve.html Mon, 30 Sep 2019 06:42:32 +0000 http://www.tungstenhome.com/?post_type=product&p=8128 Specifications:

Size 1"-3"/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO

The post AV-19N3 Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type appeared first on Adamant Valves.

]]> Sanitary 3-Way Plug Valve Description

The 3 way plug valve is a closing or plunger-shaped rotary valve. Its valve plug can be a cylindrical shape or conical shape. In a cylindrical valve plug, the passage is generally rectangular; in a tapered valve plug, the passage is trapezoidal. Comparing to the globe valve, plug valve has a plug to close the flow, which is different from the gate of the globe valve.

Sanitary 3-Way Plug Valve Specifications

2-way & 3-way plug valve for Weld/Male/Female/Clamp

Size 1″-3″/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange, and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO

3-way valve

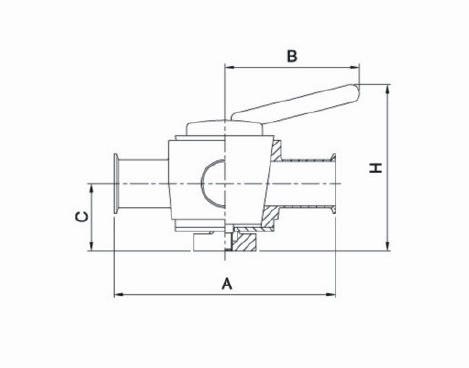

Size Weld A Male A Clamp A B D
1″ 184.2 115.9 117 58.3 128.4
1.5″ 198.4 147.6 142.7 61 164.4
2″ 223.8 173 144.2 72.4 178
2.5″ 260.4 209.6 150.6 86.4 223.4
3″ 290.5 239.7 180.7 90.6 241.4

Sanitary 3-Way Plug Valve Options

* Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

* The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.

* End connection can be butt-welded, sanitary tri-clamp, threaded, weld, or others upon request.

* Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

3-way

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Sanitary 3-Way Plug Valve Design features

  • Rubber (Silicone) or stainless steel plug
  • Meets 3-A sanitary finish
  • Temperature to 248° F
  • Bevel seat ends available on request

Sanitary 3-Way Plug Valve Applications

Plug valves are popular in the dairy, beverage, pharmaceutical, beer, chemical, food, and other industrial areas. The structure of the valve is reasonable, easy to remove and wash.

The post AV-19N3 Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type appeared first on Adamant Valves.

]]> AV-19N2 Sanitary 2-Way Plug Valve with Tri-Clamp Ends, Manual Type https://www.adamantvalves.com/sanitary-2-way-plug-valve.html Mon, 30 Sep 2019 06:37:21 +0000 http://www.tungstenhome.com/?post_type=product&p=8124 Specifications:

Size 1"-3"/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange, and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO

The post AV-19N2 Sanitary 2-Way Plug Valve with Tri-Clamp Ends, Manual Type appeared first on Adamant Valves.

]]> Sanitary 2-Way Plug Valve Description:

The 2 way plug valve is a closing or plunger-shaped rotary valve. Its valve plug can be cylindrical or conical in shape. In a cylindrical valve plug, the passage is generally rectangular; in a tapered valve plug, the passage is trapezoidal. It is most suitable for use as a cutting and closing medium and a shunt, it can also be used for throttling depending on the applicable properties and the erosion resistance of the sealing surface.

Sanitary 2-Way Plug Valve Specifications:

2-way & 3-way plug valve for Weld/Male/Female/Clamp

2-way

Size Weld A Male A Clamp A B D
1″ 184.2 115.9 117 58.3 128.4
1.5″ 198.4 147.6 142.7 61 164.4
2″ 223.8 173 144.2 72.4 178
2.5″ 260.4 209.6 150.6 86.4 223.4
3″ 290.5 239.7 180.7 90.6 241.4



Size 1″-3″/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO

Sanitary 2-Way Plug Valve Options:

* Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

* The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.

* End connection can be butt-welded, sanitary tri-clamp, threaded, weld, or others upon request.

* Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

* Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE



Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

2-way valve

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

 Sanitary 2-Way Plug Valve Design Features:

  • Rubber (Silicone) or stainless steel plug
  • Meets 3-A sanitary finish
  • Temperature to 248° F
  • Bevel seat ends available on request

Sanitary 2-Way Plug Valve Applications:

Plug valves are popular in the dairy, beverage, pharmaceutical, beer, chemical, food, and other industrial areas. The structure of the valve is reasonable, easy to remove and wash.

Related Products of Sanitary 2-Way Plug Valve:

Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type

The post AV-19N2 Sanitary 2-Way Plug Valve with Tri-Clamp Ends, Manual Type appeared first on Adamant Valves.

]]>
