I-line Adapters

I-line Adapters inquiry

Follow Us On

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Buttweld Fittings-170

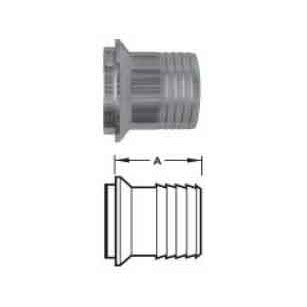

SS14HRI--- Male I-Line Rubber Hose Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.812



SSI4HRI-1-304



SSI4HRI-1-316



1.5"



1.937



SSI4HRI-1.5-304



SSI4HRI-1.5-316



2"



2.062



SSI4HRI-2-304



SSI4HRI-2-316



2.5"



2.437



SSI4HRI-2.5-304



SSI4HRI-2.5-316



3"



2.687



SSI4HRI-3-304



SSI4HRI-3-316



4"



3.687



SSI4HRI-4-304



SSI4HRI-4-316



Buttweld Fittings-170

SS14WHI--- Male I-Line Heavy Tank Spud

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.312



SSI4WHI-1-304



SSI4WHI-1-316



1.5"



1.437



SSI4WHI-1.5-304



SSI4WHI-1.5-316



2"



1.500



SSI4WHI-2-304



SSI4WHI-2-316



2.5"



1.437



SSI4WHI-2.5-304



SSI4WHI-2.5-316



3"



1.500



SSI4WHI-3-304



SSI4WHI-3-316



4"



1.812



SSI4WHI-4-304



SSI4WHI-4-316



Buttweld Fittings-170

SS15HRI--- Female I-Line Rubber Hose Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



4.062



SSI5HRI-1-304



SSI5HRI-1-316



1.5"



4.281



SSI5HRI-1.5-304



SSI5HRI-1.5-316



2"



4.062



SSI5HRI-2-304



SSI5HRI-2-316



2.5"



4.812



SSI15HRI-2.5-304



SSI5HRI-2.5-316



3"



5.062



SSI5HRI-3-304



SSI5HRI-3-316



4"



4.188



SSI5HRI-4-304



SSI5HRI-4-316



Buttweld Fittings-170

SS15WHI--- Female I-Line Heavy Tank Spud

Tube OD
(Size)



A



Part Number
304



Part Number
316L















1"



1.500



SSI5WHI-1-304



SSI5WHI-1-316



1.5"



1.625



SSI5WHI-1.5-304



SSI5WHI-1.5-316



2"



1.750



SSI5WHI-2-304



SSI5WHI-2-316



2.5"



1.750



SSI5WHI-2.5-304



SSI5WHI-2.5-316



3"



1.812



SSI5WHI-3-304



SSI5WHI-3-316



4"



2.125



SSI5WHI-4-304



SSI5WHI-4-316



Buttweld Fittings-170

SS17I-14I-14I-Male I-Line x Male I-Line Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.200



SS17I-14I-14I-1-304



SS17I-14I-14I-1-316



1.5"



1.530



SS17I-14I-14I-1.5-304



SS17I-14I-14I-1.5-316



2"



1.580



SS17I-14I-14I-2-304



SS17I-14I-14I-2-316



2.5"



1.696



SS17I-14I-14I-2.5-304



SS17I-14I-14I-2.5-316



3"



1.812



SS17I-14I-14I-3-304



SS17I-14I-14I-3-316



4"



2.062



SS17I-14I-14I-4-304



SS17I-14I-14I-4-316



Buttweld Fittings-170

SS17I-14I-14MP-Male I-Line x Clamp Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.093



SS17I-14I-14MP-1-304



SS17I-14I-14MP-1-316



1.5"



1.250



SS17I-14I-14MP-1.5-304



SS17I-14I-14MP-1.5-316



2"



1.250



SS17I-14I-14MP-2-304



SS17I-14I-14MP-2-316



2.5"



1.312



SS17I-14I-14MP-2.5-304



SS17I-14I-14MP-2.5-316



3"



1.406



SS17I-14I-14MP-3-304



SS17I-14I-14MP-3-316



4"



1.656



SS17I-14I-14MP-4-304



SS17I-14I-14MP-4-316



Buttweld Fittings-170

SS17I-14I-15I-Male I-Line x Female I-Line Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.318



SS17I-14I-15I-1-304



SS17I-14I-15I-1-316



1.5"



1.468



SS17I-14I-15I-1.5-304



SS17I-14I-15I-1.5-316



2"



1.500



SS17I-14I-15I-2-304



SS17I-14I-15I-2-316



2.5"



1.688



SS17I-14I-15I-2.5-304



SS17I-14I-15I-2.5-316



3"



1.812



SS17I-14I-15I-3-304



SS17I-14I-15I-3-316



4"



2.062



SS17I-14I-15I-4-304



SS17I-14I-15I-4-316



Buttweld Fittings-170

SS17I-15I-14MP-Female I -Line x Clamp Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.281



SS17I-15I-14MP-1-304



SS17I-15I-14MP-1-316



1.5"



1.437



SS17I-15I-14MP-1.5-304



SS17I-15I-14MP-1.5-316



2"



1.540



SS17I-15I-14MP-2-304



SS17I-15I-14MP-2-316



2.5"



1.625



SS17I-15I-14MP-2.5-304



SS17I-15I-14MP-2.5-316



3"



1.718



SS17I-15I-14MP-3-304



SS17I-15I-14MP-3-316



4"



1.968



SS17I-15I-14MP-4-304



SS17I-15I-14MP-4-316



Buttweld Fittings-170

SS17I-15I-15I- Female I-Line x Female I-Line Adapter

Tube OD
(Size)



A



Part Number
304



Part Number
316L















1"



1.562



SS17I-15I-15I-1-304



SS17I-15I-15I-1-316



1.5"



1.875



SS17I-15I-15I-1.5-304



SS17I-15I-15I-1.5-316



2"



2.062



SS17I-1

Contact us for more information and best pricing.
