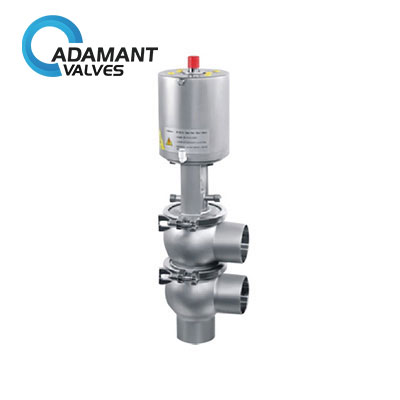

AV-5-S0430 Pneumatic Divert Seat Valve With Steam Sterilization

Availability : In stock

Specification	DN25 / 1″ to DN100 / 4″
Material	ASTM 304 / 1.4301, 316L / 1.4404
Pressure	Vacuum to 10 bar (1.0 MPa)
Temperature	-20°C to +130°C
Seal Options	EPDM, FPM, HNBR, FDA 177.2600 compliant

Pneumatic Divert Seat Valve With Steam Sterilization Description

Pneumatic Divert Seat Valve with Steam Sterilization is a hygienic single-seat valve designed for automatic flow diversion in sanitary process lines. It combines reliable pneumatic operation with advanced cleanability, making it highly suitable for industries requiring strict hygiene standards.

This valve performs all standard functions of a reversing seat valve and is equipped with a specially designed stem that can be sterilized with cleaning fluid or steam. This ensures that the valve stem is completely cleaned, effectively preventing cross-contamination and guaranteeing product safety.

Pneumatic Divert Seat Valve With Steam Sterilization Specifications

Specification	Details
Size	DN25 / 1″ to DN100 / 4″
Maximum Temperature	130 °C
Maximum Pressure	10 bar
Air Supply	4–7 bar
Material	ASTM 304 / 1.4301, 316L / 1.4404
Seal Options	EPDM, FPM, HNBR, FDA 177.2600 compliant
Inner Surface Finish	Ra < 0.8 μm
Surface Treatment	Sandblasting, Polishing
Certificates	3-A-53-06, PED 97/23/EC, FDA 177.2600
