Stainless Steel Sanitary Sample Valves And Gauges

What is the sanitary sample valve?

Sanitary sample valve is a type of valve used in process industries that allows taking a representative portion of a fluid (gases, liquids, fluidized, solids, or slurries) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling.

Type: Sample Valve
Reference No.: AV-7
Sizes: 1/4″ – 3/4″
Materials: 304 – 316L
Operation: Manual, Pneumatic

Adamant Valves AV-7 series stainless steel sanitary sample valves use:

Adamant Valves AV-7 series Sample valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain. These aseptic sampling valves are high-quality products. They can be used for dairy, pharmaceutical, beer, beverage, edible oil, and other industries to meet their professional requirements.

Adamant Valves AV-7 series stainless steel sanitary sample valves advantages:

AV-7 series sanitary sample valves and gauges have many advantages such as removable connection, simple structure, and easy maintenance;

AV-7 series aseptic sampling valves and gauges are high-quality pieces to ensure the use of performance and service life;

Adamant valves can provide valve body and disc materials such as AISI 304 or AISI 316L, 304L, and 316 materials, automated or manual operation valve according to your requests.

Showing all 8 results

AV-7A Aseptic Sampling Valves

Materials: AISI-316L Size: DN8 Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector) Technical Specification Nominal Pressure: Max. product pressure: 87psi (6bar) Temperature: Max. sterilization temperature: 130°C, dry steam: 121°C (2bar). Steam must be dry, because condensed water will damage the diaphragm....

AV-7G Sanitary Gauges

Materials: AISI-316L Size: 1/4''-3/4'' Seals: PTFE Technical Specification End connection: threaded, clamp, welded as customers require. Size available: 1/4", 3/8", 1/2", 3/4" Max. working pressure: 147psi (10bar) Min. working pressure: Applicable under vacuum Working temperature: 14 ~ 248°F (-10 ~ 120°C)

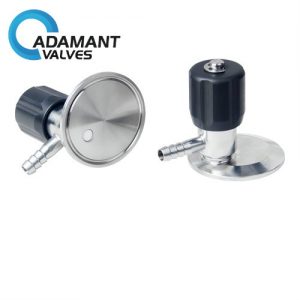

AV-7N Sanitary No Retention Sampling Valve

Specifications: Size 1/4”, 3/8”, 1/2”, 3/4”, 1”, 2” Working temperature -10 ° C to 130 ° C Body material AISI 304 AISI 316L Sealing material PTFE Connection clamp, thread, welding, nut type Standards ISO, DIN, SMS, RJT

AV-7P Sanitary Piston Valve

Materials: Stainless Steel 304/316L, Seat Material: Viton, silicon, PTFE Max Working Pressure: 12 bar (174 psi) Special characteristics: Side pipe sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. O-Ring closing system.

AV-7PA Pneumatic Type Aseptic Sampling Valves

Materials: AISI-316L Size: DN8 Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector) Technical Specification Nominal Pressure: Max. product pressure: 87psi (6bar) Temperature: Max. sterilization temperature: 130°C, dry steam: 121°C (2bar). Steam must be dry, because condensed water will damage the diaphragm....

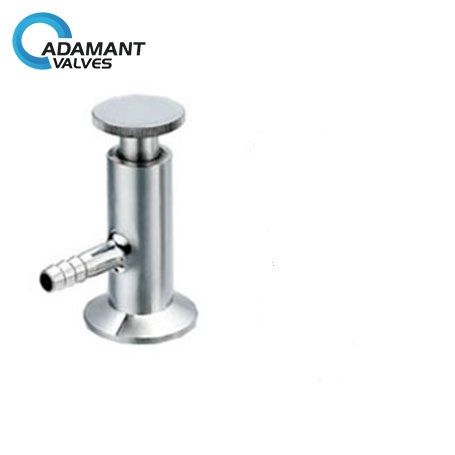

AV-7S Sanitary Sampling Valves

Materials Materials: AISI-316L Size: 1/4''-3/4'' Seals: PTFE Gasket: EPDM or NBR Standard Design End connection: threaded, clamp, welded as customers require. Sampling port size available: 1/4", 3/8", 1/2",3/4" Max. working pressure: 10bar Max. working temperature: 248°

AV-7SV Straight Sampling Valves

Working Temperature: -10℃ to -130℃ Body material: AISI 304 AISI 316L Seal material: PTFE Connection: clamp, threaded, welded

AV-7YS Yogurt Sampling Valves

Material: 316L Temperature: 130℃ Pressure: 10bar
