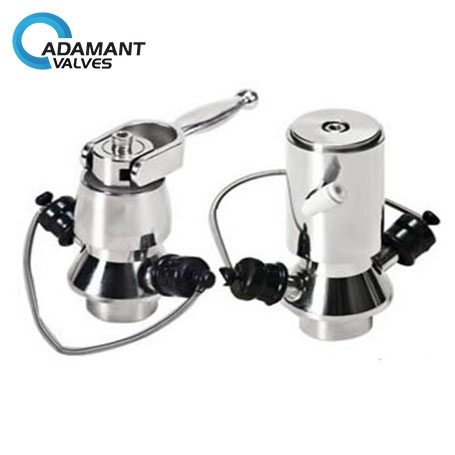

AV-7A Aseptic Sampling Valves

Availability : In stock

Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector)

Technical Specification
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.

Aseptic Sampling Valves Application

AV-7A stainless steel aseptic sampling valves are used in the food, dairy, brewery, winery, and many other hygienic industries.

Aseptic Sampling Valves Materials

Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for a valve with micro type connector)

Aseptic Sampling Valves Standard Design

Aseptic sampling valve is made from three parts: valve body, valve head, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.

End connections can be welded, clamped, or threaded, only one size DN8 available.
Handle type: rotary handle, key handle
Valve open: sampling valve close: sterilization

Open Close

Technical Specification of Aseptic Sampling Valves

Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.
