Stainless Steel Sanitary Fittings

Adamant Valves carries a wide range of sanitary fittings at some of the lowest prices online. They were developed and are used because they are cleanable; either by dismantling a system and manually cleaning it or using a CIP (clean in place) process. They limit entrapment areas where bacteria could form or harbor. They are also corrosion-resistant.

Type: Fittings
Reference No.: SS
Sizes: 1″ – 12″
End Types: Butt-weld, tri-clamp, and I-line
Grades: 304 – 316L
Operation: Manual, Pneumatic, Electric

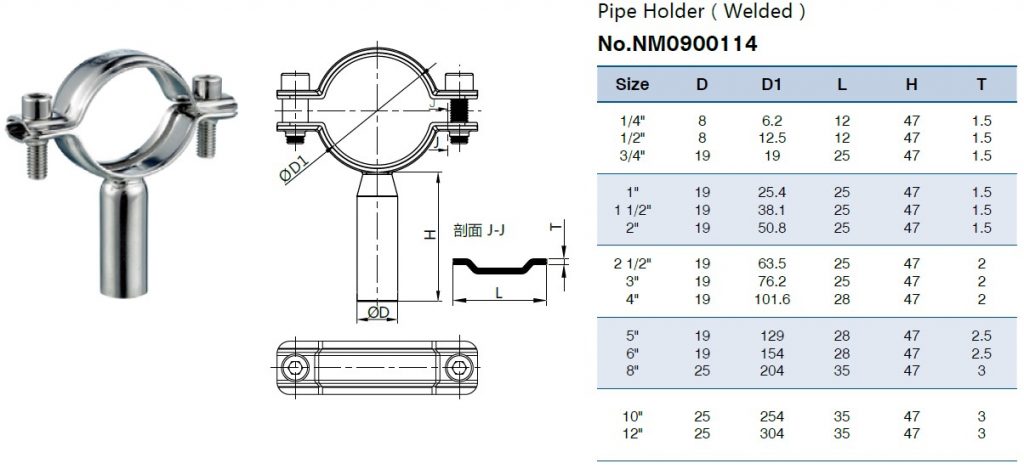

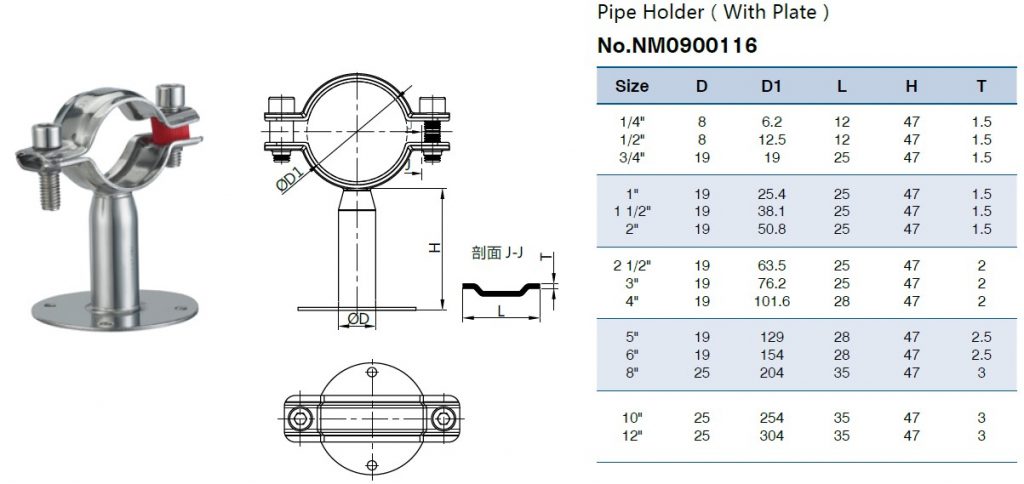

Sanitary Pipe Holder

sanitary pipe holder

sanitary pipe holder

Adamant Valves SS Series Stainless Steel Sanitary Fittings Use:

SS series stainless steel sanitary fittings are widely used in the petroleum, metallurgy, plumbing, food, biopharmaceutical, and chemical industries;
SS series stainless steel sanitary fittings are high-quality products. They can be used for dairy, pharmaceutical, beer, beverage, edible oil, and other industries to meet their professional requirements.

Adamant Valves SS Series Stainless Steel Sanitary Fittings Advantages:

SS series stainless steel sanitary fitting has many advantages such as removable connection, simple structure, and easy maintenance;
SS series stainless steel sanitary fittings are high-quality pieces to ensure the use of performance and service life;
Adamant valves can provide fitting materials such as AISI 304 or AISI 316L, 304L and 316 materials, automated or manual operation valve according to your requests.

Showing 1–9 of 48 results

AV-13 Sanitary Tank Spray Balls

Materials Materials: AISI-304 Size: 1''-2'' Technical Parameter Self lubricating. Working pressure: 1 ~ 3bar Max. working temperature: 95°C Wetting radius: Max. 3m Cleaning radius: 2m Connection end: butt-welded, sanitary clamp, threaded or others upon request. Design standards: DIN, SMS, ISO / IDF, etc.

AV-13BEV B Series Electric Vibrator

Features and Benefits: 50 Hz / 60 Hz with full voltage ranges Speed range 3450, 1750, 1170, 850 RPM Centrifugal force output up to 16500 lbs High-temperature Class Insulation TENV vibrators ensure long life Water tight/dust tight Continuous duty Specify for: Cost effective solutions Expert...

AV-13EB Extension Brackets

Size: 1/4” through 4” Materials: 304 Stainless Steel, Aluminum Features: Economy Open Style, Enclosed Style, Custom Heights, Locking Mechanism, Improved Accessibility, Operator Protection, High Temp Applications, Cryogenic Applications Standards: ISO 5211 Mount Pad

AV-13F Sanitary Fixed Spray Ball

Technical Parameters Steel material Product wetted steel parts AISI 304 or 316L Provided with the material inspection report (1.4306 / 1.4404) Other steel parts AISI 304 Pressure Working pressure ≤145psi (10bar) Supply pressure for air actuator 70 ~ 116psi (5 - 8bar) Surface treatment Inside...

AV-13H Horizontal Screw-wing Detachable Water Meter

Specifications: Type Horizontal Model DN50-600 Size 50mm Connect Flange Working pressure PN16

AV-13M Sanitary Manhole

Sanitary Manhole is available in the following 7 types. They are mainly used in a variety of food, wine, beverage, pharmaceutical, and other industrial fields of pressure vessels.

AV-13MM Magnetic Mixer

Benefits Maximum process efficiency, minimal product loss Optimal flow with higher efficiency and less energy consumption Mixing down to the last drop for maximum yield due to low agitation and dry-running capability Optimized Cleaning-in-Place (CIP) due to full drain ability Minimized downtime due to ease...

AV-13PG Sanitary Pressure Gauge

Body: 316SS Internal Parts: 316SS Wetted Surface Finish: 18-24 Ra Features: Quick Connect Tri-Clamp® Design Fast Removal and Installation of Instruments, to Allow Flushing or Changing the Process Media Ideal for Clean-in-Place, or Equipment Washdown Exceeds 3-A Sanitary Standards Comes Standard with 3-A Certification All Welded...

AV-13PR LPG Pressure Regulator

Specifications: Inlet connection 35 mm (G.56) Outlet connection φ10mm φ13mm Gas type LPG 30mbar 1.0 kg/h LPG 50mbar 1.0 kg/h Butane 29mbar 1.5 kg/h Propane 37mbar 1.5 kg/h Propane 50mbar 1.5 kg/h
