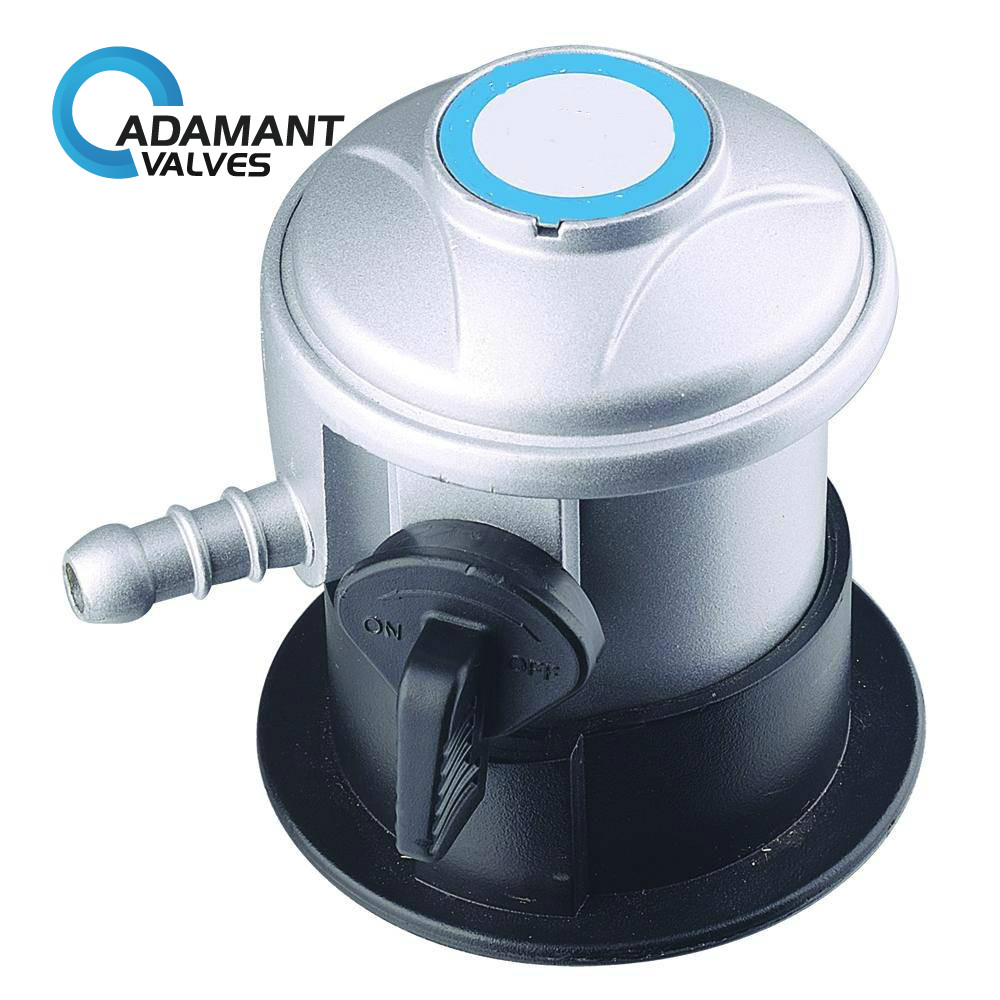

AV-13PR LPG Pressure Regulator
Specifications:
| Inlet connection | 35 mm (G.56) |
| Outlet connection | φ10mm
φ13mm |
| Gas type | LPG 30mbar 1.0 kg/h
LPG 50mbar 1.0 kg/h Butane 29mbar 1.5 kg/h Propane 37mbar 1.5 kg/h Propane 50mbar 1.5 kg/h |
LPG Pressure Regulator Description:
The LPG pressure regulator is a device that can keep the downstream pressure stable regardless of changes in the gas flow rate and upstream pressure. It can reduce the upstream pressure to a stable downstream pressure. When the regulator fails, it should be able to limit the downstream pressure within a safe range.
LPG Pressure Regulator Specifications:
| Inlet connection | 35 mm (G.56) |
| Outlet connection | φ10mm
φ13mm |
| Gas type | LPG 30mbar 1.0 kg/h
LPG 50mbar 1.0 kg/h Butane 29mbar 1.5 kg/h Propane 37mbar 1.5 kg/h Propane 50mbar 1.5 kg/h |
LPG Pressure Regulator Applications:
The LPG pressure regulator is mainly used in gas pipelines, such as air, nitrogen, oxygen, ammonia, liquefied gas, natural gas and other gases. It is widely used in gas stations, industries, hotels, canteens and liquefied gas cylinders.
