Sanitary Pumps

adamant sanitary pumps

What is the sanitary pump?

Sanitary pumps are used to transport and meter solutions, slurries, and colloids of food and agricultural materials in operations where cleanliness is desired or mandated to ensure that sanitary standards are met during the processing of liquids. Types of sanitary pumps include sanitary centrifugal pumps, sanitary rotary lobe pumps, and sanitary liquid ring pumps. Liquids can be mixed, transferred, unloaded, and processed by using different types of sanitary pumps.

Type: Pump
Reference No.: AV-18
Types: Rotary Lobe Pumps, Centrifugal Pumps, Liquid Ring Pumps
Applications: chemical industry, petroleum, metallurgy, plumbing, food, bio-pharmaceutical

Adamant Valves Company is a leading sanitary pump manufacturer. We offer a complete line of sanitary pumps to meet all of your dairy and food processing requirements. Please contact us to find out which type of sanitary valve is right for your project. And please send us an inquiry for sanitary pump price.

Showing 1–9 of 17 results

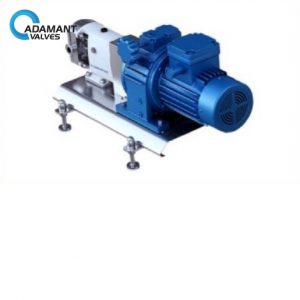

AV-18 AVZ Sanitary Rotary Lobe Pumps

Materials: Product wetted: SS 316L/304, Others SS 304 Gasket: EPDM Mechanical seal: SIC/SIC/EPDM Internal surface finish: Ra 32 µin External surface finish: Mirror polish Options: Mechanical seal: SIC/SIC/EPDM/TC/TC/EPDM Flushed single or double mechanical seal Gasket: FPM (Viton), NBR, PTFE Pressure relief valve available internal or...

AV-18AVB Sanitary Liquid Ring Pumps

Technical Parameter: Maximum Flow Rate: 30m³/h, 132GPM Maximum Discharge Head: 30m Maximum Pressure: 3 bar (43psi) Temperature range: -4° F to 248° F (EPDM) Maximum Revolution: 1752 RPM Maximum Suction Height: 8m, 22ft. Motor Type: B35, frequency 50Hz/60Hz. Materials: Product wetted: AISI 316L/304, others 304...

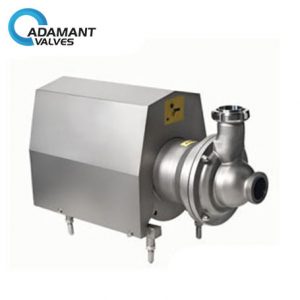

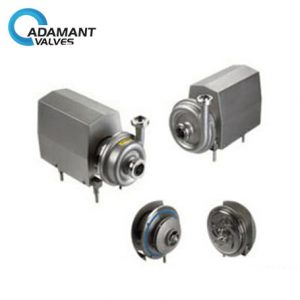

AV-18AVH Sanitary Centrifugal Pumps

Technical Parameter: Maximum flow: 150 m³/h Maximum discharge head: 70m Maximum revolution: 3600 rpm Temperature range: -4 ° F to 248 ° F (-20 ° C to 120 ° C) Noise level (at 1m): 60-85 dB (A) Design Features: Stainless steel construction Adjustable stainless steel...

AV-18FP Flexible Impeller Pump

Max Flow: 20m3/h Max Pressure: 4 bar Max Suction: 5 M Max Temperature: 80℃ Rotating Speed: 1450 R.P.M Material: 316L/1.4404

AV-18HM Homogeneous mixing pump PMTU

The maximum processing capacity of powder: 9000KG/h Maximum processing of thickeners: 3000KG/h (depending on material viscosity and concentration) Maximum temperature: 130 ° C Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm Machine seal: single machine...

AV-18LC Liquid Circulate Self-priming Pump CIP-U

Max Flow rate: 40m3/h Max Head: 42 H/M Max suction: 8 / M Temperature: -20℃ to 130℃ Power: 1.5-15KW Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm Machine seal: single machine seal, double machine seal...

AV-18MP Mixing Pumps/Mixers

Maximum processing capacity: 60m3/h The maximum amount of solid Inhalation: 9000Kg/h Maximum temperature: 130℃ Maximum pressure: 5 Bar Mechanical seal design: Single End SIC / SIC, double-end SIC / SIC Other options: (1) Pneumatic valves (2) Mixing chamber sieve (3) Excretory system (4) Hopper vibrator...

AV-18MR Mini Rotor Pump

Max flow: 3000 L / h Max pressure: 12 bar Speed range: 10-1450 R.P.M Working temperature (Max Temperature): -40℃ to 150℃ Surface treatment: Ra≤0.6μm; EP=Ra0.4μm Material: 100% stainless steel, medium contact part 316L

AV-18PM Homogeneous mixing pump PMZX

The maximum processing capacity of powder: 9000KG/h Maximum processing of thickeners: 3000KG/h (depending on material viscosity and concentration) Maximum temperature: 130 ° C Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm Machine seal: single machine...
