Stainless Steel Sanitary Ball Valves

Sanitary ball valves are also called a hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, the flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually work to achieve perfect shutoff even after years of disuse.

Type: Ball Valve
Reference No.: AV-2
Sizes: 1″ – 4″
End Types: Tri-Clamp, Full Port
Grades: 304 – 316L
Operation: Manual, Pneumatic, Electric

Adamant valves AV-2 series sanitary ball valves use:

AV-2 series sanitary ball valves are made of high-quality stainless steel, which can meet the special requirements of various media in food and biopharmaceutical fields. The smooth, seamless and automatic emptying of handicrafts is also very suitable for steam cleaning;

Adamant valves AV-2 series sanitary ball valves advantages:

AV-2 series sanitary ball valve has many advantages such as removable connection, simple structure, and easy maintenance;
AV-2 series ball valve rubber seals and valve plates are high-quality pieces to ensure the use of performance and service life;

Adamant valves can supply valve body and disc materials such as AISI 304 or AISI 316L, 304L and 316 materials according to your requests. This stainless steel hygienic ball valve is suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics, and other industrial areas.

Showing 1–9 of 11 results

AV-10MB Sanitary Manual Tank Bottom Ball Valve, Tri-clamp

Specification: Size 1"-4"/DN25-100 Working pressure 0-10 bar (145psi) Outside surface Matte, light, sandblast and electronic polishing Body Material AISI, 316L Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C) Plastic  actuator: -12° F to 266° F (-20°C to 130°C) Sealing material...

AV-2MBC Sanitary Butterfly-type Ball Valve With Welded Ends, Manual Type

Specifications: Size 1"-4"/DN25-100 Working temperature EPDM(-40 ~ +120°C) Working pressure 0-10 bar (0-145psi) Body Material 316L/304 Sealing material EPDM,VMQ,FPM Connection Tri-clamp, Welded, thread, flange Finishing Polished Standards 3A, DIN, SMS, IDF,RJT, BPE, ISO

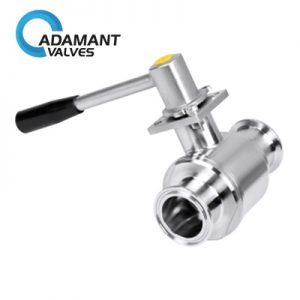

AV-2MCC Sanitary Cavity Filled Ball Valve with Tri-clamp Ends, Manually Operated

Specification Type Ball Valve Reference No. AV-2MCC Sizes 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve body material AISI 304 or AISI 316L. Valve seat Cavity Filled...

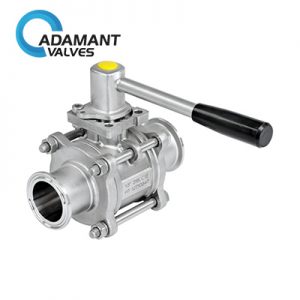

AV-2MEC Encapsulated Sanitary 3 Piece Ball Valve with ISO 5211 Mounting Pad, Manual Type

Specification: Sizes are available from  1/2" to  4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve body can be AISI 304 or AISI 316. Valve seat: Encapsulated PTFE

AV-2MFC Sanitary Ball Valves with Tri-clamp Ends, Manual Type

Specification Type Ball Valve Reference No. AV-2MFC Sizes 1/2" to  4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve body material AISI 304 or AISI 316L. Valve seat Teflon (PTFE)...

AV-2MFC3 Sanitary Stainless Steel 3-way Ball Valve with Tri-clamp Ends, Manual Type

Specification Type Ball Valve Reference No. AV-2MFC-3T Sizes 1" to  4" (1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100) Valve material Valve body: AISI 304 or AISI 316L; Valve seat: Teflon (PTFE) Max. working pressure...

AV-2MFC4 Sanitary Cross Ball Valve, 4-way

Specification: Sizes are available from DN25 / 1" to DN100 / 4". Valve body can be AISI 304 or AISI 316L. Valve seat: Teflon (PTFE) Max. working pressure: 145psi (10bar) Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option....

AV-2PBC Sanitary Butterfly-type Ball Valve With Welded Ends, Pneumatic Type

Specifications: Size 1"-4"/DN25-100 Working temperature EPDM(-40 ~ +120°C) Working pressure 0-10 bar (0-145psi) Body Material 316L/304 Sealing material EPDM,VMQ,FPM Connection Tri-clamp, flanged, welded, or others upon request Finishing Polished Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO

AV-2PEC Encapsulated Sanitary Electric Actuated Ball Valve with 3 Piece

Specification Type Ball Valve Reference No. AV-2PEBC Sizes 1/2" to  4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4" Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve material Valve body: AISI 304 or AISI 316L; Valve seat: Encapsulated...
