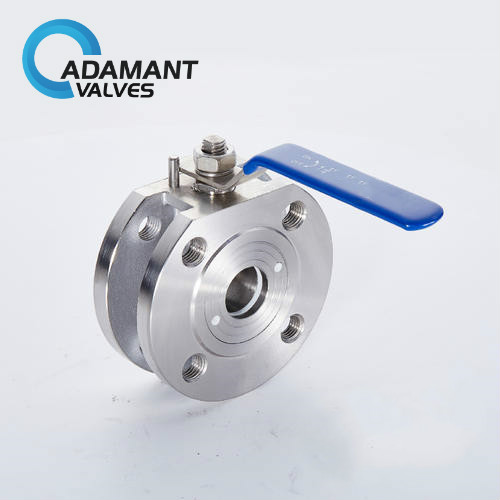

AV-1HMU High-Performance Manual Ultra-Thin Ball Valve with Flange Connection

Availability : In stock

Specifications:

Size DN 15-65
Working temperature -20 to 120 °C
Working pressure 1.6MPa
Body material CF8,CF8M
Sealing material PTFE
Connection Flange
SKU: AV-1HMU Categories: ,

Ultra-Thin Ball Valve Description:

The ultra-thin ball valve has significant advantages such as short structure length, lightweight, convenient installation, and material saving. The heat preservation effect of the ball valve is good. In addition, the valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close.

Ultra-Thin Ball Valve

Ultra-Thin Ball Valve Specifications:

Size DN 15-65
Working temperature -20 to 120 °C
Working pressure 1.6MPa
Body material CF8,CF8M
Sealing material PTFE
Connection Flange

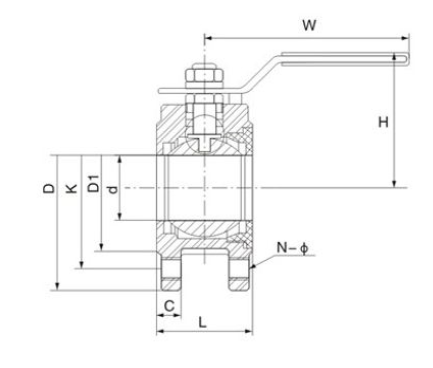

High Performance Manual Ultra-Thin Ball Valve with Flange Connection

DN d L D K D1 C H N-φ W
15 15 35 95 65 45 10 65 4-M12 100
20 20 37 105 75 55 11 70 4-M12 110
25 25 42 115 55 65 12 80 4-M12 125
32 32 53 135 100 76 14 90 4-M16 150
40 38 62 160 110 85 16 96 4-M16 160
50 50 78 180 125 100 17 104 4-M16 180
65 58 90 195 145 118 18 110 4-M16 200

Options:

Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless-steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close.

NO operated: normally open (fail open)—air to close, spring to open.

AA operated: double-acting—air to open, air to close.

available actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I).

Ultra-Thin Ball Valve Applications:

Our high-performance ultra-thin ball valve can be used in a general medium such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.
