AV-2MBM Sanitary Manual 2-way Ball Valve with Middle Screw (Discontinued)

Availability : In stock

Specifications:

Size	0.5”,0.75”
Working temperature	-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option
Working pressure	0-145psi (0-10bar)
Body material	AISI 304 or AISI 316L
Surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Connection	Welded, others available upon request.

(Discontinued)

Sanitary Manual 2-way Ball Valve with Middle Screw Description

Sanitary Manual 2-way Ball Valve with Middle Screw has sanitary welded end connections. The Sanitary Manual 2-way Ball Valve with Middle Screw is ideal for use in food or drink processing and other clean service applications. Founded in 2002, Adamant Valves is a global Sanitary Manual 2-way Ball Valve with a Middle Screw manufacturer & supplier and provides customers with high-precision Sanitary Manual 2-way Ball Valve with Middle Screw at a very affordable price.

Sanitary Manual 2-way Ball Valve with Middle Screw Specifications

Size	0.5”,0.75”
Working temperature	-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option
Working pressure	0-145psi (0-10bar)
Body material	AISI 304 or AISI 316L
Surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Connection	Welded, others available upon request.

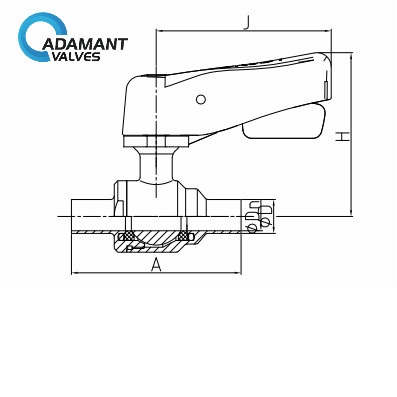

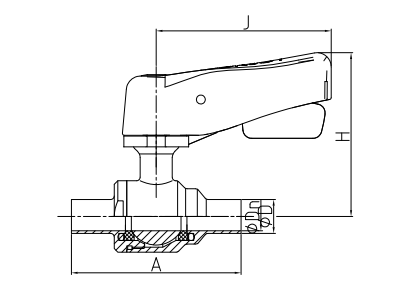

Size	Dn	D	D1	A	H	J
0.5”	9.4	12.7	25.4	95	92	98
0.75”	16	19	25.4	95	92	98

Sanitary Manual 2-way Ball Valve with Middle Screw Options

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double acting—air to open, air to close

Tri-clamp Ball Valve Actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Sanitary Manual 2-way Ball Valve with Middle Screw Applications

The Sanitary Manual 2-way Ball Valve with Middle Screw is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. With the middle screw, it is suitable for the application of different pressures on both sides of the pipeline.
