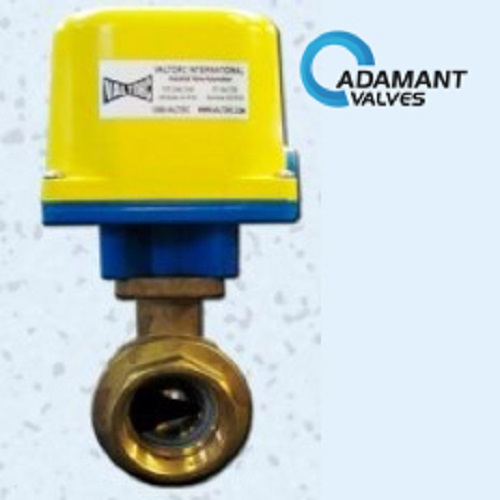

AV-2BVP Brass V-Port Ball Valve

Availability : In stock

Materials: Brass

Size: 1/2’’ – 6’’

Ball Angle(°): 30, 60, 90

SKU: AV-2BVP Category:

Brass V-Port Ball Valve Description

Brass V-Port Ball Valve is ideal for achieving maximum control with the simplicity and sealing features of a ball valve. We offer V-Port Valves 1/2’’ – 4’’ in a 3-piece design and 1/2’’-6’’ flanged. The standard “V” port options are 30, 60, & 90 degrees. While they are available as manual valves, we specialize in automating them to suit your particular control requirements.



Brass V-Port Ball Valve Specifications

Valtorc VP Series V-Port CV Chart
Valve Size Ball

Angle

0% 15% 20% 30% 40% 50% 60% 70% 80% 90% 100%
1/2” 30 0 0.1 0.1 0.2 0.3 0.5 0.8 1.1 1.6 2.2 2.6
60 0 0.1 0.1 0.3 0.5 0.9 1.4 2 3.3 4.4 6
90 0 0.1 0.2 0.4 0.6 0.9 1.5 2.2 3.8 5.4 6.9
3/4” 120 0 0.1 0.2 0.5 0.7 1.1 1.8 2.4 3.3 4.5 5.4
150 0 0.1 0.2 0.7 1 1.7 2.8 4 6.5 9 12
180 0 0.2 0.4 0.8 1.2 2 3.1 4.6 8 11.3 14
1” 210 0 0.1 0.3 0.8 1.3 2.3 3.5 5.1 9.8 8.5 10
240 0 0.2 0.4 1.1 1.8 3.4 5.3 7.9 12.3 15.3 21
270 0 0.2 0.6 1.8 3.4 5.1 8.1 11.4 16 21 29
1 1/4” 300 0 0.2 0.4 1.1 2 3.7 5.5 8 10 13 15
330 0 0.2 0.6 1.8 3 5.5 9.5 12.8 19 26 39
360 0 0.3 0.8 2 5 8 14 19 28 39 55
1 1/2” 390 0 0.3 0.6 1.6 3 5 7.5 11 14 17 20
420 0 0.4 0.8 2.5 4 8 13 19 27 40 52
450 0 0.4 0.9 3.5 7 13 20 31 42 63 78
2” 480 0 0.4 1.2 3.8 6 10 15 23 31 43 60
510 0 0.4 1.5 4.6 9 16.5 27 39 55 83 110
540 0 0.5 2 6 12 22 35 45 70 105 135
2 1/2” 570 0 0.4 1 4 8 12 18 28 37 62 75
600 0 0.4 1.5 5 10 21 34 53 75 103 150
630 0 0.5 1.7 7 14 28 48 70 106 160 218
3‘’ 660 0 0.5 1.2 4 8 14 23 33 46 65 82
690 0 0.5 2.5 6 14 25 40 65 91 128 165
720 0 0.7 3.3 8 18 35 60 90 135 205 310
4‘’ 750 0 0.6 2 6 15 29 48 71 100 130 159
780 0 0.7 3 11 25 40 59 90 141 212 356
810 0 1 3.5 16 40 75 125 190 295 442 670
6‘’ 840 0 0.9 3.2 14 33 60 103 155 220 280 350
870 0 2 5 22 60 110 190 285 416 586 800
900 0 3 8 35 90 160 280 425 650 970 1480

30 v port60 v port90 v port

Pressure VS. Temperature Chart

pressure temperature

*For more information, please contact us.

Brass V-Port Ball Valve Applications

Brass V-Port Ball Valve is ideal for achieving maximum control with the simplicity and sealing features of a ball valve.
