AV-2PFBC Sanitary 3-Way Pneumatic Full Bore Ball Valve With Tri-Clamp Ends

Availability : In stock

Specifications:

Size 1/2”-4”(DN15 – DN80)
Working temperature -20°C – +150°C
Working pressure 10 Bar (145psi)
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Tri-clamp, welded, threaded
Finishing 0.4-0.8 μm
Standards 3A, DIN, SMS, IDF, RJT, BEP, ISO
SKU: AV-2PFBC Category:

Sanitary 3-Way Pneumatic Full Bore Ball Valve Description:

Sanitary 3-Way Pneumatic Full Bore Ball Valve with Welded Ends is fully encapsulated to ensure no stagnation while meeting the sterilization and cleaning requirements of CIP and SIP. L port and T port can be replaced at will and do not change the overall length of the valve.

Sanitary 3-Way Pneumatic Full Bore Ball Valve Specifications:

Size 1/2”-4”(DN15 – DN80)
Working temperature -20°C – +150°C
Working pressure 10 Bar (145psi)
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Tri-clamp, welded, threaded
Finishing 0.4-0.8 μm
Standards 3A, DIN, SMS, IDF, RJT, BEP, ISO

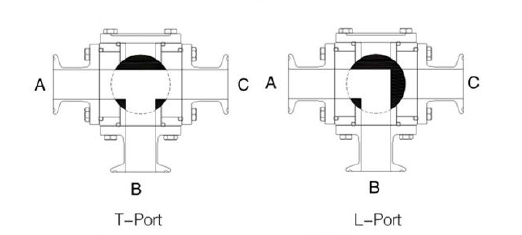

port

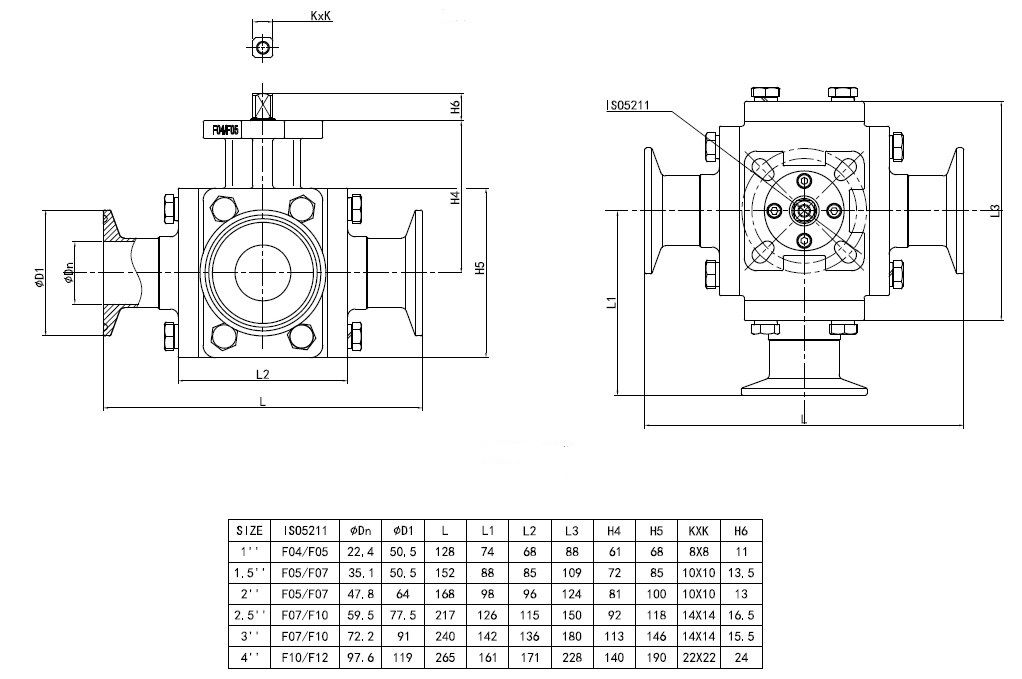

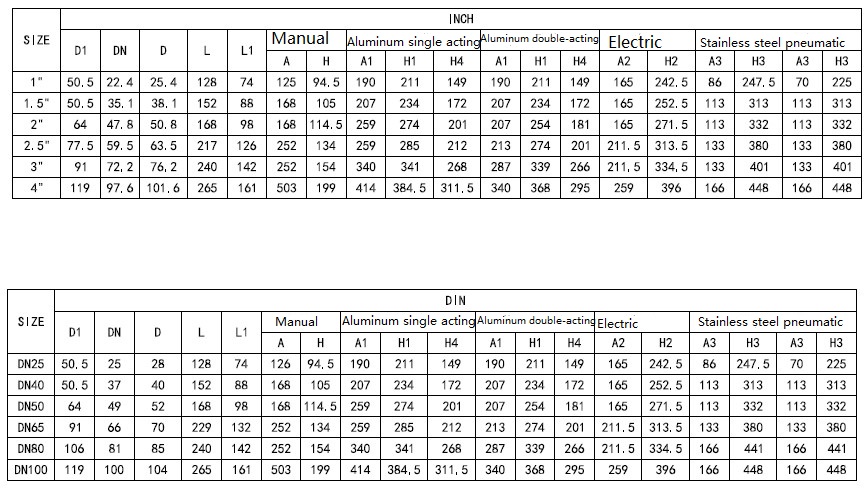

SIZE φDn φD1 A1 H1
1″ 22.4 50.5 190 210
1 1/4″ 28.8 50.5 207 215
1 1/2″ 35.1 50.5 252 234
2″ 47.8 64 271 262
2 1/2″ 59.5 77.5 314 274
3″ 72.2 91 335 341
4″ 97.6 119 565 396

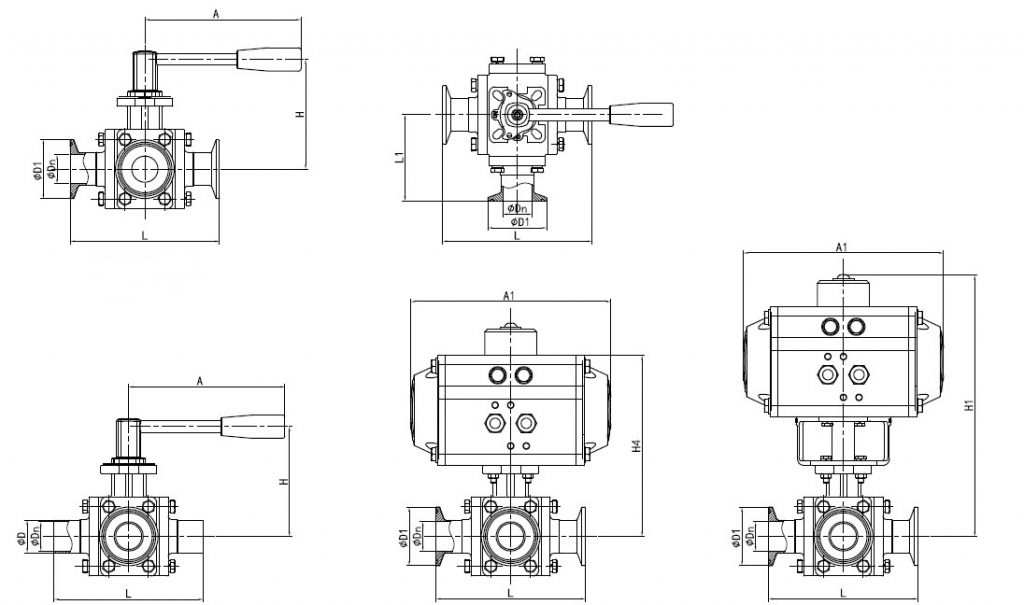

available handles

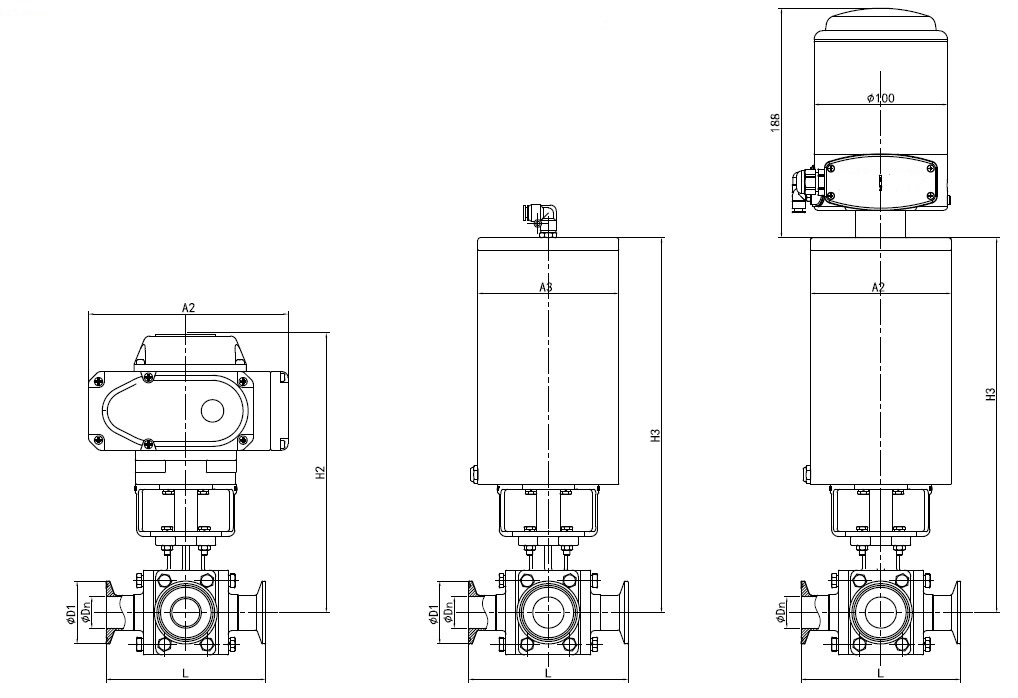

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close



Sanitary 3-Way Pneumatic Full Bore Ball Valve Applications:
