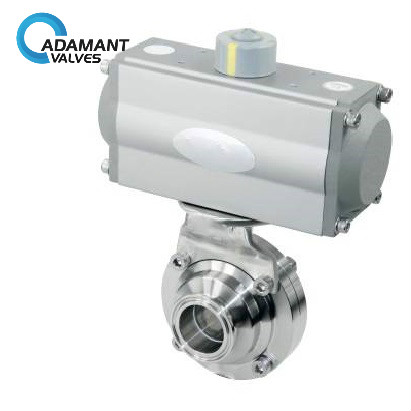

AV-2PBC Sanitary Butterfly-type Ball Valve With Welded Ends, Pneumatic Type

Availability : In stock

Specifications:

Size 1″-4″/DN25-100
Working temperature EPDM(-40 ~ +120°C)
Working pressure 0-10 bar (0-145psi)
Body Material 316L/304
Sealing material EPDM,VMQ,FPM
Connection Tri-clamp, flanged, welded, or others upon request
Finishing Polished
Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO
SKU: AV-2PBC Category:

Description:

Butterfly-type ball valve handles the viscous and particulate matter well, so it is popular in food, beverage, wine, and other fields. The Butterfly-type ball valve can be remotely controlled by electric actuators or pneumatic actuators, and can also be manually manipulated with the handle.

 Specifications:

Size 1″-4″/DN25-100
Working temperature EPDM(-40 ~ +120°C)
Working pressure 0-10 bar (0-145psi)
Body Material 316L/304
Sealing material EPDM,VMQ,FPM
Connection Tri-clamp, flanged, welded, or others upon request
Finishing Polished
Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO

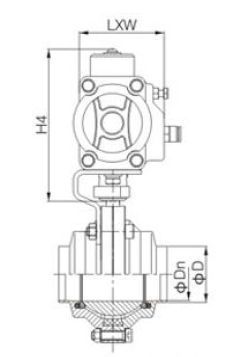

pneumatic butterfly ball valve

Size φDn φD φM H L×W
1/2″ 9.7 12.7 86 140 158×71
3/4″ 16.1 19.1 86 140 158×71
1″ 22.4 25.4 86 140 158×71
1 1/4″ 28.8 31.8 86 140 158×71
1 1/2″ 35.1 38.1 86 157 158×71
2″ 47.8 50.8 86 157 190×81
2 1/2″ 59.5 63.5 113 192 207×94
3″ 72.2 76.2 133 204 213×98.5
4″ 101.6 101.6 266 230 259×108.5

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

Sanitary Full Port Ball Valves actuators

Applications:

  • Food
  • Beverage
  • Wine
  • Dairy products
  • Pharmaceutical
