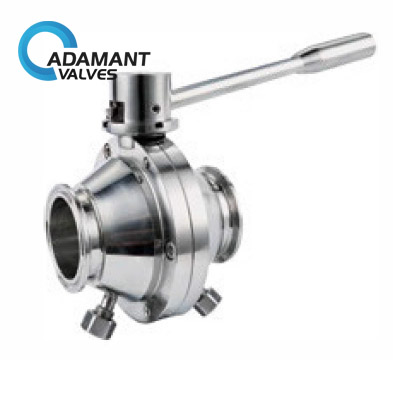

AV-2BWD Butterfly Type Ball Valve With Drain

Availability : In stock

Design Features:

  • Small torque moment
  • Handle can be installed on the side of the valve body, no matter the flow direction.
  • It can match with pneumatic and electric actuators.
  • It can match with CIP wash mouth.
  • Working temperature: EPDM(-40~+120℃), PTFE(-40- +130℃), FPM(-40- +180℃)
  • Pressure of work: 0- 10bar
  • Material for the part contacted with media is 304/316L, other parts are 304.

Sealing material: EPDM, VMQ, FPM

  • Connection: clamp, weld, thread, flange
  • Size:1/2″-4″/DN15-DN100
  • Standards: 3A, DIN, SMS, IDF, RJT, BPE, ISO
SKU: AV-2BWD Category:

Butterfly Type Ball Valve With Drain Description

Butterfly Type Ball Valve With Drain is a kind of automatically particulate or manually manipulation of butterfly-type ball valve, since it is a very good deal with viscous or medium with particulate, which is widely used in food, beverage, pharmaceutical, and a chemical industrial piping system, to regulate and control the medium flow in the system.

Butterfly Type Ball Valve With Drain Specifications

butterfly type ball valve

Manual Butterfly Type Ball Valve

Size Dn Rd L L1 H K x K
DN15 15 Rd34x1/8 70 143 60 10 x 10
DN20 19 Rd44x1/6 70 143 60 10 x 10
DN25 25 Rd52x1/6 85 143 68 10 x 10
DN32 31 Rd58x1/6 85 143 68 10 x 10
DN40 37 Rd65x1/6 100 143 75 10 x 10
DN50 49 Rd78x1/6 102 143 85 10 x 10
DN65 66 Rd95x1/6 125 143 107 10 x 10
DN80 81 Rd110x1/4 135 186 117 11 x 11
DN100 100 Rd130x1/4 170 215 140 14 x 14

Butterfly Type Ball Valve With Drain Applications

Butterfly Type Ball Valve With Drain is widely used in food, beverage, pharmaceutical, and chemical industrial piping system, to regulate and control the medium flow in the system.
