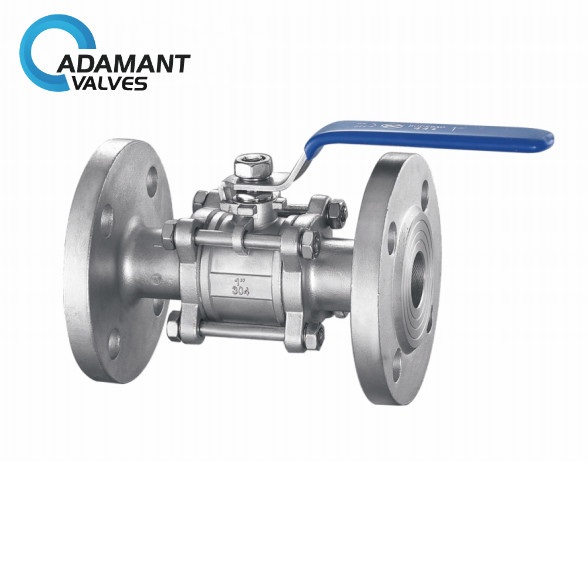

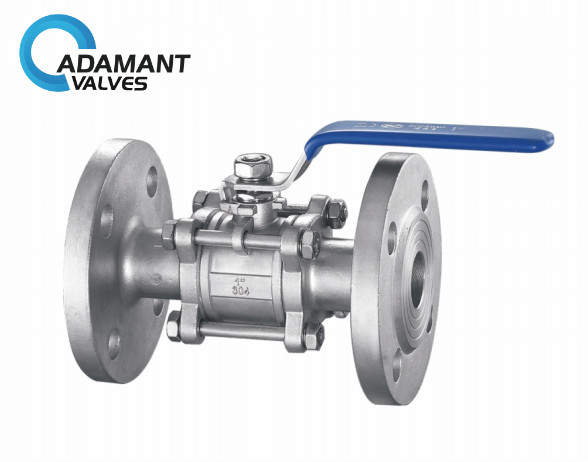

AV-1HMB High-Performance Manual 3-Piece Ball Valve with Flange Connection

Availability : In stock

Specifications:

Size	DN15-100
Working temperature	-20 to 120 °C
Working pressure	1.6MPa
Body material	316, 316L
Sealing material	PTFE
Connection	Flange, thread
Medium liquid	Water, oil and gas

Manual 3-Piece Ball Valve Description:

The three-piece flange ball valve is similar to the gate valve. This valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. The manual 3-piece ball valve is a new type of valve that has been widely used in recent years.

Manual 3-Piece Ball Valve Advantages:

The fluid resistance is small, and the resistance coefficient is the same as the pipe of the same length.
Convenient operation, quick opening, and closing, easy for remote control
Simple structure, small size, lightweight

Manual 3-Piece Ball Valve Specifications:

Size	DN15-100
Working temperature	-20 to 120 °C
Working pressure	1.6MPa
Body material	316, 316L
Sealing material	PTFE
Connection	Flange, thread
Medium liquid	Water, oil and gas

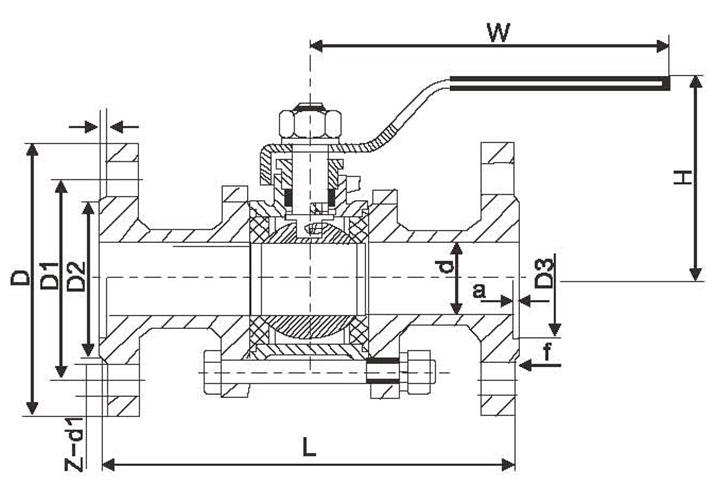

DN	d	L	H	D	DI	D2	f	a	D3	Z	d1	W
15	15	128	77	95	65	45	2	4	40	4	14	130
20	20	145	77	105	75	55	2	4	51	4	14	140
25	25	157	88	115	85	65	2	4	58	4	14	140
32	32	175	113	135	100	78	2	4	66	4	18	170
40	38	192	132	145	110	85	3	4	76	4	18	200
50	50	227	142	160	125	100	3	4	88	4	18	220
65	65	289	173	180	145	120	3	4	110	4/8	18	350
80	80	310	182	190	160	135	3	4	121	4/8	18	350
100	100	350	250	215/230	180/190	122/160	3	4.5	150	4/8	18/23	550

Options:

Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless-steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close

NO operated: normally open (fail open)—air to close, spring to open

AA operated: double-acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Manual 3-Piece Ball Valve Applications:

Our high-performance manual 3-piece ball valve can be used in a general medium such as potable water, wastewater and neutral, oxidation and corrosive liquids and gases.
