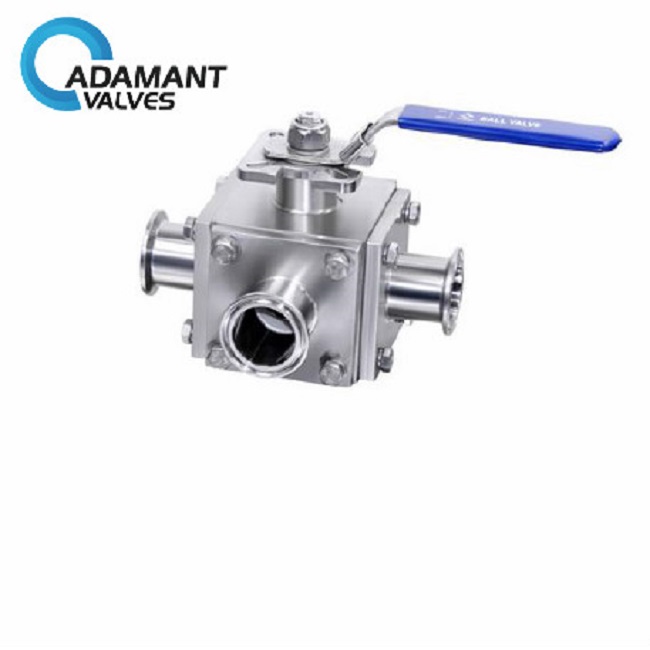

AV-2MFBC3 Sanitary 3-Way Manual Full Bore Ball Valve With Tri-Clamp Ends

Availability : In stock

Specifications:

Size 1/2”-4”(DN15 – DN80)
Working temperature -20°C – +150°C
Working pressure 10 Bar (145psi)
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Tri-clamp, welded, threaded
Finishing 0.4-0.8 μm
Standards 3A, DIN, SMS, IDF, RJT, BEP, ISO
SKU: AV-2MFBC3 Category:

Sanitary 3-Way Manual Full Bore Ball Valve Description

Sanitary 3-Way Manual Full Bore Ball Valve With Welded Ends is fully encapsulated to ensure no stagnation, while meeting the sterilization and cleaning requirements of CIP and SIP. L port and T port can be replaced at will and does not change the overall length of the valve.

Sanitary 3-Way Manual Full Bore Ball Valve Specifications

Size 1/2”-4”(DN15 – DN80)
Working temperature -20°C – +150°C
Working pressure 10 Bar (145psi)
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Tri-clamp, welded, threaded
Finishing 0.4-0.8 μm
Standards 3A, DIN, SMS, IDF, RJT, BEP, ISO

port

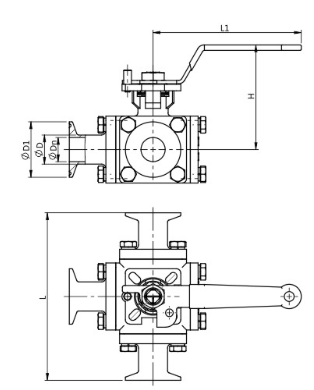

manual full bore ball valve

SIZE φDn φD φD1 L L1 H
1/2″ 9.4 12.7 25.2 18 135 77
3/4″ 15.8 19.1 25.2 127 135 78
1″ 22.1 25.4 50.5 152 135 95
1 1/4″ 28.5 31.8 50.5 175 181 113
1 1/2″ 34.8 38.1 50.5 175 181 113
2″ 47.5 50.8 64 201 181 121
2 1/2″ 60.2 63.5 77.5 227 181 135
3″ 72.9 76.2 91 262 336 140
4″ 97.4 101.6 119 319 436 158

Sanitary 3-Way Manual Full Bore Ball Valve Options

Available Handles

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuator type

Sanitary 3-Way Manual Full Bore Ball Valve Applications
