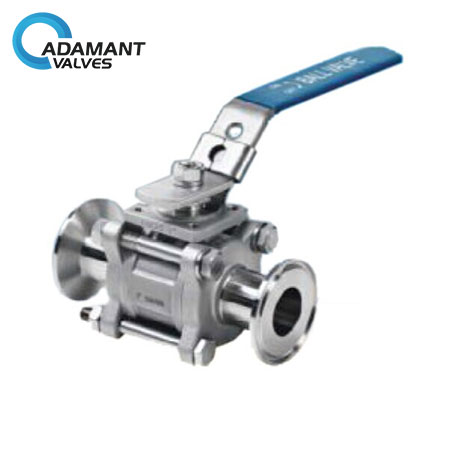

AV-2MEC Encapsulated Sanitary 3 Piece Ball Valve with ISO 5211 Mounting Pad, Manual Type

Availability : In stock

Specification:

Sizes are available from  1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316.

Valve seat: Encapsulated PTFE

SKU: AV-2MEC Categories: ,

Application

AV-2MEBC series is a manual type sanitary 3-pc ball valve with tri-clamp / tri-clamp ends and Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The Encapsulated PTFE seat design with no residue makes it an optimum choice for sanitary needs, AV-2MEBC ball valve operates manually.

Specification:

Sizes are available from  1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316.

Valve seat: Encapsulated PTFE

Encapsulated PTFE Encapsulated PTFE

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

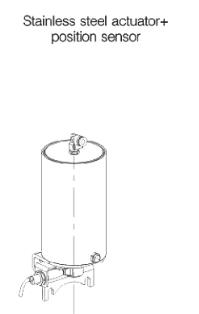

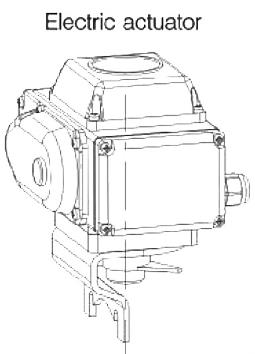

stainless steel actuator aluminum actuator electric actuator

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Design Features

Maintenance-free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

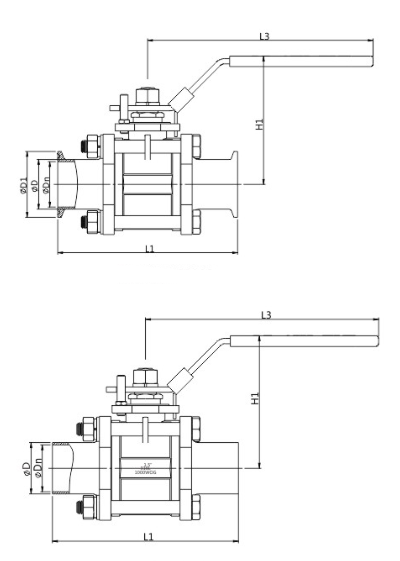

valve SIZE Dn D L1 L3 H1
3/4″ 9.4 12.7 90 130 60.5
1″ 15.8 19.1 102 130 64.5
1.25″ 22.1 25.4 114 170 78
1.5″ 28.5 31.8 125 170 87
2″ 34.8 38.1 138 173 98
2.5″ 47.5 50.8 156 173 107
3″ 60.2 63.5 170 223 130
3.5″ 72.9 76.2 197 335 153
4″ 97.4 101.6 242 335 169



Technical Parameters
Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
