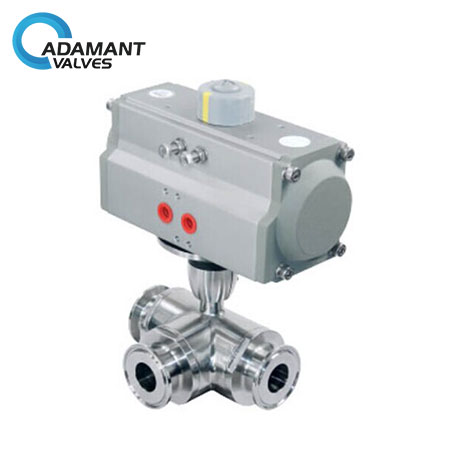

AV-2PFC3 Sanitary 3-way Ball Valve with Tri-clamp Ends, Pneumatic Type

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2PFC-3T

Sizes

1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections

Tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

3-way body

T type or L type for choose from

Actuator

Aluminum material, horizontal type or 304 material, vertical type, NC/NO/AA type for choose from

Air supply pressure

70-116psi (5-8bar)

SKU: AV-2PFC3 Categories: ,

Description

The Sanitary 3-way Full Port Ball Valve with Tri-clamp Ends have sanitary tri-clamp end connections. They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Application

AV-2PFC-3T series is a pneumatic type sanitary 3-way ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-2PFC-3T ball valve operates automatically by actuators.

Specification

Type

Ball Valve

Reference No.

AV-2PFC-3T

Sizes

1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections

Tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

3-way body

T type or L type for choose from

Actuator

Aluminum material, horizontal type or 304 material, vertical type, NC/NO/AA type for choose from

Air supply pressure

70-116psi (5-8bar)

Options

End connection can be butt-welded, sanitary tri-clamp, threaded others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

* NC operated: normally closed (fail closed)—air to open, spring to close
* NO operated: normally open (fail open)—air to close, spring to open
* AA operated: double acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

actuators

Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

Technical Parameters

Steel material

Product wetted steel parts

AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report

Other steel parts

AISI 304

Seal material

Standard

Teflon (PTFE)

All seal materials comply with FDA 21CFR117.2600

Options

NA

Pressure

Working pressure

≤145psi (10bar)

Supply pressure for air actuator

70 ~ 116psi (5 ~ 8bar)

Temperature

Working temperature

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra 32 ~ 64µin (0.8 ~ 1.6µm)

Connection

End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Actuator

Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.
