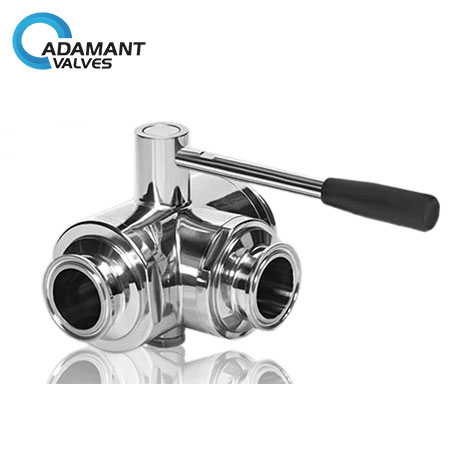

AV-2MFC3 Sanitary Stainless Steel 3-way Ball Valve with Tri-clamp Ends, Manual Type

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2MFC-3T

Sizes

1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

Valve body: AISI 304 or AISI 316L;

Valve seat: Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

 -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Actuator

3-way body as the product photo shows, T type or L type for choose from

Handle

180°rotary handle

SKU: AV-2MFC3 Categories: ,

Description

Stainless steel sanitary 3-way ball valves are used in a wide variety of high-pressure applications. A full, unrestricted flow allows no product restrictions through the valve, allowing easy diversion. We offer three-way ball valves made of T316 (CF8M) stainless steel with PTFE seats that are easily removed. Clamp and weld ends are standard. Other connections are available upon request.

Application

AV-2MFC-3T series is a manual type sanitary 3-way ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-2MFC-3T ball valve operates manually by 180°rotary Handle.

Specification

Type

Ball Valve

Reference No.

AV-2MFC-3T

Sizes

1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

Valve body: AISI 304 or AISI 316L;

Valve seat: Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

 -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Actuator

3-way body as the product photo shows, T type or L type for choose from

Handle

180°rotary handle

 Options

End connection can be butt-welded, sanitary tri-clamp, threaded others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

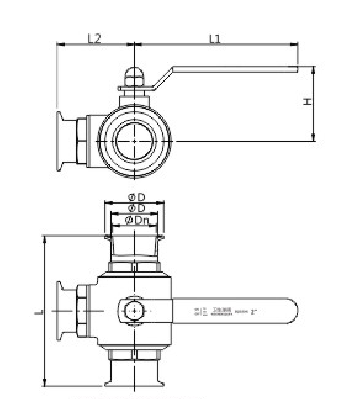

valve SIZE Dn D D1 L L1 L2 H
3/4″ 15.8 19.1 25.2 101 120 55 59
1″ 22.1 25.4 50.5 120 132 61 70
1.25″ 28.5 31.8 50.5 130 136 60.5 73
1.5″ 34.8 38.1 50.5 153 160 73 80
2″ 47.5 50.8 64 164 178 84 80
2.5″ 60.2 63.5 77.5 200 225 101 104
3″ 72.9 76.2 91 210 250 105 116
3.5″ 84.7 88.9 106 231 268 106.5 135
4″ 97.4 101.6 119 260 300 132 151

Technical Parameters

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
