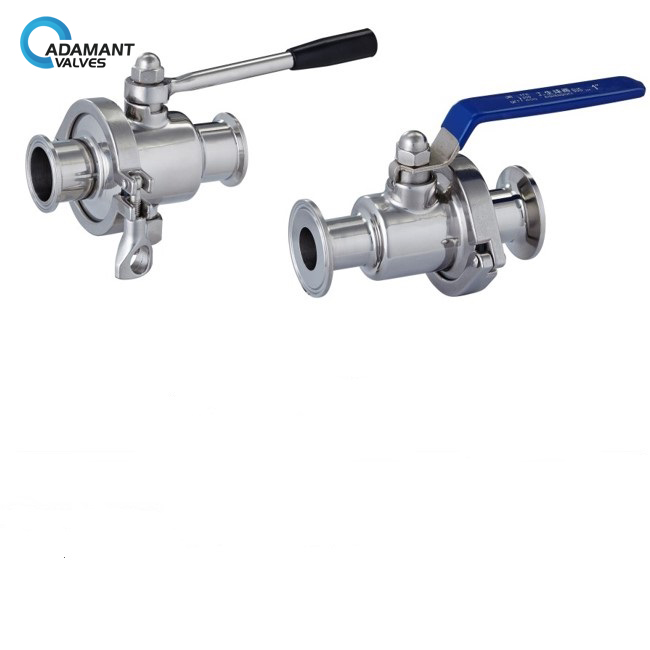

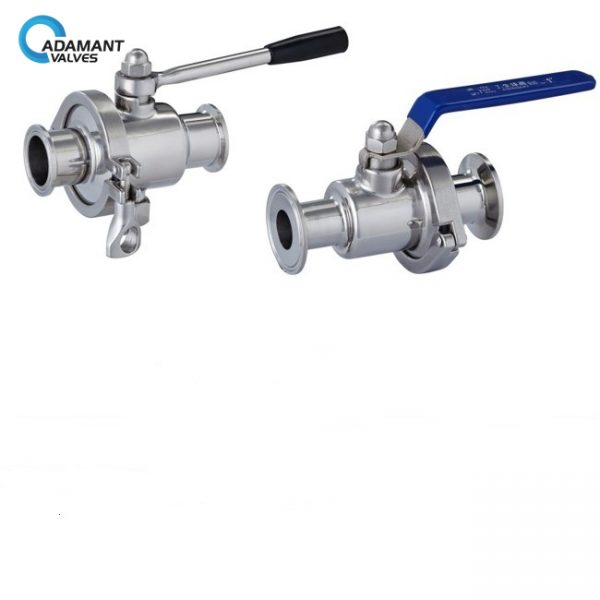

AV-2MCC Sanitary Cavity Filled Ball Valve with Tri-clamp Ends, Manually Operated

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2MCC

Sizes

1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Cavity Filled Teflon (PTFE) + Silicone

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C)

End connections

tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

SKU: AV-2MCC Categories: ,

Description

The manual operated sanitary cavity filled ball Valve is a series specially designed for Pharmaceutical and food and beverage applications. It has cavity filler seats and Tri-clamp ends to minimize where media can collect. The inner diameter of the end connections is the same as the ID of the ball, ensuring no obstruction of flow from the inlet to outlet. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Application

AV-2MCC series is also known as non-retention ball valve. Its valve body design prevents the medium from retaining inside after medium flow. This ball valve is designed for pharmaceutical and biotechnology industries.

Specification

Type

Ball Valve

Reference No.

AV-2MCC

Sizes

1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Cavity Filled Teflon (PTFE) + Silicone

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C)

End connections

tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

ptfe cavity filled silicone

Options

The valve seat is Teflon (PTFE) + Silicone as default, it can also be Teflon (PTFE) + Viton (FPM), all complying with FDA 21CFR177.2600.

End connection can be butt-welded or sanitary tri-clamp, others are available upon request.



Technical Parameters

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) + Silicone All seal materials comply with FDA 21CFR117.2600
Options Teflon (PTFE) + Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C).
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded or sanitary tri-clamp, others are available upon request.
