Stainless Steel Sanitary Butterfly Valves

What is the sanitary butterfly valve?

Sanitary butterfly valve, also called a hygienic butterfly valve, is a type of flow control device. It is a form of Butterfly Valves whose valve body, valve disc, and other components are fabricated out of stainless steel. Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

Type: Butterfly Valve
Reference No.: AV-1
Sizes: 1″ – 4″
End Types: Tri-Clamp, Pull Handle
Grades: 304 – 316L
Operation: Manual, Pneumatic

Adamant Valves AV-1 series stainless steel sanitary butterfly valves use:

AV-1 series stainless steel sanitary butterfly valves are widely used to the petroleum, metallurgy, plumbing, food, biopharmaceutical, and chemical industries;

AV-1 series stainless steel sanitary butterfly valve, sanitary fittings are high-quality products. They can be used for dairy, pharmaceutical, beer, beverage, edible oil, and other industries to meet their professional requirements.

Adamant Valves AV-1 series stainless steel sanitary butterfly valves advantages:

AV-1 series sanitary butterfly valve has many advantages such as removable connection, simple structure, and easy maintenance;
AV-1 series butterfly valve rubber seals and valve plates are high-quality pieces to ensure the use of performance and service life;
Adamant valves can provide valve body and disc materials such as AISI 304 or AISI 316L, 304L and 316 materials, automated or manual operation valve according to your requests.

Showing 1–9 of 14 results

AV-1EC Sanitary Actuated Butterfly Valve, Electric Operation

Specification Type Butterfly Valve Reference No. AV-1EC Sizes 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") Diameter Nominal DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Valve material...

AV-1MCL Sanitary Butterfly Valves with Tri-clamp Ends, SS Lever Handle

Specification: Reference No. : AV-1MC-SL Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Material: Valve body and disc material can...

AV-1MCP Sanitary Tri-clamp Butterfly Valves with Pull Handle

Specification Type Butterfly Valve Reference No. AV-1MC-P Sizes 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") Diameter Nominal DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Valve...

AV-1MF Sanitary Flange Butterfly Valves with Pull Handle

Specification Size 1/2”-10”(DN10-DN200) Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat. Working pressure Up to 145psi (10bar) for DN15/0.5″-DN100/4″, 116psi (8bar) for DN125/5″-DN150/6″, 73psi (5bar) for DN200/8″ Material Valve body and disc...

AV-1MI Sanitary I-line Butterfly Valves with Pull Handle

Specification: Reference No. : AV-1MI-P Sizes available: 1'' to 6'' (1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6") DN25 - DN150 (DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150) Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials...

AV-1MT Sanitary Thread Butterfly Valves with Pull Handle

Specification Type Butterfly Valve Reference No. AV-1MT-P Sizes 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 - DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve body material AISI 304 or AISI 316L, 304L and 316 materials...

AV-1MW Sanitary Butt-weld Butterfly Valve with Pull Handle

Specification  Type Butterfly Valve Reference No. AV-1MW-P Sizes 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") Diameter Nominal DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Valve...

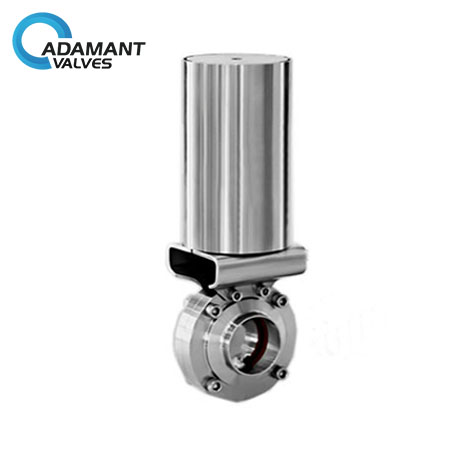

AV-1PC Sanitary Pneumatic Butterfly Valve Actuator with Tri-clamp Ends

Specification Type Butterfly Valve Reference No. AV-1PC Sizes 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12")1" to  4" (1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 - DN300 (DN15, DN20, DN25, DN40, DN50,...

AV-1PF Sanitary Butterfly Valves with Flange Ends, Pneumatic Operation

Specification: Reference No. : AV-1PF Sizes available: 1" - 10" (1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10") DN25 – DN250 (DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250) Material: Valve body and disc material can be AISI 304 or AISI 316L,...
