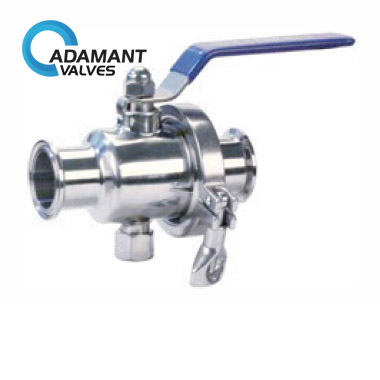

AV-2NR Non-Retention Ball Valve With Drain
Availability :
In stock
Design Features:
- Valve bodes combined with clamp connection.
- Easily disassembled without special tools.
- Small Operating torque.
- With cleaning and drainage port.
- Seal Material: PTFE.it is according to FDA 177.2600
- Connection: clamp, weld, thread
- Size:1/2′-4″/DN15-DN100
- Standard: 3A, DIN, SMS, IDF, RJT, BPE, ISO
- The valve body can be replaced in any connections, and the length will not change.
Non-Retention Ball Valve With Drain Description
Non-Retention Ball Valve With Drain is applied to the pharmacy and biotechnology industries.

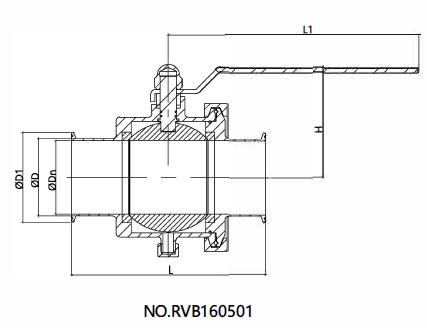

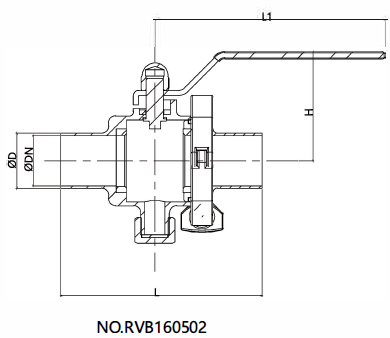

Non-Retention Ball Valve With Drain Specifications
| Size | ∅Dn | ∅D | ∅D1 | L | L1 | H |
| 1/2″ | 9.4 | 12.7 | 25.2 | 90 | 110 | 60 |
| 3/4″ | 15.8 | 19.2 | 25.2 | 93 | 114 | 62 |
| 1″ | 22.1 | 25.4 | 50.5 | 124 | 140 | 63 |
| 1.25″ | 28.5 | 31.8 | 50.5 | 128 | 140 | 70 |
| 1.5″ | 34.8 | 38.1 | 50.5 | 139 | 160 | 75 |
| 2″ | 47.5 | 50.8 | 64 | 165 | 175 | 94 |
| 2.5″ | 60.2 | 63.5 | 77.5 | 190 | 225 | 121 |
| 3″ | 72.9 | 76.2 | 91 | 210 | 250 | 126 |
| 4″ | 97.4 | 101.6 | 119 | 260 | 333 | 147 |
Non-Retention Ball Valve With Drain Applications
Non-Retention Ball Valve With Drain is applied to the pharmacy and biotechnology industries.
