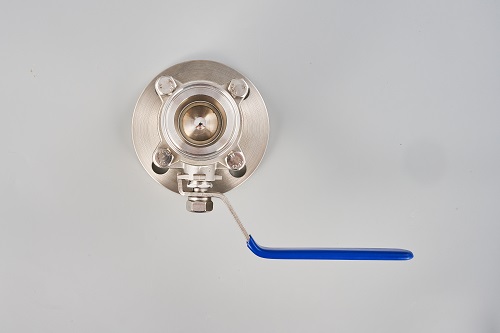

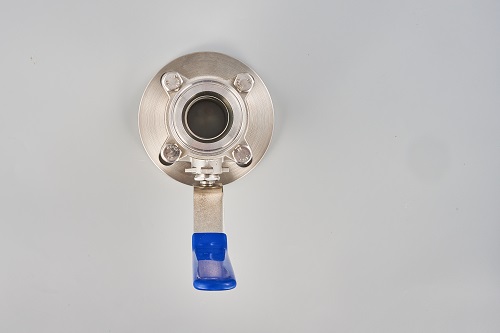

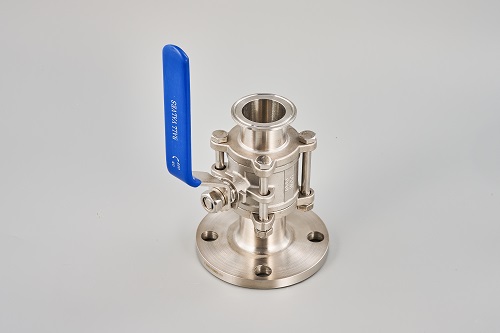

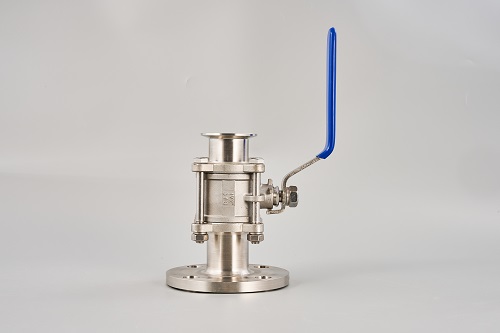

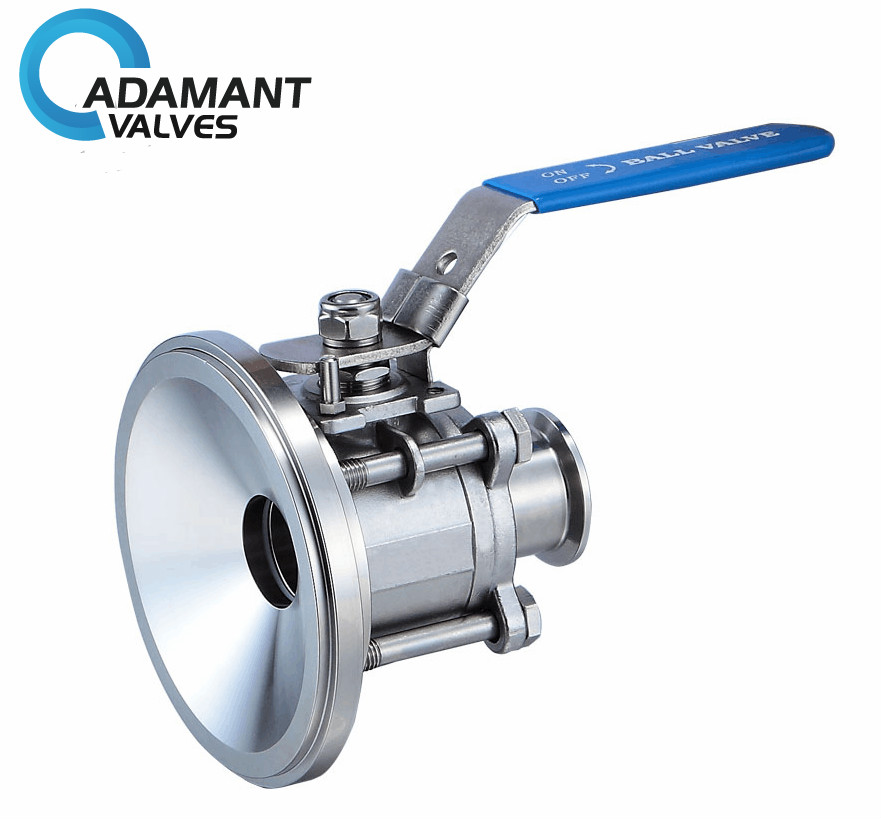

AV-10MB Sanitary Manual Tank Bottom Ball Valve, Tri-clamp

Availability : In stock

Specification:

Size 1″-4″/DN25-100
Working pressure 0-10 bar (145psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI, 316L
Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
Sealing material PTFE
Connection Sanitary tri-clamp, flanged, welded, or others upon request
Surface Ra 16-32 µ in (0.4-0.8 µm)
Standards 3A, DIN, SMS, IDF, ISO

Sanitary Manual Tank Bottom Ball Valve Materials:

Product wetted steel parts: AISI 316L

Other steel parts: AISI 304

FDA Seal: PTFE, all seals complying with FDA 21CFR177.2600.

Sanitary Manual Tank Bottom Ball Valve Design Features:

  • Easy to operate.
  • Low fluid resistance.
  • Lightweight and small volume.
  • Body style: three-piece
  • Various standards: DIN, ISO/IDF, BS/RJT, etc.
  • End connections: Sanitary Clamp, Flanged, or others upon request.
  • Both manual and pneumatic operations available as customers require.
  • Pneumatic head with or without C-top and position sensor.

Sanitary Manual Tank Bottom Ball Valve Specification:

Size 1″-4″/DN25-100
Working pressure 0-10 bar (145psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI, 316L
Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
Sealing material PTFE
Connection Sanitary tri-clamp, flanged, welded, or others upon request
Surface Ra 16-32 µ in (0.4-0.8 µm)
Standards 3A, DIN, SMS, IDF, ISO

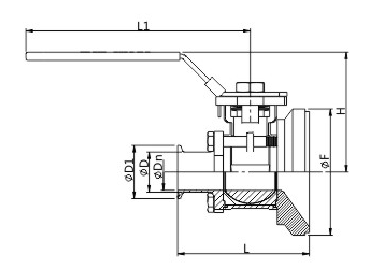

Manual tank bottom ball valve

Size φDn φD φD1 φF L L1 H
1″ 22.1 25.4 50.5 120 106 170 78
1.5″ 34.8 38.1 50.5 120 125 173 98
2″ 47.5 50.8 64 150 140 173 107
2.5″ 60.2 63.5 77.5 180 155 223 130
3″ 72.9 76.2 91 212 178 335 153
4″ 97.4 101.6 119 248 210 335 169

Sanitary Manual Tank Bottom Ball Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

actuator

Sanitary Manual Tank Bottom Ball Valve Application:

Sanitary pneumatic tank bottom ball valves are widely used in the industries with high hygiene requirements such as food, beverages, dairy products, biopharmaceuticals, etc.
