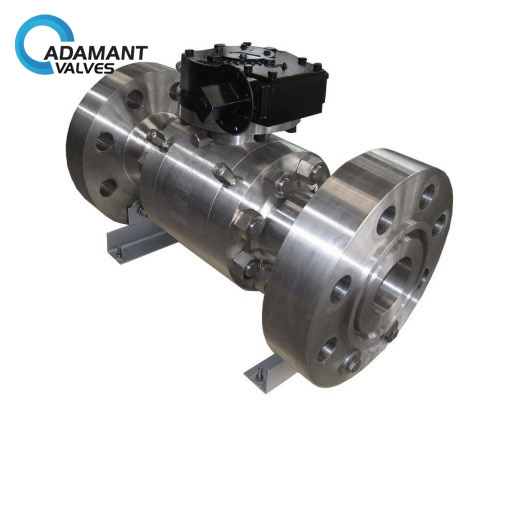

AV-2TB 11100 Series Trunnion Ball Valve

Availability : In stock

Body Materials: 316/316L Stainless Steel, 304/304L Stainless Steel, Carbon Steel, Low Temp Carbon Steel, Various Alloys

Ball & Stem Material: 316/316L Stainless Steel, 304/304L Stainless Steel, Various Alloys

Operating Temperature Range: 15°F to 200°F

Maximum Operating Pressure: 150 PSI

Size: 2” through 28”

Standards: ASME B16.34, API 6D, API 598, API 607, NACE MR0175/ISO 15156

SKU: AV-2TB Category:

11100 Series Trunnion Ball Valve Description

11100 Series Trunnion Ball Valve is made from forged alloys, it is most common in 316 stainless steel and carbon steel. It is available from 2” through 28” with a full port ball to minimize the pressure drop across the valve. The valves are available with a choice of ANSI Class 150 through Class 2500 RF or RTJ flanges or butt weld end connections. The valve design and fire-safe feature conform to API 607, API 6D, and ASTM standards B16.34, B16.5, and B16.10.  The extended bonnet adds a level of safety by ensuring that the operator is sufficiently removed from the cold service lines. Larger valves will require a gear operator, and pneumatic or electric actuator to ensure smooth and effortless operation.

11000 series is a 3-piece trunnion ball valve designed to complement our floating ball offerings and is aimed at the higher pressure and larger valve size markets.

11100 Series Trunnion Ball Valve Specifications

Body Materials: 316/316L Stainless Steel, 304/304L Stainless Steel, Carbon Steel, Low Temp Carbon Steel, Various Alloys

Ball & Stem Material: 316/316L Stainless Steel, 304/304L Stainless Steel, Various Alloys

Operating Temperature Range: 15°F to 200°F

Maximum Operating Pressure: 150 PSI

Size: 2” through 28”

Standards:

ASME B16.34, API 6D, API 598, API 607, NACE MR0175/ISO 15156

Ends:

Flanged (150#, 300#, 600#, 900#, 1500# & 2500#), Butt Weld



For more information, please contact us.

11100 Series Trunnion Ball Valve Applications

11100 Series Trunnion Ball Valve is used for fire safety. The extended bonnet adds a level of safety by ensuring that the operator is sufficiently removed from the cold service lines. Larger valves will require a gear operator, and a pneumatic or electric actuator to ensure smooth and effortless operation.
