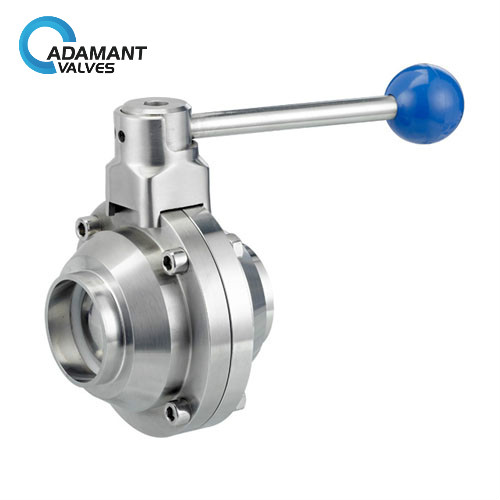

AV-2MBC Sanitary Butterfly-type Ball Valve With Welded Ends, Manual Type

Availability : In stock

Specifications:

Size 1″-4″/DN25-100
Working temperature EPDM(-40 ~ +120°C)
Working pressure 0-10 bar (0-145psi)
Body Material 316L/304
Sealing material EPDM,VMQ,FPM
Connection Tri-clamp, Welded, thread, flange
Finishing Polished
Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO
SKU: AV-2MBC Category:

Sanitary Butterfly-type Ball Valve Description:

Butterfly-type ball valve handles the viscous and particulate matter well, so it is popular in food, beverage, wine, and other fields. The Butterfly-type ball valve can be remotely controlled by electric actuators or pneumatic actuators, and can also be manually manipulated with the handle.

 Sanitary Butterfly-type Ball Valve Specifications:

Size 1″-4″/DN25-100
Working temperature EPDM(-40 ~ +120°C)
Working pressure 0-10 bar (0-145psi)
Body Material 316L/304
Sealing material EPDM,VMQ,FPM
Connection Tri-clamp, Welded, thread, flange
Finishing Polished
Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO

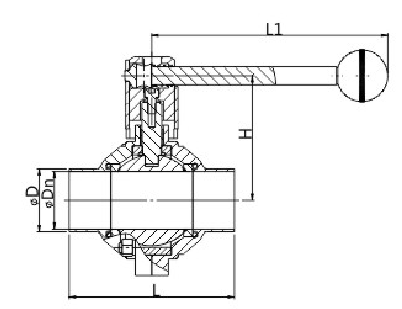

manual butterfly ball valve

SIZE φDn φD φD1 L L1 H K×K
1/2″ 9.4 12.7 25.2 70 143 60 10×10
3/4″ 15.8 19.1 25.2 70 143 60 10×10
1″ 22.1 25.4 50.5 85 143 68 10×10
1.25″ 28.5 31.8 50.5 85 143 68 10×10
1.5″ 34.8 38.1 50.5 100 143 75 10×10
2″ 47.5 50 64 110 143 85 10×10
2.5″ 60.2 63.5 77.5 125 143 107 10×10
3″ 72.9 76.2 91 135 186 117 11×11
4″ 97.4 101.6 119 170 215 140 14×14

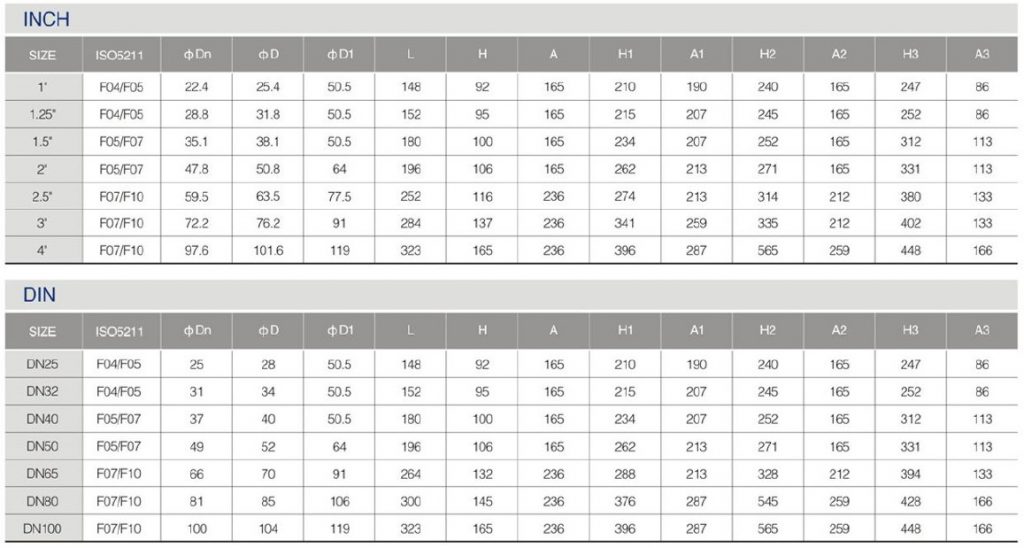

sanitary butterfly type ball valve

Sanitary Butterfly-type Ball Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

Sanitary Full Port Ball Valves actuators

Sanitary Butterfly-type Ball Valve Applications:

PDF

/wp-content/uploads/2016/01/AV-2-Sanitary-Ball-Valves.pdf
