AV-2NR Non-Retention Ball Valve With Drain
Design Features: Valve bodes combined with clamp connection. Easily disassembled without special tools. Small Operating torque. With cleaning and drainage port. Seal Material: PTFE.it is according to FDA 177.2600 Connection: clamp, weld, thread Size:1/2'-4"/DN15-DN100 Standard: 3A, DIN, SMS, IDF, RJT, BPE, ISO The valve body...
AV-2PBC Sanitary Butterfly-type Ball Valve With Welded Ends, Pneumatic Type
Specifications: Size 1"-4"/DN25-100 Working temperature EPDM(-40 ~ +120°C) Working pressure 0-10 bar (0-145psi) Body Material 316L/304 Sealing material EPDM,VMQ,FPM Connection Tri-clamp, flanged, welded, or others upon request Finishing Polished Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO
AV-2PCB High Performance Cryogenic Ball Valves, 304 Body, Pneumatic Operator
Specifications: Size DN15-DN250 Working temperature -196°C, -46°C Working pressure PN 1.6Mpa Body material LCB/ 304 Valve ball material 304 Sealing material PTFE Connection Flange Medium Liquid oxygen, liquid hydrogen , etc.
AV-2PEC Sanitary Encapsulated 3 Piece Ball Valve with Tri-Clamp Ends, Electric Type
Specification Type Ball Valve Reference No. AV-2PEBC Sizes 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4" Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve material Valve body: AISI 304 or AISI 316L; Valve seat: Encapsulated...
AV-2PFBC Sanitary 3-Way Pneumatic Full Bore Ball Valve With Tri-Clamp Ends
Specifications: Size 1/2”-4”(DN15 - DN80) Working temperature -20°C - +150°C Working pressure 10 Bar (145psi) Body material 304, 316L Sealing material EPDM, VMQ, FPM Connection Tri-clamp, welded, threaded Finishing 0.4-0.8 μm Standards 3A, DIN, SMS, IDF, RJT, BEP, ISO
AV-2PFC Sanitary Ball Valves with Tri-clamp Ends, Pneumatic Type
Specification Type Ball Valve Reference No. AV-2PFC Sizes 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve material AISI 304 or AISI 316L Valve seat Teflon (PTFE)...
AV-2PFC3 Sanitary 3-way Ball Valve with Tri-clamp Ends, Pneumatic Type
Specification Type Ball Valve Reference No. AV-2PFC3 Sizes 1" to 4" (1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100) Valve body material AISI 304 or AISI 316L. Valve seat Teflon (PTFE) Max. working pressure 145psi...

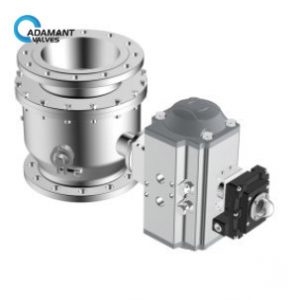

AV-2PQ Pneumatic Flange Ball Valve Q01.3
Size Size: 1/2" ~ 6"(DN15 ~ DN150) Working temperature -20 to 120℃ Medium Wastewater, cool water, hot water, oil, steam, etc Pressure 2.5bar to 8bar Connection Flange
AV-2PVF PVDF V-Port Ball Valve
Materials: PVDF Size: 1/2’’ – 6’’ Ball Angle(°): 30, 60, 90
