AV-18HM Homogeneous mixing pump PMTU

Availability : In stock

The maximum processing capacity of powder: 9000KG/h

Maximum processing of thickeners: 3000KG/h (depending on material viscosity and concentration)

Maximum temperature: 130 ° C

Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Machine seal: single machine seal and double machine seal

Inlet/outlet connections: Thread, clamp, flange, sterile flange

Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;

SKU: AV-18HM Category:

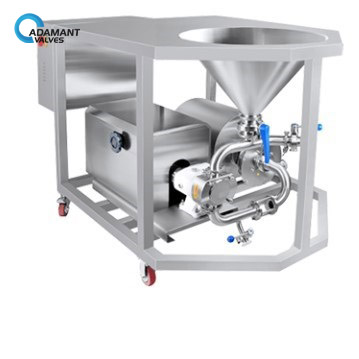

Homogeneous mixing pump PMTU Description

Homogeneous mixing pump PMTU series is a multifunctional material-liquid mixing pump with functions of mixing, shearing, emulsifying, homogenizing, differentiating, refining, crushing, and material improvement. Compare with the traditional production process, this pump is simpler, more convenient, and economical, it can improve the production efficiency& improve the quality of the materials to be treated.

Homogeneous mixing pump PMTU Specifications

The maximum processing capacity of powder 9000KG/h
Maximum processing of thickeners 3000KG/h
Maximum temperature 130 ° C
Material 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal single machine seal and double machine seal
Inlet/outlet connections Thread, clamp, flange, sterile flange



Lobe Pump Emulsifying Homogenizing Pump Inlet Outlet Hopper capacity

(L)

Weight (kg)
Speed Speed
Lobe Pump Power (Kw) Homogenizing Pump Power (kw)
TUR-25 4 JZ1-13D 5.5 2″-DN50 1.5″-DN40 45L 563
TUR-30 4 JZ1-15D 7.5 2″-DN50 1.5″-DN40 45L 606
TUR-35 5.5 JZ1-17D 11 2″-DN50 2″-DN50 45L 702
TUR-60 7.5 JZ1-19D 15 3” 2″-DN50 65L 436
TUR-70 11 JZ1-21D 18.5 3”-DN80 2.5″-DN65 65L 1016
TUR-100 15 JZ1-24D 22 4″-DN100 2.5″-DN65 65L 1076

homogeneous mixing pump

Homogeneous mixing pump PMTU Applications

Mainly used in food, beverages, dairy products, additives, personal care, biopharmaceuticals, thickeners, industrial applications.

Related products: AV-18 AVZ SANITARY ROTARY LOBE PUMPS, AV-18AVB SANITARY LIQUID RING PUMPS, AV-23SSP SANITARY SELF-PRIMING PUMP
