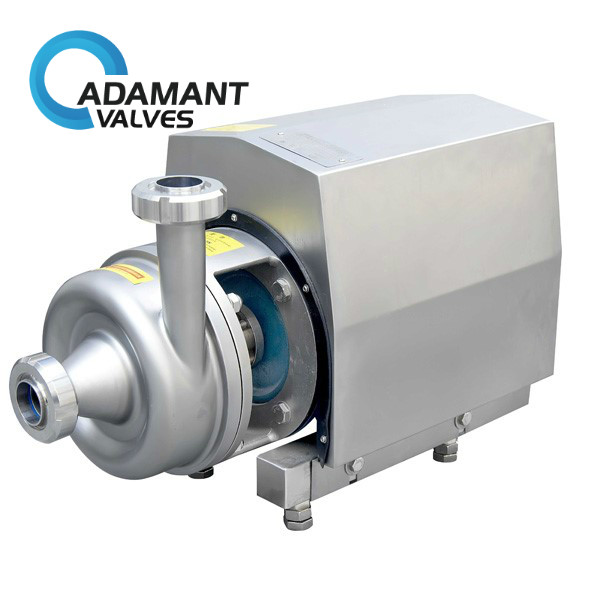

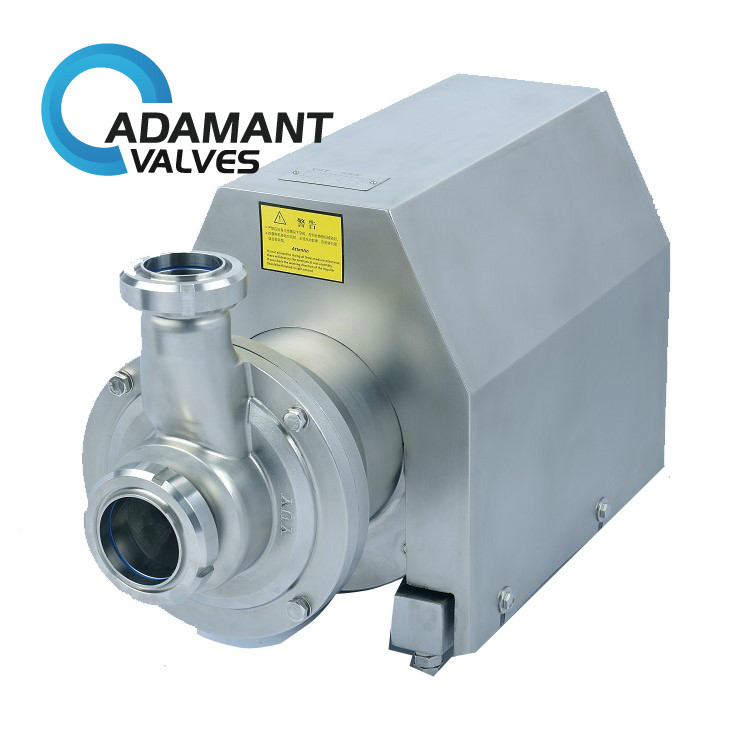

AV-23SSP Sanitary Self-priming Pump

Availability : In stock

Specifications:

Material	SS304 or SS316L
Flow rate	7-30 m3/h
Max lift head	24M
Suction head	6-8M
Motor power	2.2-7.5KW
Temperature	0-140 ℃
Mechanical seal type	Single mechanical seal C/SIC/EPDM
Motor type	Normal(ABB or Chinese brand)
Motor cover	Round/Square
Voltage	110v,220v,380v,420v
Connection type	Clamp/Union/Flange

SKU: AV-23SSP Category: Sanitary Pumps

Sanitary Self-priming Pump Description:

Sanitary Self-Priming Pump is a hygienic side-channel design sanitary pump, it is applicable to food processing, biopharma, and chemical industries. A self-priming pump is specially designed for pumping materials containing air or gas, and it can be also be used for negative suction with prior priming as well as with filtration equipment. A Sanitary self-primping pump can be used for wine, fine oil, syrups, volatile products such as alcohol, acetone, and other solvents, or other materials that temperature close to boiling point. However, the mainly using field of self-priming pump is for CIP returning.

Sanitary Self-priming Pump Specifications:

Material	SS304 or SS316L
Flow rate	7-30 m3/h
Max lift head	24M
Suction head	6-8M
Motor power	2.2-7.5KW
Temperature	0-140 ℃
Mechanical seal type	Single mechanical seal C/SIC/EPDM
Motor type	Normal(ABB or Chinese brand)
Motor cover	Round/Square
Voltage	110v,220v,380v,420v
Connection type	Clamp/Union/Flange

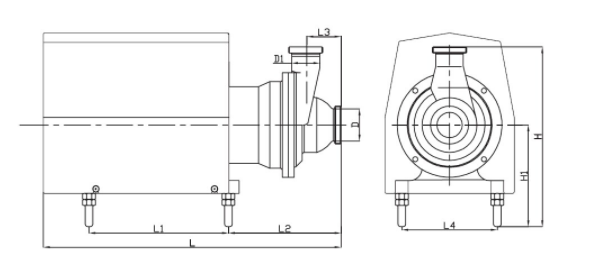

Size	L	L1	L2	L3	L4	H	H1	D	D1
4	610	300	192	77	160	342	209	50.5	38.1
8	610	300	192	77	160	342	209	50.5	50.8
10	650	300	278	81	190	406	221	63.5	50.8
20	710	330	267	81	216	426	241	63.5	63.5
30	750	368	267	81	216	426	241	76.2	63.5
