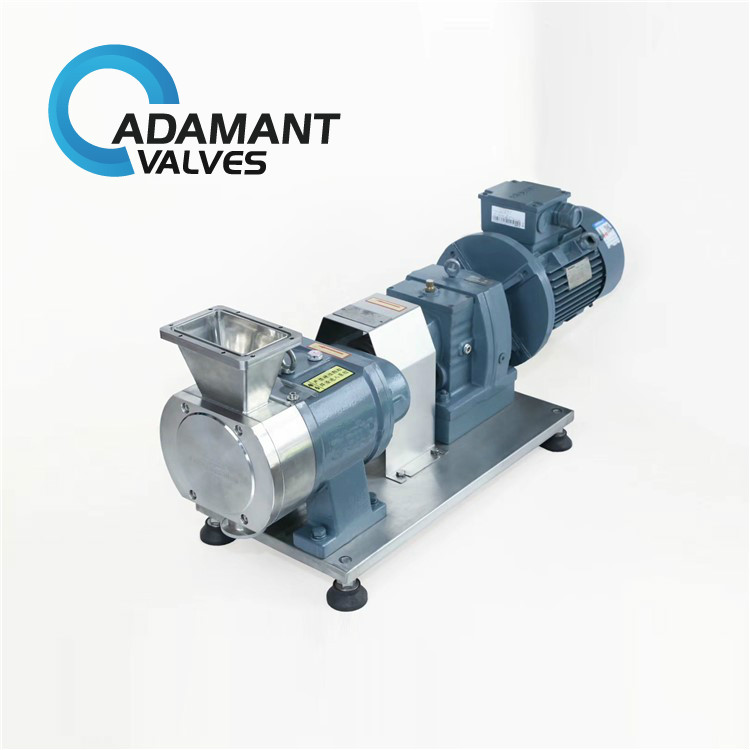

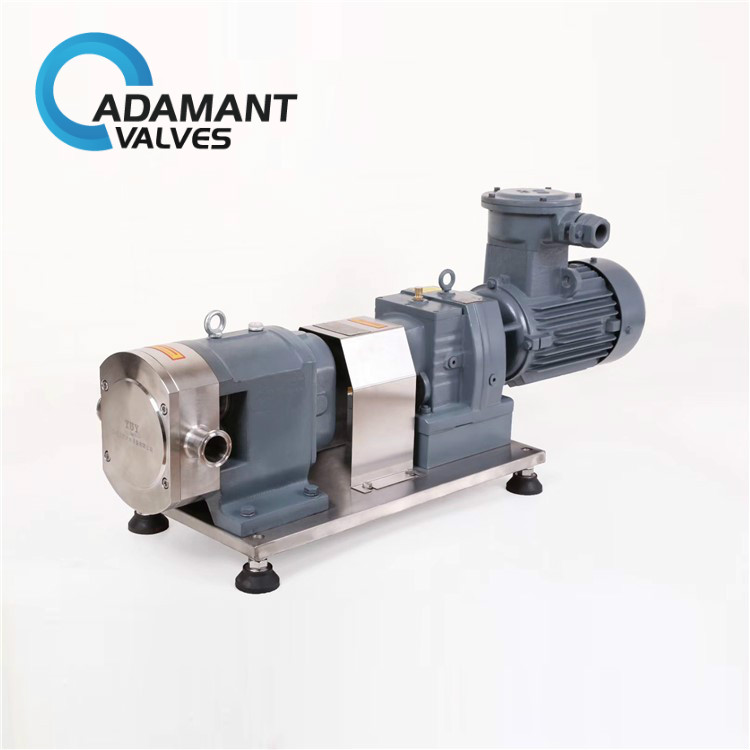

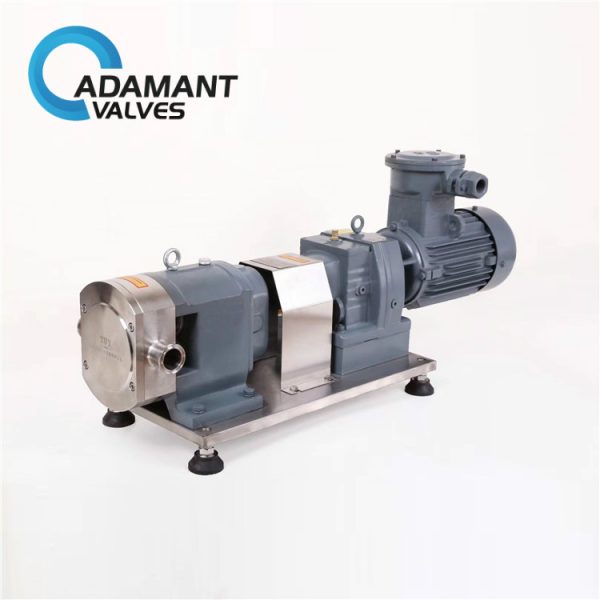

AV-23SRLP Sanitary Rotary Lobe Pumps

Availability : In stock

Specifications:

Material	AISI 316L or AISI 304
Standard	SMS, DIN, RJT, ISO/IDF
Connection Way	Clamp, Male, Flange, Weld
Mechanical Seal	C, SIC, EPDM
Power	1.5Kw
Rate	50Hz or 60Hz
Max. Flow	62m³/h / 272GPM
Max. Pressure	0.1-1.2Mpa
Max.Working Temperature	120℃ / 248 ℉
Max. Rev.	1450rpm

SKU: AV-23SRLP Category: Sanitary Pumps

Sanitary Rotary Lobe Pumps Description:

A positive displacement pump of a sanitary design suitable for use in the dairies, food-processing, beverage, cosmetics, pharmaceutical, and fine chemicals industries. This rotary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. Products containing fragile solids can be pumped without damage thanks to the specially designed lobes.

Sanitary Rotary Lobe Pumps Specifications:

Material	AISI 316L or AISI 304
Standard	SMS, DIN, RJT, ISO/IDF
Connection Way	Clamp, Male, Flange, Weld
Mechanical Seal	C, SIC, EPDM
Power	1.5Kw
Rate	50Hz or 60Hz
Max. Flow	62m³/h / 272GPM
Max. Pressure	0.1-1.2Mpa
Max.Working Temperature	120℃ / 248 ℉
Max. Rev.	1450rpm

Sanitary Rotary Lobe Pumps Applications:

The Sanitary Rotary Lobe Pumps basically consists of two lobe rotors which rotate synchronously inside a casing without touching each other. As the rotors rotate, the spaces between the lobes and the casing are successively filled with the product, which is transported to the discharge nozzle with a fixed amount of displacement. The pumped fluid forms a continuous stream thanks to the tolerances between the lobes and the pump casing, thus ensuring an efficient pumping.
