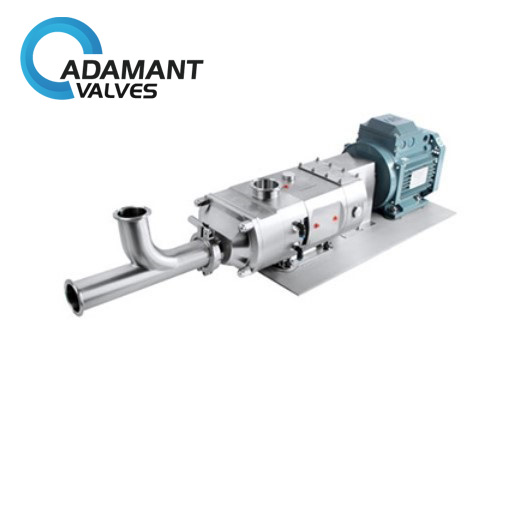

AV-18TP Twin-screw Pump Inlet Tee

Availability : In stock

Max flow: 110m³/h

Max Particles: 23mm

Max pressure: 20 bar

Speed range: 10-3500 R.P.M

Working temperature (Max Temperature): -40℃ to 150℃

Surface treatment: Ra≤0.6μm; EP=Ra0.4μm

Material: 100% stainless steel, medium contact part 316L.

SKU: AV-18TP Category: Sanitary Pumps

Twin-screw Pump Inlet Tee Description

The Twin-screw Pump has the self-priming ability and can transport various complex conditions such as solid particles, gas-liquid mixture, high viscosity, low viscosity, and material transportation and extraction. It is not only used for material extraction and conveying, but also applicable to CIP and SIP systems, it can reduce pipeline, valve control, CIP dedicated pumps, Not only improving efficiency but also reducing costs. The pump also has the performance that other volumetric pumps do not have, such as no pulse phenomenon, no damage to particles, high pressure, speed range, and large flow range.

Twin-screw Pump Inlet Tee Specifications

Max flow:	110m³/h
Max Particles:	23mm
Max pressure:	20 bar
Speed range:	10-3500 R.P.M
Working temperature (Max Temperature):	-40℃ to 150℃
Surface treatment:	Ra≤0.6μm; EP=Ra0.4μm
Material:	100% stainless steel, medium contact part 316L.

Twin-screw Pump Inlet Tee Applications

It can transport various complex conditions such as solid particles, gas-liquid mixture, high viscosity, low viscosity, and material transportation and extraction.
