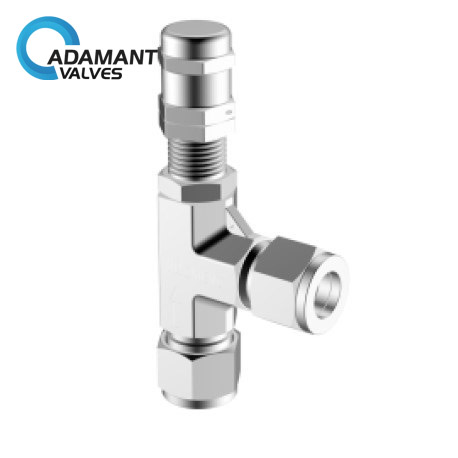

AV-5SV Sanitary Titanium Sleeve Safety Valve T03

Availability : In stock
Size 1/4”-1.5”, DN6-DN32
Working temperature -20 to 204℃
Working pressure 6000PSI-10000PSI
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Connection Double ferrule, thread, welding, etc.
SKU: AV-5SV Category:

Sanitary Titanium Sleeve Safety Valve T03 Description

Sanitary Titanium Sleeve Safety Valve T03 adopts high-pressure impact forging, and the pressure resistance can reach 50MPa. The seals are all high-performance seals, the valve seat has good wear resistance, self-lubricating performance, high-pressure resistance, high-temperature resistance, corrosion resistance, reliable quality, and long service life. In the pipeline, it automatically shuts down to protect the pipeline instrument from being damaged by pressure shocks.

Sanitary Titanium Sleeve Safety Valve T03 Specifications

Size 1/4”-1.5”, DN6-DN32
Working temperature -20 to 204℃
Working pressure 6000PSI-10000PSI
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Connection Double ferrule, thread, welding, etc.



Sanitary Titanium Sleeve Safety Valve T03 Applications

Sanitary Titanium Sleeve Safety Valve T03 is mainly used for the pressure safety of high-pressure gas and natural gas pipeline systems, and the overpressure take-off and exhaust. It is widely used in high-pressure natural gas pipelines, petrochemical pipelines, natural gas compressors, natural gas dispensers, and other pipeline systems.
