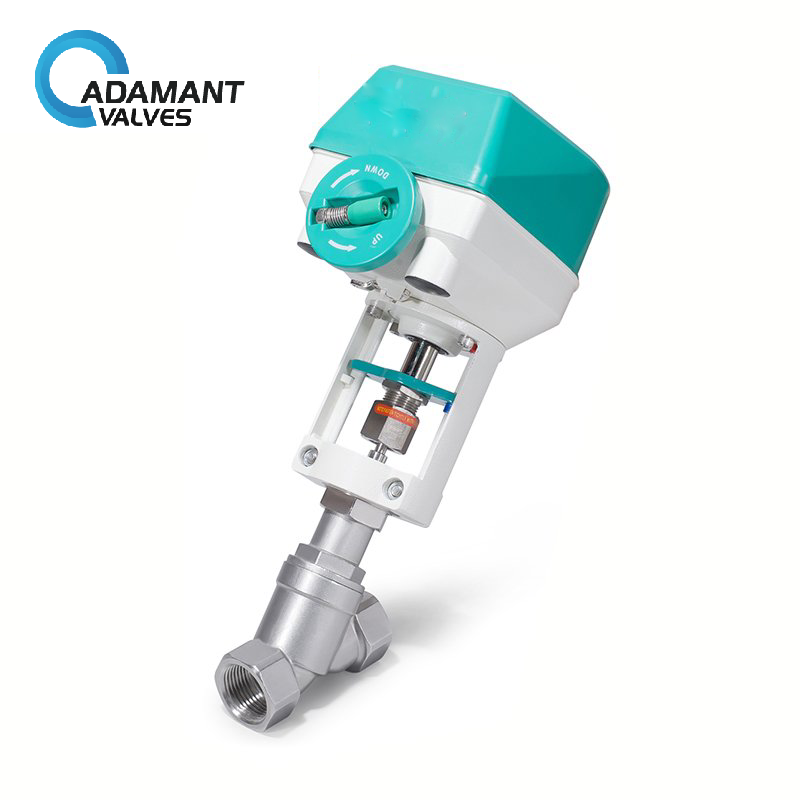

AV-5SEA Sanitary Electric Proportional Control Angle Seat Valve With Threaded Ends

Availability : In stock

Specifications:

Size DN15-DN80
Driving power 220V AC or 24V AC
Control powder 4~20 mA or 0-10V DC
Working temperature 0°C ~+50°C
Working pressure 4-7 bar(58-102 psi)
Body Material AISI 316L
Connection Threaded, welded, tri-clamp and flange
Protecting class IP54
Leakage class DIN EN 12266 A

Sanitary Electric Proportional Control Angle Seat Valve Description:

The electric actuator of the electric proportional control angle seat valve receives a 4-20 mA or a 10-10V DC electric signal to regulate the valve opening and achieve precise flow regulation with the valve cone.

Sanitary Electric Proportional Control Angle Seat Valve Specifications:

Size DN15-DN80
Driving power 220V AC or 24V AC
Control powder 4~20 mA or 0-10V DC
Working temperature 0°C ~+50°C
Working pressure 4-7 bar(58-102 psi)
Body Material AISI 316L
Connection Threaded, welded, tri-clamp and flange
Protecting class IP54
Leakage class DIN EN 12266 A

Sanitary Electric Proportional Control Angle Seat Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

available actuators

Sanitary Electric Proportional Control Angle Seat Valve Applications:

  • Foods
  • Beverage
  • Water treatment plant
  • Fluid mixing plant
  • Vacuum technology
