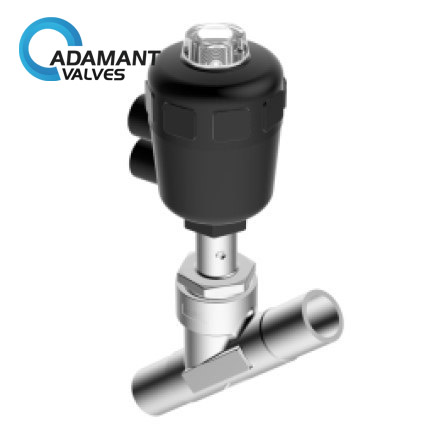

AV-5WJ Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2
Availability :
In stock
| Size | 1/2”~2 1/2” |
| Working temperature | -30 to 180℃ |
| Working pressure | 0~1.6MPa |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Flange, thread, welding, clamp |
Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2 Description
Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2 allows a very large flow rate. It can run at zero pressure difference and high medium temperature. It can also run at high viscosity and dirty medium.
Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2 Specifications
| Size | 1/2”~2 1/2” |
| Working temperature | -30 to 180℃ |
| Working pressure | 0~1.6MPa |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Flange, thread, welding, clamp |
Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2 Applications
Sanitary Titanium Pneumatic Welded Angle Seat Valve J02.2 is suitable for all liquids and gases.
