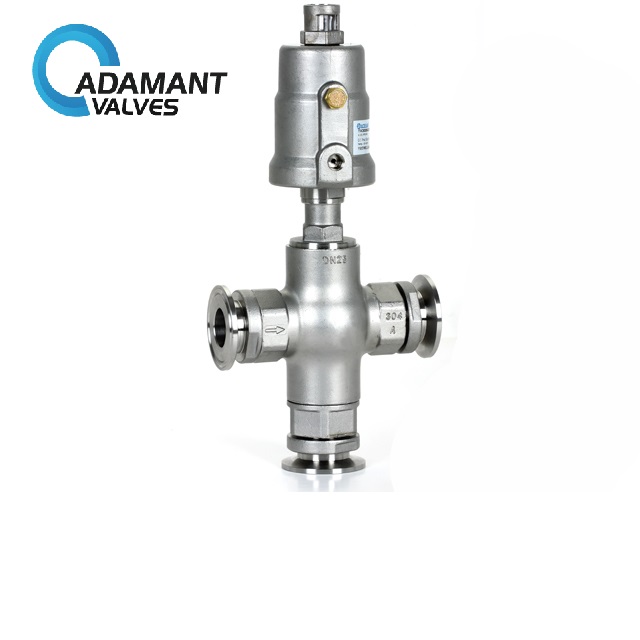

AV-5SPA3 Sanitary Pneumatic 3-Way Angle Seat Valve With Tri-Clamp Ends

Availability : In stock

Specifications:

Size DN15- DN50
Controlling pressure 3~8 bar(43.5~116 psi)
Working pressure 0~16 bar(0~232 psi)
Medium temperature -10°C – +180°C
Working temperature -10°C – +80°C
Body material 316
Cylinder material 304
Sealing material PTFE
Connection Threaded, tri-clamp
Medium Water, stream, oil, neutral liquids, organic solvent, etc.
Leakage class DIN EN 12266 A

 Sanitary Pneumatic 3-Way Angle Seat Valve Description:

The product has commutating and mixing functions, its interchangeable pressure and working interfaces for different fluid control functions such as mixing or dispersing medium. In some cases, it can replace two two-way globe valves. The valve is controlled by a pneumatic head to control the opening and closing of the valve.

 Sanitary Pneumatic 3-Way Angle Seat Valve Specifications:

Size DN15- DN50
Controlling pressure 3~8 bar(43.5~116 psi)
Working pressure 0~16 bar(0~232 psi)
Medium temperature -10°C – +180°C
Working temperature -10°C – +80°C
Body material 316
Cylinder material 304
Sealing material PTFE
Connection Threaded, tri-clamp
Medium Water, stream, oil, neutral liquids, organic solvent, etc.
Leakage class DIN EN 12266 A

sanitary pneumatic 3 way angle seat valve

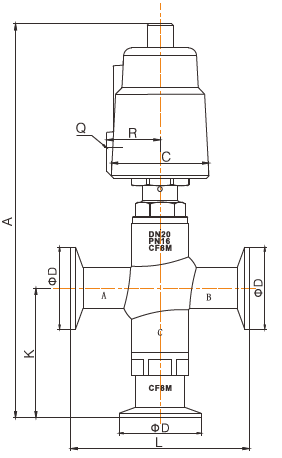

SIZE Actuator Q C R φD A K L Weight(kg)
DN15 40 1/8″ 50.5 27 34 223 80 90 0.99
DN20 50 1/8″ 60 33 50.5 246 80 90 1.48
DN25 50 1/8″ 60 33 50.5 262 90 100 1.78
DN32 90 1/8″ 106 55 50.5 373 104 130 4.75
DN40 90 1/8″ 106 55 64 381 111 150 5.45
DN50 90 1/8″ 106 55 64 408 128 160 6.65

 Sanitary Pneumatic 3-Way Angle Seat Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

available actuators

 Sanitary Pneumatic 3-Way Angle Seat Valve Applications:

  • Foods
  • Chemical industrial
  • Sterilization machines
  • Beer equipment
  • Dry- cleaning machines
