Sanitary angle seat valves are mostly used as a switch inside the automatic control system

Showing all 5 results

AV-5AS Sanitary Pneumatic Angle Seat Valves

Materials Materials: AISI-316L Size: 1/2''-2 1/2'' Valve plug and seal: Teflon (PTFE) Design Features Size: 1/2”, DN15 - DN80 Material: CF8/304, CF8M/316 Connection: Thread, clamp, flange, BSP, BSPT, NPT, DIN, or other upon request. Working pressure: 8bar, 10bar Working temperature: 120℃, 180℃

AV-5SEA Sanitary Electric Proportional Control Angle Seat Valve With Threaded Ends

Specifications: Size DN15-DN80 Driving power 220V AC or 24V AC Control powder 4~20 mA or 0-10V DC Working temperature 0°C ~+50°C Working pressure 4-7 bar(58-102 psi) Body Material AISI 316L Connection Threaded, welded, tri-clamp and flange Protecting class IP54 Leakage class DIN EN 12266 A

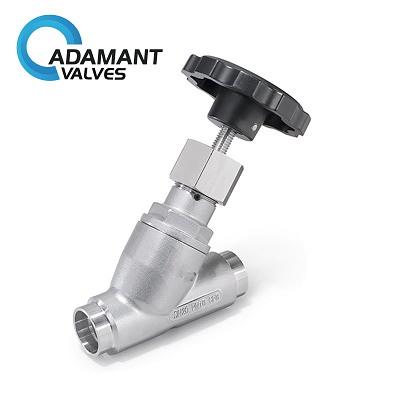

AV-5SMA Sanitary Manual Angle Seat Valves

Specification: Size  3/8" - 3", DN10-DN80 Working pressure 0-10 bar(0-145psi) Body Material CF8/304, CF8M/316 Max working temperature  120°C, 180°C Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request. Manual Plastic handwheel, Stainless steel wheel, fine-tuning handwheel

AV-5SPA Sanitary Pneumatic Proportional Control Angle Seat Valve With Threaded Ends

 Specifications: Size DN8-DN80 Medium temperature PTFE(-10 ~ +120°C) Working temperature 0 ~+60°C Working pressure 4-7 bar(58-102 psi) Body Material AISI 316 / AISI 304 Sealing material PTFE Connection Threaded, welded, tri-clamp and flange Power consumption <5 W Leakage class DIN EN 12266 A Analogue signal...

AV-5SPA3 Sanitary Pneumatic 3-Way Angle Seat Valve With Tri-Clamp Ends

Specifications: Size DN15- DN50 Controlling pressure 3~8 bar(43.5~116 psi) Working pressure 0~16 bar(0~232 psi) Medium temperature -10°C - +180°C Working temperature -10°C - +80°C Body material 316 Cylinder material 304 Sealing material PTFE Connection Threaded, tri-clamp Medium Water, stream, oil, neutral liquids, organic solvent, etc....
