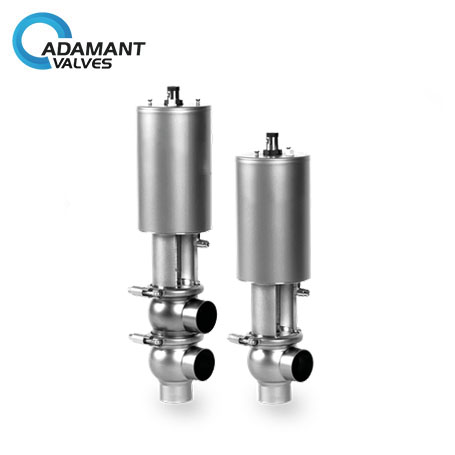

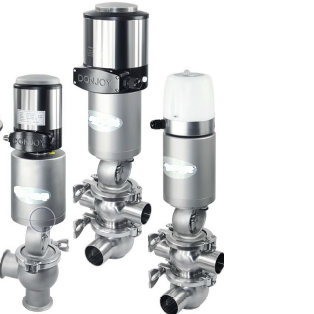

AV-5PS Sanitary Pneumatic Shutoff And Divert Valves

Availability : In stock

Materials
Materials:  AISI-316L, AISI 304
Size: 1”-4”

Seal: PTFE

Options: Silicone, EPDM, Viton

Elastomers: EPDM

Options: Viton, Silicone

Other seals: EPDM, all seals complying with FDA21CFR177.2600

Sanitary Pneumatic Shutoff And Divert Valves Application:

AV-5PS series has versatility and hygienic qualities.

Since these valves are not operated by compressed air, they have even fewer moving and spare parts. This reduces the cost of ownership further and simplifies maintenance.

Sanitary Pneumatic Shutoff And Divert Valves Materials

Materials: AISI-316L, AISI 304
Size: 1”-4”

Seal: PTFE

Options: Silicone, EPDM, Viton

Elastomers: EPDM

Options: Viton, Silicone

Other seals: EPDM, all seals complying with FDA21CFR177.2600

Sanitary Pneumatic Shutoff And Divert Valves Standard Design

  •          forged spherical body
  •          Compact design
  •          360 degree orientation
  •          Mix-proof design, the bodies can be with different diameters.
  •          Over-pressure protection design preventing the pressure fluctuate to 30bar
  •          Easy disassembly
  •          Seat lift type and cavity spray type available

Sanitary Pneumatic Shutoff And Divert Valves Actuators

Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open air to close.

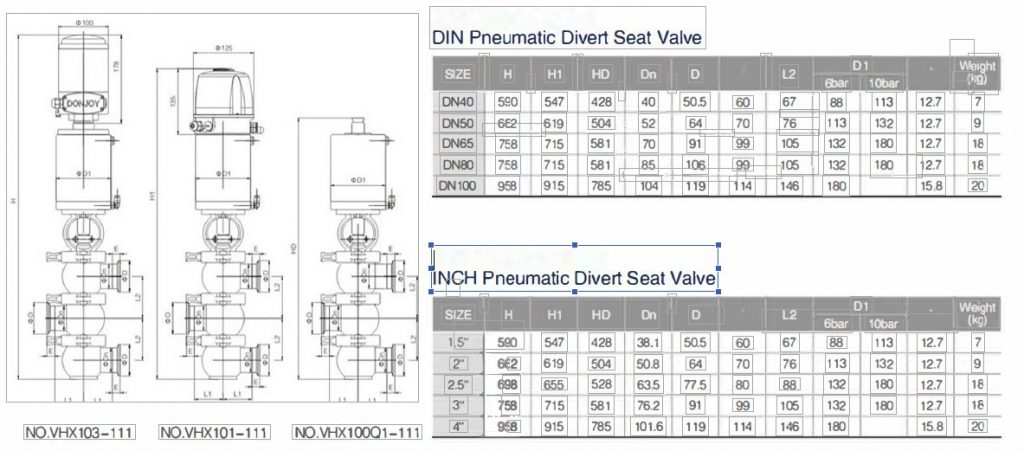

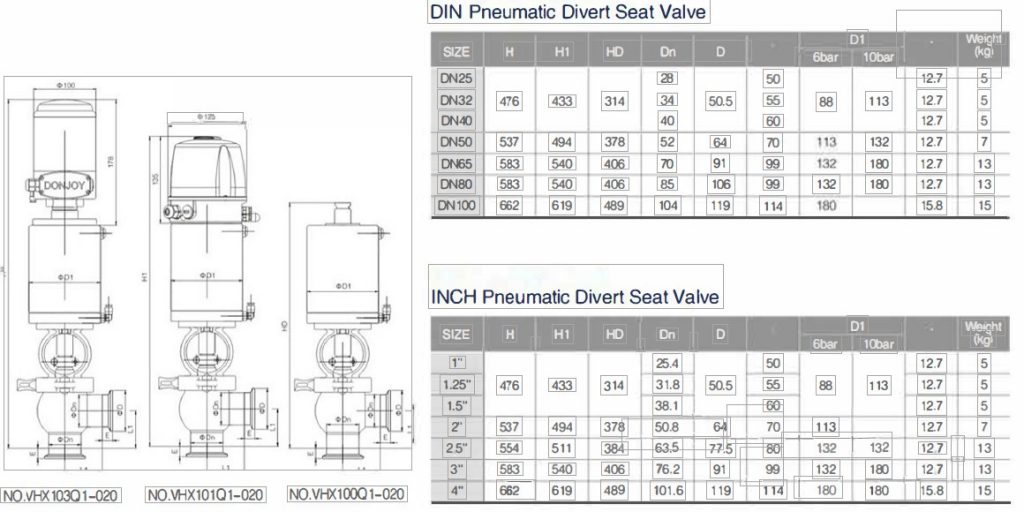

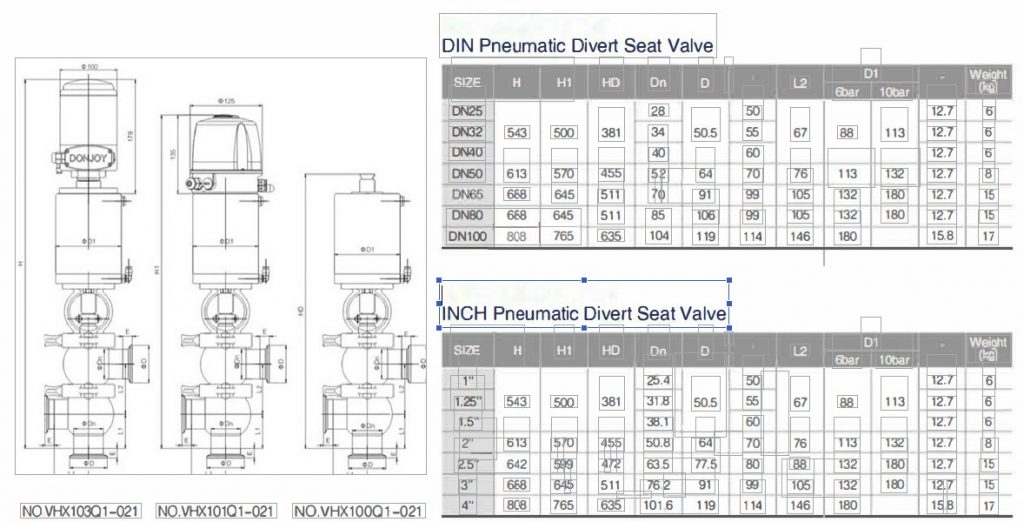

Sanitary Pneumatic Shutoff And Divert Valves Technical Specification

  •          Size available: DN25-1″ to DN100-4″
  •          Max. working pressure: 145psi (10bar)
  •          Control air pressure: 70 ~ 102psi (5 ~ 7bar)
  •          Working temperature range: EPDM: 14 ~ 248°F (-10 ~ 120°C)
  •          Sterilization temperature: 302°F (150°C, Max. 20 min)
  •          Pneumatic connection: G1/8″ (BSP)
  •          End connections: butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF or others upon request.
  •          Finish: <32Ra (<0.8µm); Other finishes available upon request.

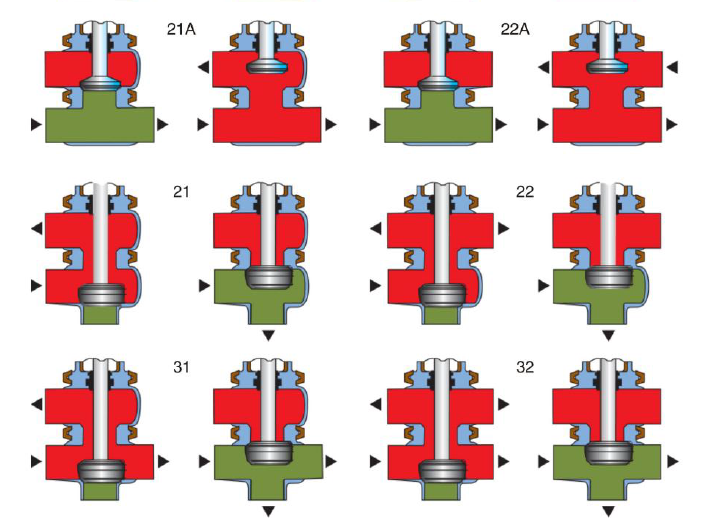

Combination Style:

AV-5PS Sanitary Manual Shutoff And Divert Valves

AV-5PS Sanitary Manual Shutoff And Divert Valves

Technical Parameters

Steel material Product wetted steel parts AISI 316L, AISI 304 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard PTFE All seal materials comply with FDA 21CFR117.2600
Options FPM, Silicone, EPDM
Pressure Working pressure 0 ~ 145psi (0 ~ 10bar)
Supply pressure for air actuator 5 ~ 7bar (70 ~ 102psi)
Temperature Working temperature -20 ~ 350°F (PTFE)
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Matte
Connection End connections: threaded, BSP / BSTP / NPT, clamp, flange or other upon request.
Pneumatic head Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
