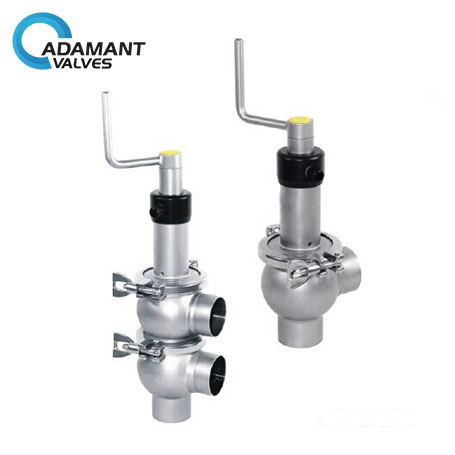

AV-5MS Sanitary Manual Shutoff And Divert Valves

Availability : In stock

Materials
Materials: AISI-316L, AISI 304

Size: 1”-4”

Seal: PTFE

Options: Silicone, EPDM, Viton

Elastomers: EPDM

Options: Viton, Silicone

Other seals: EPDM  all seals complying with FDA21CFR177.2600

Application
AV-5MS series has versatility and hygienic qualities. In terms of versatility, both manual valves can be configured as a shut-off valve with two or three ports or as a change over valve with three to five ports. In addition, the manual operated valve can easily be converted to a pneumatic operated valve by replacing the crank mechanism with a actuator.

Since these valves are not operated by compressed air, they have even fewer moving and spare parts. This reduces the cost of ownership further and simplifies maintenance.

Materials
Materials: AISI-316L, AISI 304
Size: 1”-4”

Seal: PTFE

Options: Silicone, EPDM, Viton

Elastomers: EPDM

Options: Viton, Silicone

Other seals: EPDM  all seals complying with FDA21CFR177.2600

Standard Design

  •          forged spherical body
  •          Compact design
  •          360 degree orientation
  •          Mix-proof design, the bodies can be with different diameters.
  •          Over-pressure protection design preventing the pressure fluctuate to 30bar
  •          Easy disassembly
  •          Seat lift type and cavity spray type available

Technical Specification

  •          Size available: DN25-1″ to DN100-4″
  •          Max. working pressure: 145psi (10bar)
  •          Control air pressure: 70 ~ 102psi (5 ~ 7bar)
  •          Working temperature range: EPDM: 14 ~ 248°F (-10 ~ 120°C)
  •          Sterilization temperature: 302°F (150°C, Max. 20 min)
  •          End connections: butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF or others upon request.
  •          Finish: <32Ra (<0.8µm); Other finishes available upon request.

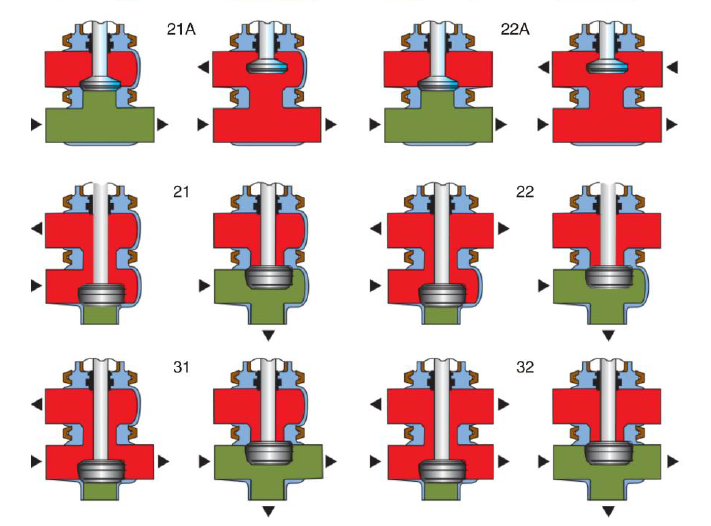

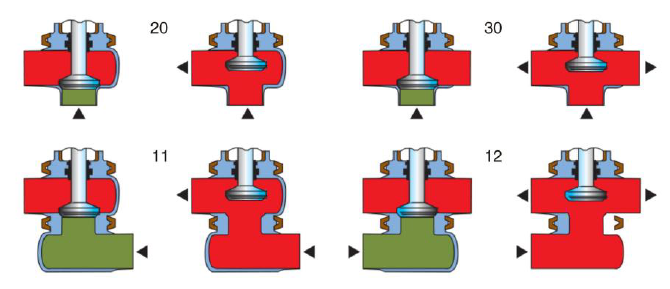

Combination Style:

AV-5MS Sanitary Manual Shutoff And Divert Valves

AV-5MS Sanitary Manual Shutoff And Divert Valves

Technical Parameters

Steel material Product wetted steel parts AISI 316L, AISI 304 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard PTFE All seal materials comply with FDA 21CFR177.2600
Options FPM, Silicone, EPDM
Pressure Working pressure 0 ~ 145psi (0 ~ 10bar)
Supply pressure for air actuator 5 ~ 7bar (70 ~ 102psi)
Temperature Working temperature -20 ~ 350°F (PTFE)
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Matte
Connection End connections: threaded, BSP / BSTP / NPT, clamp, flange or other upon request.
