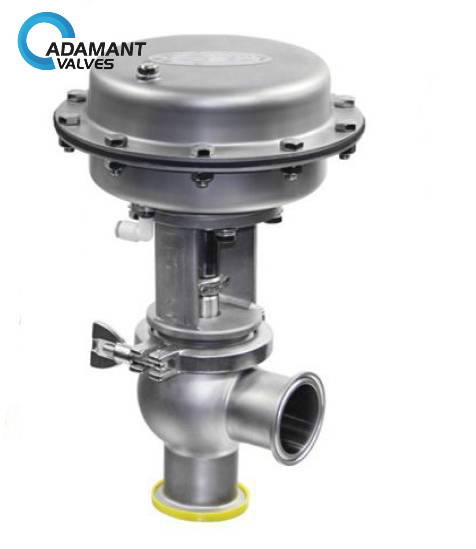

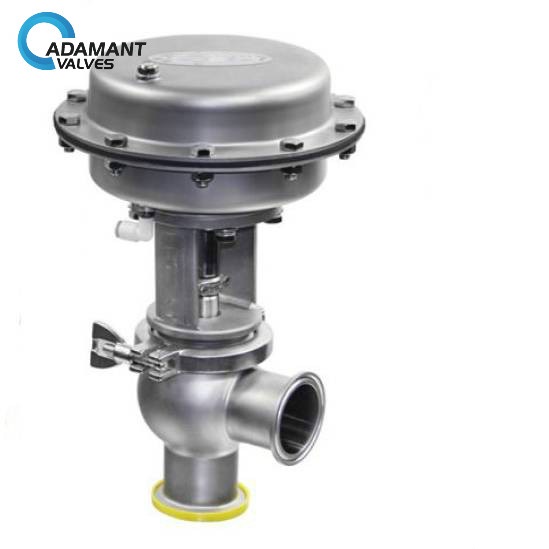

AV-5SPT Sanitary 2-way Pneumatic Divert Seat Valve with Tri-Clamp End

Availability : In stock

Specifications:

Size 2”-6”, DN50-DN150
Working temperature -10 °C-130 °C
Working pressure 10 bar, 20 bar
Body material 316L/304
Sealing material End connections can be butt-welded, sanitary clamp, threaded, or others upon request.
Connection Welded, tri-clamp, threaded or others upon request
Certificate FDA,CE
SKU: AV-5SPT Category:

Pneumatic Divert Seat Valve Description:

Pneumatic Divert Seat Valve has all functions and features of the directional valve. It can undergo higher pressure and resist a water hammer. The valve can be installed with a positioner for automatic flow adjustment.

Pneumatic Divert Seat Valve

Pneumatic Divert Seat Valve Specifications:

Size 2”-6”, DN50-DN150
Working temperature -10 °C-130 °C
Working pressure 10 bar, 20 bar
Body material 316L/304
Sealing material End connections can be butt-welded, sanitary clamp, threaded, or others upon request.
Connection Welded, tri-clamp, threaded or others upon request
Certificate FDA, CE

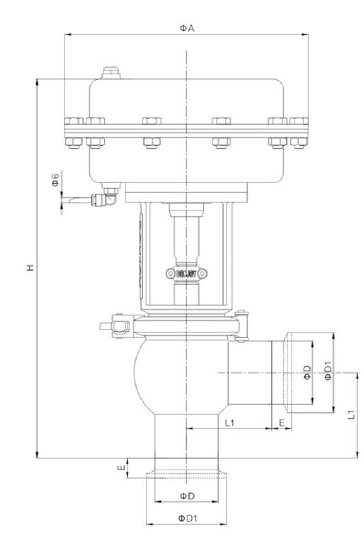

Sanitary 2-way Pneumatic Divert Seat Valve with Tri-Clamp End

Size D D1 L1 A E H H1
DN50 5.2 64 70 200 12.7 310 401
DN65 70 91 99 286 12.7 391 507
DN80 85 106 99 12.7 391 507
DN100 104 119 114 15.8 443 560

Options:

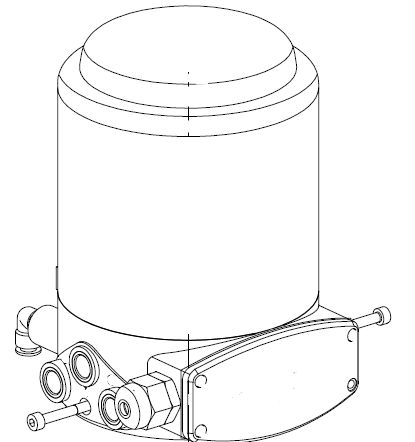

Pneumatic actuator C-Top No.: AV-11H-G

  • C-Top is a control unit of pneumatic actuator especially designed to give optimum control over the valves. The signal is collected from PLC or other automatic control signal and then C-Top turns the valve on or off.
  • C-Top is usually installed on other pneumatic actuators to implement its functions.

Sanitary 2-way Pneumatic Divert Seat Valve with Tri-Clamp End-3

Pneumatic Divert Seat Valve Applications:

Our sanitary 2-way pneumatic divert seat valves are widely used in food, beverage, dairy, biotech, and pharmacy industries.
