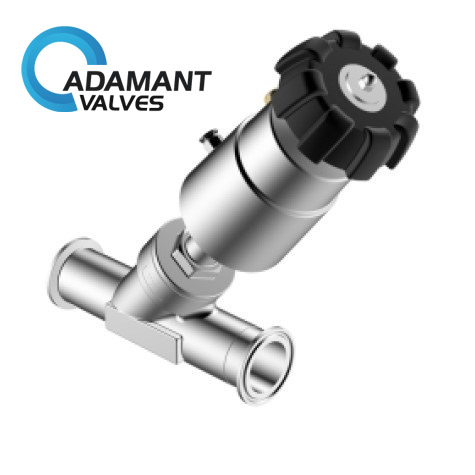

AV-5TS Sanitary Titanium Manual Pneumatic Angle Seat Valve J06
Availability :
In stock
| Size | DN10-DN100 |
| Working temperature | -30 to 120℃ |
| Working pressure | vacuum to 8 bar |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Clamp, thread, flange, BSP, BSP, NPT, DIN |
Sanitary Titanium Manual Pneumatic Angle Seat Valve J06 Description
Sanitary Titanium Manual Pneumatic Angle Seat Valve J06 is a general switch in the automatic control system which features water hammer protection, noise-free, and reliable sealing performance.
Sanitary Titanium Manual Pneumatic Angle Seat Valve J06 Specifications
| Size | DN10-DN100 |
| Working temperature | -30 to 120℃ |
| Working pressure | vacuum to 8 bar |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Clamp, thread, flange, BSP, BSP, NPT, DIN |
Sanitary Titanium Manual Pneumatic Angle Seat Valve J06 Applications
Sanitary Titanium Manual Pneumatic Angle Seat Valve J06 is a general switch in the automatic control system.
