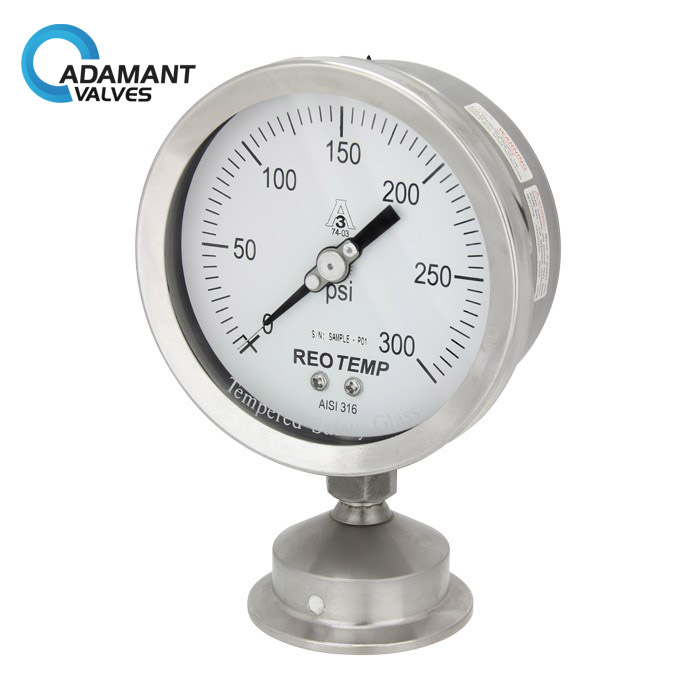

AV-13PG Sanitary Pressure Gauge

Availability : In stock

Body: 316SS
Internal Parts: 316SS
Wetted Surface Finish: 18-24 Ra

Features:

Quick Connect Tri-Clamp® Design
Fast Removal and Installation of Instruments, to Allow Flushing or Changing the Process Media
Ideal for Clean-in-Place, or Equipment Washdown
Exceeds 3-A Sanitary Standards
Comes Standard with 3-A Certification
All Welded 316SS Tube, Socket, Seal, and Diaphragm
ASME B40.100 Design

Sanitary Pressure Gauge Description

Sanitary Pressure Gauges are specially designed to exceed the demanding safety requirements of the food, dairy, beverage, pharmaceutical, and biotech applications.

Sanitary Pressure Gauge Specifications

Accuracy (1″ & Larger Tri-Clamp)	±1.5% for 100 psi and Above ±2% for Vacuum, Compound and <100 psi
Accuracy (3/4″ Tri- Clamp)	±2.5% Upscale ±4% Downscale
Ambient Limits	-40°F/150°F* (-40°F/250°F* with Dry Case and Polysulfone Lens with Weep Hole)
Process Limits	-40°F/400°F* (-110°F/750°F* Available with Cooling Tower or Capillary)
Wetted Materials	Body: 316SS Internal Parts: 316SS Wetted Surface Finish: 18-24 Ra
Lens	Plastic (Standard), Laminated Safety Glass, Tempered Safety Glass or Polysulfone
Other Materials	Case: 304SS Dial: White Aluminum, Black Letters
Fillable	Yes, All Models Except SG20
Maximum Working Pressure	Stable = 100% Momentary = 130% of scale
Environmental Protection	NEMA 4X/IP65

Sanitary Pressure Gauge Applications

Sanitary Pressure Gauges are specially designed to exceed the demanding safety requirements of food, dairy, beverage, pharmaceutical, and biotech applications.

Our Sanitary Pressure Gauges are best suited for the Food/Beverage & Pharmaceutical industry.
