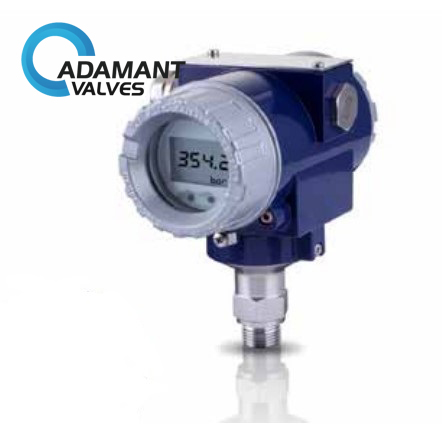

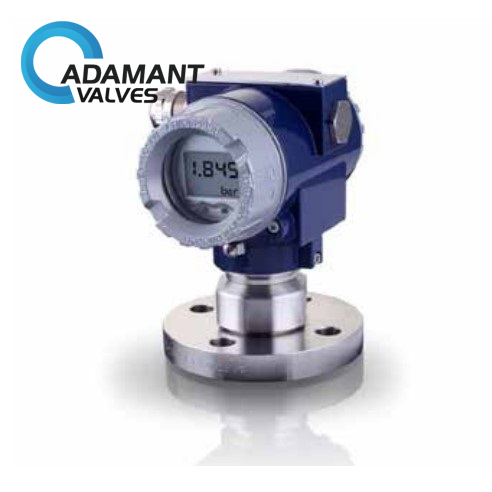

AV-13XMP XMP Pressure Transmitter

Availability : In stock

Material of Sensor: Stainless steel, Ceramic

Nominal pressure: from 0 … 400 mbar up to 0 … 600 bar

Output Signals:

2-wire: 4 … 20 mA

Others on request

Special characteristics:

  • Turn-down 1:10
  • two chamber aluminum die cast case or stainless field housing
  • internal or flush welded diaphragm
  • HART®-communication
  • Explosion protection intrinsic safety (ia)

Category: Sanitary Pressure Transmitter

SKU: AV-13XMP Category:

XMP Pressure Transmitter Description

XMP series Pressure Transmitter has been specially designed for the process industry as well as the food and pharmaceutical industry (version stainless steel field housing) and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids up to 600 bar. Different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures up to 300 °C. The transmitter is as a standard equipped with HART®-communication; the customer can choose between an aluminum die-cast case or a stainless field housing.

XMP Pressure Transmitter Specifications

Materials
Pressure port: Stainless steel 1.4435 (316L)
Housing: aluminum die cast, powder-coated or stainless steel 1.4404 (316L)
Cable gland: brass, nickel plated
Viewing glass: laminated safety glass
Seals (media wetted): thread: standard FKM
options: FFKM (min. permissible temperature from -15℃,possible for nominal pressure ranges PN≤100 bar); others on requestWelded vision for pressure ports EN837 with PN between 1 and 40 bar
Diaphragm standard: stainless steel 1.4435 (316L)
options for process connections:Hastelloy C-276 (2.4819), tantalum (possible from 1 bar) on request
Media wetted parts pressure port, seal, diaphragm



Pressure ranges1
Nominal pressure gauge/abs. 2  [bar] 0.4 1 2 4 10 20 40 100 200 400 600
Overpressure                [bar] 2 5 10 20 40 80 105 210 600 1000 1000
Burst pressure              [bar] 3 7.5 15 25 50 120 210 420 1000 1250 1250
1on customer request we adjust the devices within the tum-down-possibility by software to the required pressure ranges
2absolute pressure possible from 1 bar



Vacuum ranges
Nominal pressure gauge   [bar] -0.4 … 0.4 -1 … 1 -1 … 2 -1 … 4 -1 … 10
Overpressure            [bar] 2 5 10 20 40
Burst pressure           [bar] 3 7.5 15 25 50



Housing designs 3 (dimensions in mm)
aluminum die cast case stainless steel field housing
aluminum die cast case stainless steel field housing
*without display and operating module marked dimensions decrease by 22 mm (with aluminum case)
for nominal pressure PN>400 bar increases the length of devices by 39 mm
3aluminum case is horizontally rotatable as standard

Standard Design

Accuracy according to IEC 60770:

0.1 % FSO



*For more information, please contact us.

XMP Pressure Transmitter Applications

XMP Pressure Transmitter has been specially designed for the process industry as well as the food and pharmaceutical industry (version stainless steel field housing) and measures vacuum, gauge, and absolute pressure ranges of gases, steam, fluids up to 600 bar.
