AV-13M Sanitary Manhole

Availability : In stock

Sanitary Manhole is available in the following 7 types. They are mainly used in a variety of food, wine, beverage, pharmaceutical, and other industrial fields of pressure vessels.

SKU: AV-13M Category:

A Hole Glass Manhole Cover: AV-13M-A

The whole glass manhole is mainly used in a variety of food, wine, beverage, pharmaceutical and other industrial fields of pressure vessels.

  • All glass manhole cover
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • Working pressure: 2-5 bar
  • Size:200 mm, 220 mm, 300 mm, 350 mm, 400 mm, 430 mm, 450 mm, 500 mm, 600 mm
  • Height:100 mm, 120 mm, 150 mm
  • Gasket: EPDM, NBR, Silicon
  • Material: AISI304/316L
  • The number of hand wheel can be adjusted

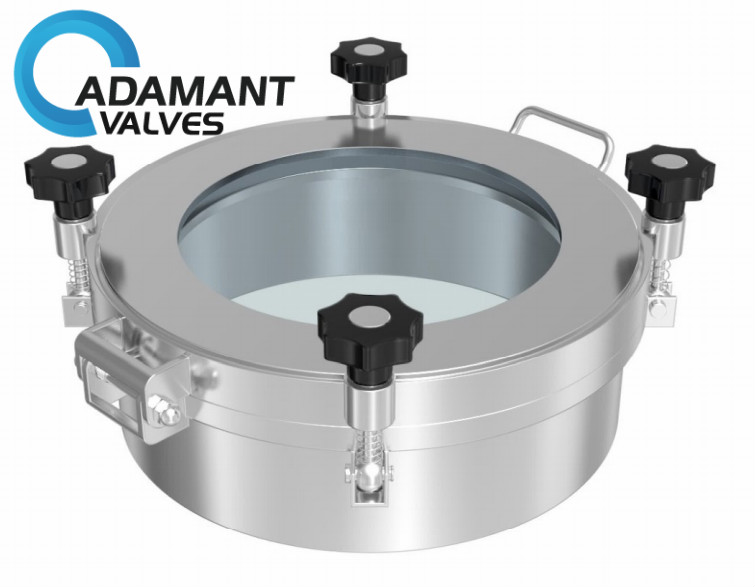

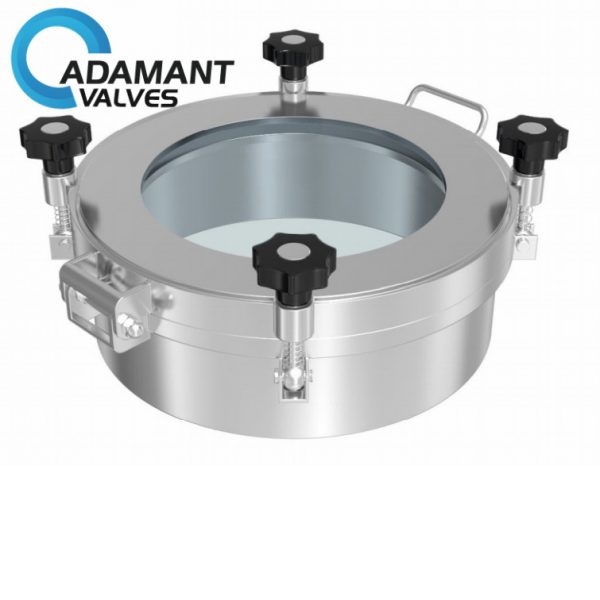

A Hole Glass Manhole Cover

B 316L Manhole Cover: AV-13M-B

The stainless steel manhole cover is mainly used for pressure vessel in the fields of food, wine, beverage, pharmaceutical, etc.

  • Outward opening manhole cover
  • Plastic wheel or stainless steel hand wheel
  • Sight glass with flange
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface: polishing finished and sand-blasting finished
  • Working pressure: 10 bar
  • Size:400 mm, 430 mm, 450 mm, 500 mm, 600 mm, 800 mm, 900 mm
  • Height:100 mm, 120 mm, 150 mm
  • Gasket: EPDM, NBR, Silicon, FPM
  • Material: AISI304/316L
  • The number of hand wheel can be adjusted

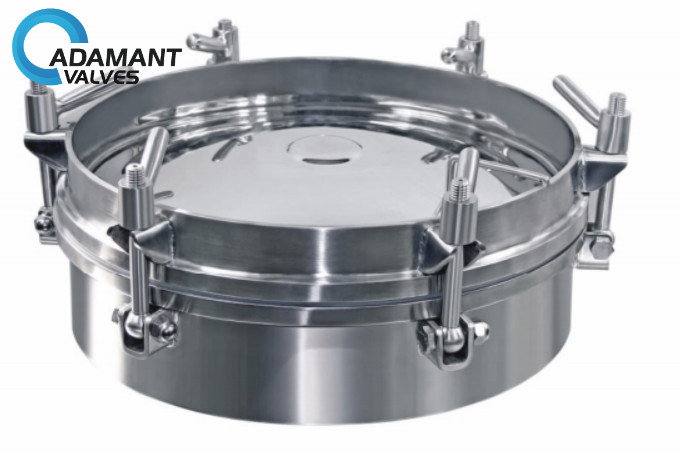

B 316L Manhole Cover

C Pressure manhole with Sight glass: AV-13M-C

The stainless steel manhole cover is mainly used for pressure vessel in the fields of food, wine, beverage, pharmaceutical, etc.

  • Outward opening manhole cover
  • Plastic and wheel or stainless steel hand wheel
  • Sight glass with flange
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface: polishing finished and sand-blasting finished
  • Working pressure: 10 bar
  • Size:400 mm, 430 mm, 450 mm, 500 mm, 600 mm, 800 mm, 900 mm
  • Height:100 mm, 120 mm, 150 mm
  • Gasket: EPDM, NBR, Silicon, FPM
  • Material: AISI304/316L
  • The number of hand wheel can be adjusted

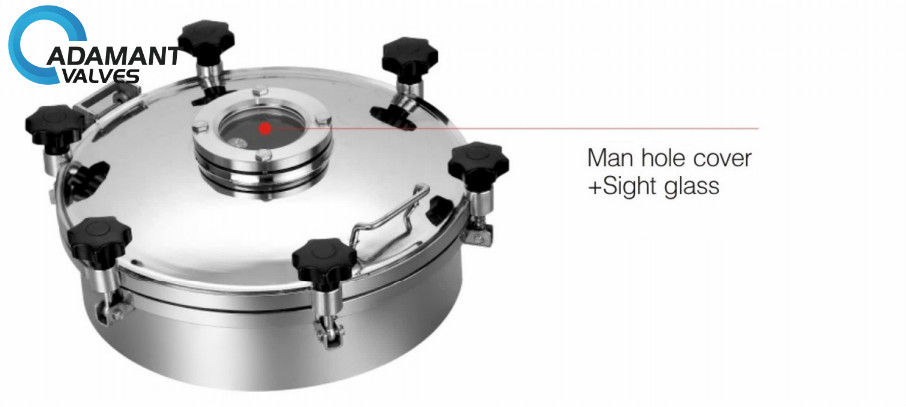

C Pressure manhole with Sight glass

D Pressure Round Manhole: AV-13M-D

The whole glass manhole is mainly used in a variety of food, wine, beverage, pharmaceutical and other industrial fields of pressure vessels.

  • All glass manhole cover
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • Working pressure: 2-5 bar
  • Size:300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 800 mm
  • Height:100 mm, 120 mm, 150 mm
  • Gasket: EPDM, NBR, Silicon
  • Material: AISI304/316L
  • The number of hand wheel can be adjusted

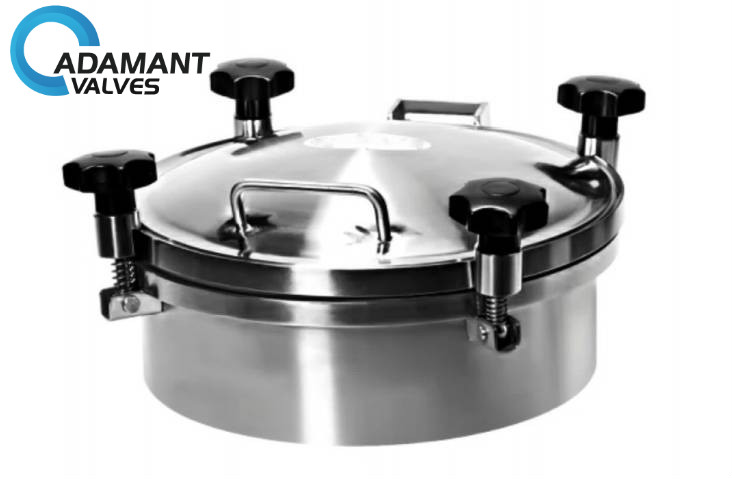

D Pressure Round Manhole

E Round Manhole: AV-13M-E

The whole glass manhole is mainly used in a variety of food, wine, beverage, pharmaceutical and other industrial fields of pressure vessels.

  • Outward opening manhole cover
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • Working pressure: 2-5 bar
  • Size:300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 800 mm
  • Height:100 mm, 120 mm, 150 mm
  • Gasket: EPDM, NBR, Silicon, FPM
  • Material: AISI304/316L

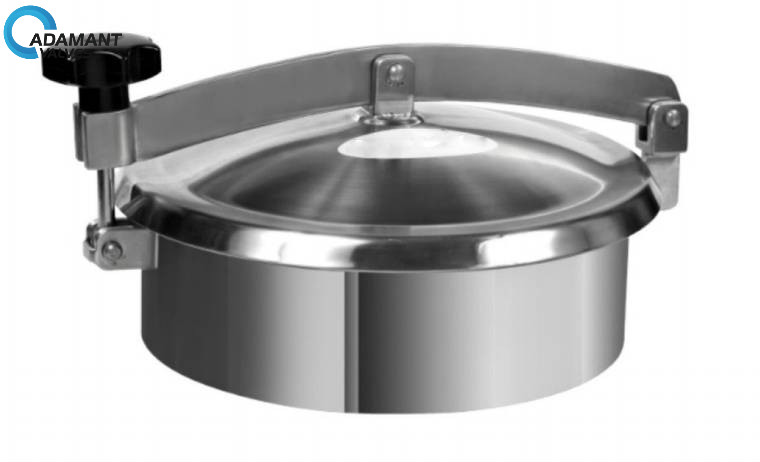

E Round Manhole

F Elliptical Manhole: AV-13M-F

The manhole cover is mainly used for tanks in the fields of food, beverage, chemical, etc.

  • Inward opening manhole cover
  • Spanner handle or wheel handle
  • Size: 435*335 mm, 530*335 mm, 635*525 mm
  • Internal surface treatment: Ra 0.5μm-0.8μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • Working pressure: 0.5-3.0 bar
  • Height:75 mm, 100 mm, 120 mm, 150 mm
  • Material: AISI304/316L

F Elliptical Manhole

G Square Hand Hole: AV-13M-G1

The Square Hand Hole is square-shaped with an open lid, mainly used in food, wine, beverage, pharmaceutical and other industrial tank equipment.

  • Spanner type handle, wheel handle
  • Internal surface treatment: Ra 0.5 μm-0.8 μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • pressure: 0.2-1.0 bar (pressure square hand hole is also available)
  • Gasket: EPDM, NBR, Silicon, FPM
  • Height:65 mm, 80 mm, 100 mm, 120 mm, 150 mm
  • Material: AISI304/316L

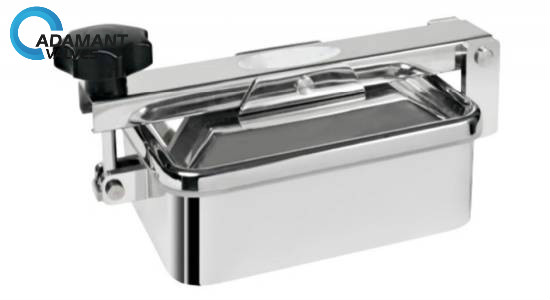

G Square Hand Hole-1

G Square Hand Hole: AV-13M-G2

The Square Hand Hole is square-shaped with an open lid, mainly used in food, wine, beverage, pharmaceutical and other industrial tank equipment.

  • Spanner type handle, wheel handle
  • Internal surface treatment: Ra 0.5 μm-0.8 μm
  • Outside surface treatment: Mirror polish, Satin finish, sanding-blasting finished
  • pressure: 0.2-1.0 bar (pressure square hand hole is also available)
  • Gasket: EPDM, NBR, Silicon, FPM
  • Height:65 mm, 80 mm, 100 mm, 120 mm, 150 mm
  • Material: AISI304/316L

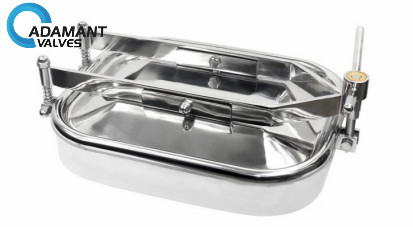

G Square Hand Hole-2
