AV-13EB Extension Brackets

Availability : In stock

Size: 1/4” through 4”

Materials: 304 Stainless Steel, Aluminum

Features:

Economy Open Style, Enclosed Style, Custom Heights, Locking Mechanism, Improved Accessibility, Operator Protection, High Temp Applications, Cryogenic Applications

Standards:

ISO 5211 Mount Pad

SKU: AV-13EB Category:

Extension Brackets Description

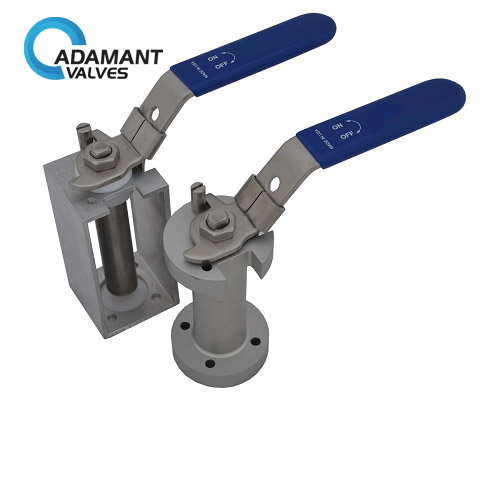

When additional space is required between the valve and operator for safety or insulation, there is a variety of Extension Brackets available in 304SS or aluminum for ball valves. These include open-air brackets that provide fast cooling of heat coming from the valve and closed extension bonnets that allow easy addition of insulation blankets. Both are available in custom heights if required. Close-coupled mounting kits are intended to reduce the overall height of the assemblies. These are designed to have as little as ¾” between the top of the valve and the bottom of the actuator.

Extension Brackets Specifications

Size: 1/4” through 4”

Materials: 304 Stainless Steel, Aluminum

Features:

Economy Open Style, Enclosed Style, Custom Heights, Locking Mechanism, Improved Accessibility, Operator Protection, High Temp Applications, Cryogenic Applications

Standards:

ISO 5211 Mount Pad

Options:

Lever, Locking Lever, Oval, Locking Oval, Extended Height, Close Coupled



Extension Brackets Applications

Extension Brackets are typically used to provide relief protection in low and fixed-flow circuits
