SS-ILC I-line Clamps

Availability : In stock

Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

SKU: SS-ILC Category:

Reference Price: $60 - $463

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Buttweld Fittings

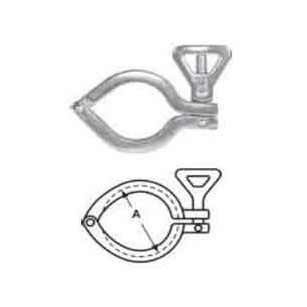

SS13ILC—Heavy Duty I-Line Clamp, 304

Tube OD
(Size)
A SPR @
70° F *
SPR @
250° F *
Part Number
304
1″– 1.5″ 2.122 700 250 SS13ILC-1-1.5-304
2″ 2.654 450 250 SS13ILC-2-304
2.5″ 3.185 450 200 SS13ILC-2.5-304
3″ 3.717 350 150 SS13ILC-3-304
4″ 4.820 200 125 SS13ILC-4-304
6″ 7.689 150 100 SS13ILC-6-304
8″ 9.689 125 75 SS13ILC-8-304
* Tighten Wing Nut to 25 in. lb. of torque

Buttweld Fittings

SS13ILB—Heavy Duty I-Line Bolted Clamp, 304

Tube OD
(Size)
A SPR @
70° F *
SPR @
250° F *
Part Number
304
1″– 1.5″ 2.122 1220 1100 SS13ILB-1-1.5-304
2″ 2.654 900 830 SS13ILB-2-304
2.5″ 3.185 720 660 SS13ILB-2.5-304
3″ 3.717 600 550 SS13ILB-3-304
4″ 4.820 570 525 SS13ILB-4-304
Tighten Nut to 20 ft. lbs. of torque
