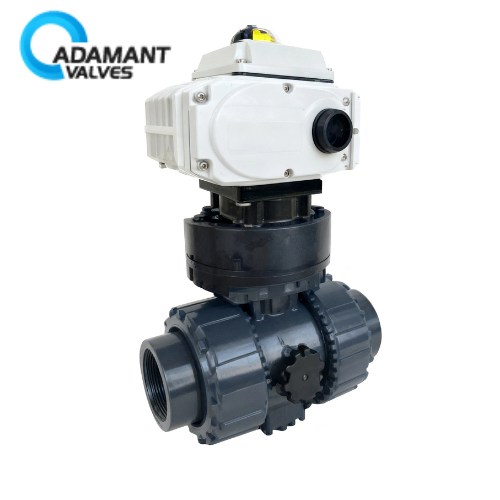

AV-2-S0642 Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (2-1/2 NPT)

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (2-1/2 NPT) Description

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (2-1/2 NPT) control fluid flow in sanitary process environments. This valve addresses requirements in water treatment, pharmaceutical processing, food and beverage handling, and other sanitary applications.

Key Features:
– Actuation and Control: Integrates an electric actuator operating at 110 VAC with an EPS positioner accepting a 4-20mA input to control valve movement.
– Sanitary Material Construction: Utilizes PVC to maintain process hygiene and simplify cleaning procedures in sanitary applications.
– Timed Operation: Completes a 90° cycle in 21 seconds, supporting automated control systems.
– Effective Sealing: Employs Teflon/EPDM seals that maintain integrity under a rated pressure of 232PSI.

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (2-1/2 NPT) Specifications

Specification	Details
Size	2-1/2 NPT
Material	PVC
Pressure	232PSI
Seal Options	Teflon/EPDM
90° Cycle Time	21 s
Voltage	AC 110

The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (2-1/2 NPT) Applications

Food & Beverage: Implements sanitary fluid control during processing and packaging to maintain compliance with hygiene standards.
Water Treatment: Regulates water flow in treatment facilities, ensuring smooth operation of processing equipment.
Pharmaceutical: Supports hygienic fluid management in cleanroom environments by preventing cross-contamination.
Chemical Processing: Controls non-aggressive fluids in processes where sanitary standards are required.
Industrial Processing: Provides precise and repeatable operation in automated industrial sanitary systems.
