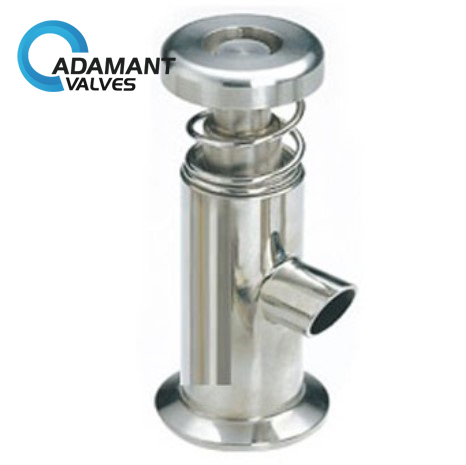

AV-7YS Yogurt Sampling Valves
Availability :
In stock
Material: 316L
Temperature: 130℃
Pressure: 10bar
Yogurt Sampling Valves Description
Yogurt Sampling Valves are used to treat high viscosity materials, such as yogurt, syrup, ice cream, etc. The valve is normally closed design, it will open when pushing the handle. The valve seat opens inside of the tank or other equipment that it can avoid opening by accident due to much pressure in the pipes. The design of completely drainage water is to avoid remains inside the valves.
Yogurt Sampling Valves Specifications
For detailed information, please contact us.
Yogurt Sampling Valves Applications
Yogurt Sampling Valves are used to treat high viscosity materials, such as yogurt, syrup, ice cream, etc.
Related products:
AV-7S Sanitary Sampling Valves, AV-7PA Pneumatic Type Aseptic Sampling Valves, AV-7A Aseptic Sampling Valves
Be the first to review “AV-7YS Yogurt Sampling Valves”
Related Products
AV-7N Sanitary No Retention Sampling Valve
Specifications: Size 1/4”, 3/8”, 1/2”, 3/4”, 1”, 2” Working temperature -10 ° C to 130 ° C Body material AISI 304 AISI 316L Sealing material PTFE Connection clamp, thread, welding, nut type Standards ISO, DIN, SMS, RJT
AV-7P Sanitary Piston Valve
Materials: Stainless Steel 304/316L, Seat Material: Viton, silicon, PTFE Max Working Pressure: 12 bar (174 psi) Special characteristics: Side pipe sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. O-Ring closing system.
AV-7S Sanitary Sampling Valves
Materials Materials: AISI-316L Size: 1/4''-3/4'' Seals: PTFE Gasket: EPDM or NBR Standard Design End connection: threaded, clamp, welded as customers require. Sampling port size available: 1/4", 3/8", 1/2",3/4" Max. working pressure: 10bar Max. working temperature: 248°
AV-7SV Straight Sampling Valves
Working Temperature: -10℃ to -130℃ Body material: AISI 304 AISI 316L Seal material: PTFE Connection: clamp, threaded, welded
AV-7PA Pneumatic Type Aseptic Sampling Valves
Materials: AISI-316L Size: DN8 Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector) Technical Specification Nominal Pressure: Max. product pressure: 87psi (6bar) Temperature: Max. sterilization temperature: 130°C, dry steam: 121°C (2bar). Steam must be dry, because condensed water will damage the diaphragm....
AV-7G Sanitary Gauges
Materials: AISI-316L Size: 1/4''-3/4'' Seals: PTFE Technical Specification End connection: threaded, clamp, welded as customers require. Size available: 1/4", 3/8", 1/2", 3/4" Max. working pressure: 147psi (10bar) Min. working pressure: Applicable under vacuum Working temperature: 14 ~ 248°F (-10 ~ 120°C)
Reviews
